Cross Car Beam - Remove And Replace: Removal

  1. Fully open both front doors.
  2. Move both front seats to their rearmost positions.
  3. Adjust the steering column:
    • Lower the steering column to its lowest position.
    • Fully extend the steering column.
  4. Open the glove box.
  5. Remove the underhood storage unit Underhood Storage Unit (Remove And Replace) .
  6. Remove the defrost mesh grille assembly ASSEMBLY - MESH GRILLE - DEFROST (REMOVE AND REPLACE) .
  7. Remove the center console assembly Center Console Assembly (Remove And Install) .

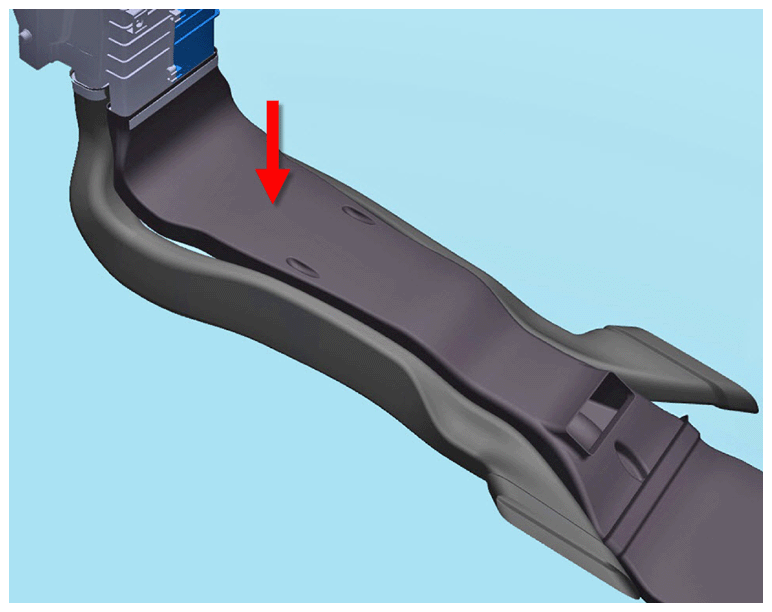

  8. Release the outlet ducts from the front HVAC assembly.
    NOTE: Components have been removed in this graphic to aid clarity.
    G15202104Courtesy of TESLA, INC.

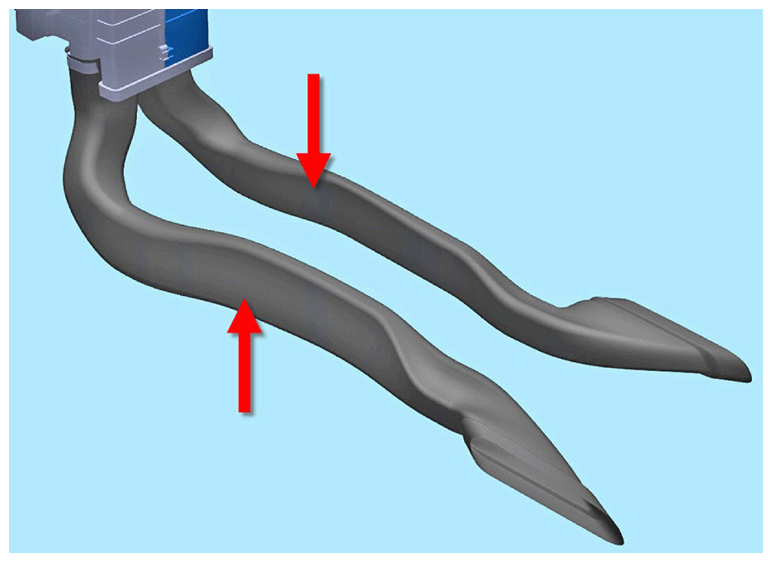

  9. Remove the 2nd row passenger ducts.
    NOTE: Components have been removed in this graphic to aid clarity.
    G15202105Courtesy of TESLA, INC.
  10. Remove the instrument cluster Instrument Cluster (Remove And Replace) .
  11. Remove the MCU Media Control Unit (Remove And Install) .
  12. Remove the passenger's knee air bag Knee Air Bag - Front Passenger's (Remove And Replace) .
  13. Remove the steering column Steering Column (Remove And Replace) .
  14. Remove the screws (x18) that secure the IP carrier to the dash frame (torque 2 N.m).

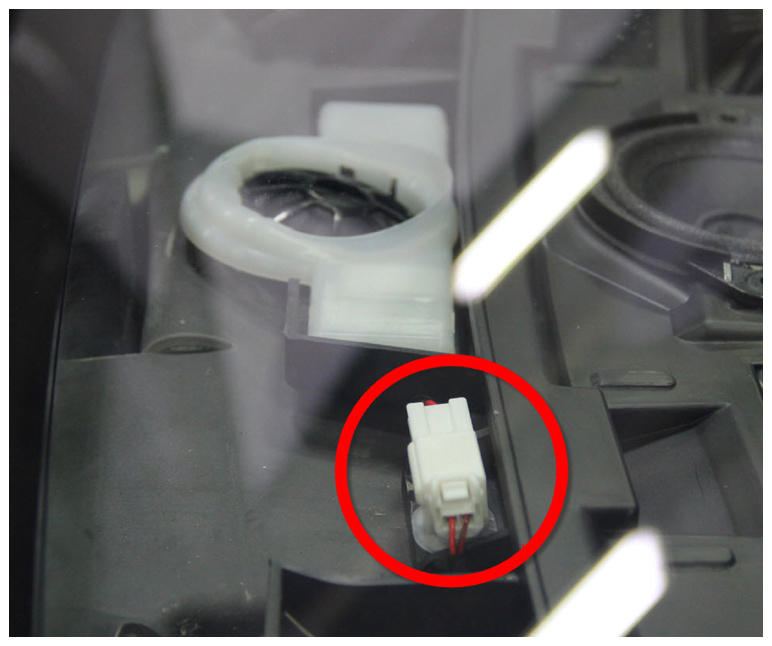

  15. Disconnect the electrical connector from the dash tweeter.
    G15202106Courtesy of TESLA, INC.
  16. Lift the IP carrier up, then release the clip that holds the dash tweeter electrical harness to the IP carrier.
  17. Remove the IP carrier from the vehicle.
  18. Fold back the carpet on the passenger's side footwell.
  19. Remove the passenger false floor from the vehicle.
  20. Disconnect the electrical connectors (x2) from the Driver's Assistance module.
  21. Remove the screws (x4) that secure the Autopilot ECU module (torque 3.5 N.m).
  22. Remove the Autopilot ECU module from the vehicle.

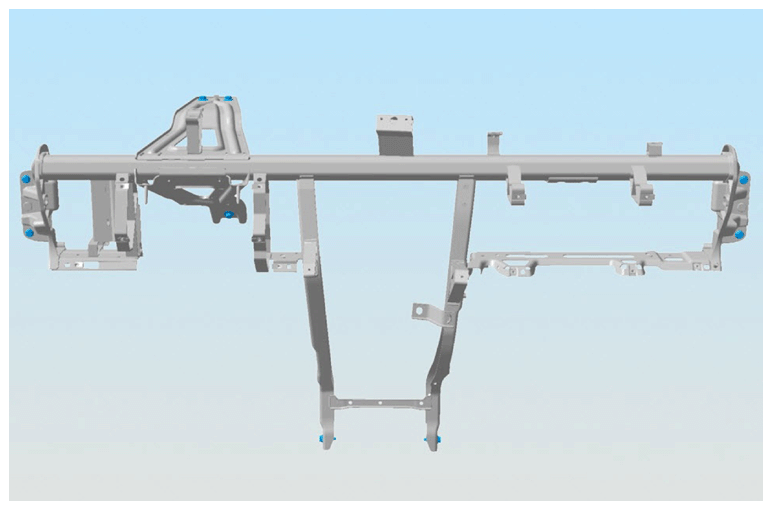

  23. Remove the fasteners that secure the cross car beam to the body of the vehicle (torque 27 N.m).
    G15202107Courtesy of TESLA, INC.
  24. Disconnect all electrical connectors, including those that are connected to the PSRCM, cabin fuse boxes, and body control module (BCM).
  25. Remove the cross car beam from the vehicle.
    NOTE: The pin guide on the Cross Car Beam may get stuck in the A-pillar. Gently move the cross car beam until the guide is centered correctly.
    NOTE: The cross car beam is removed with the electrical harness attached.
