Assembly - Top Pad - Instrument Panel - Remove And Install: Removal

Move the steering wheel to its lowest, most-extended position.
Open both front doors.
Open the glove box.
Disconnect 12V power Disconnect 12V Power .
Remove the LH and RH instrument panel side covers ASSEMBLY - INSTRUMENT PANEL SIDE COVER - LH (REMOVE AND REPLACE) .

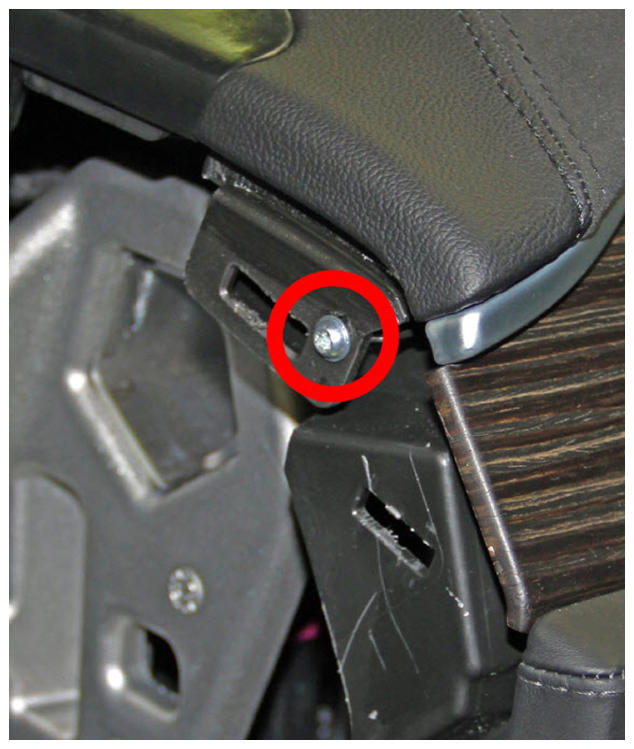

On each side of the vehicle, release the screw that secures the top pad to the IP bracket (torque 1.2 N.m)

Courtesy of TESLA, INC.

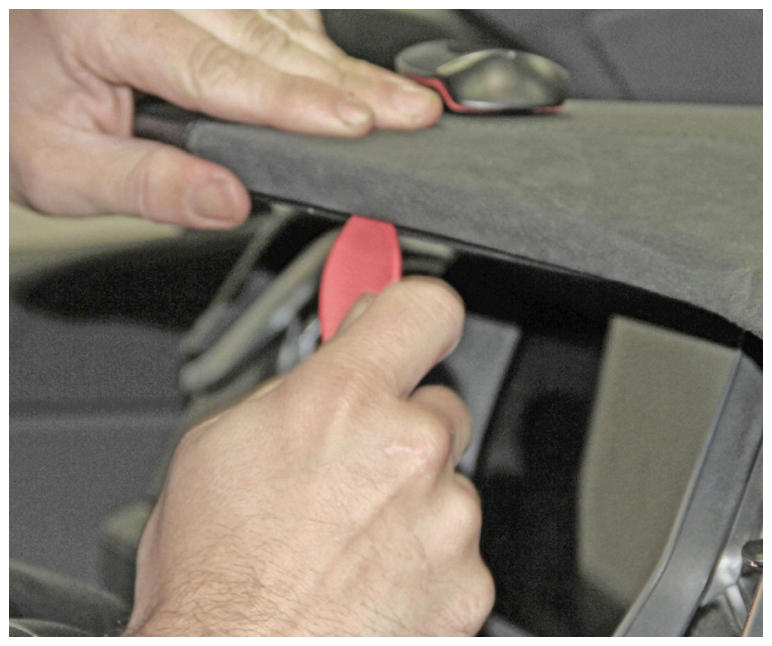

Remove the binnacle cover.

Courtesy of TESLA, INC.

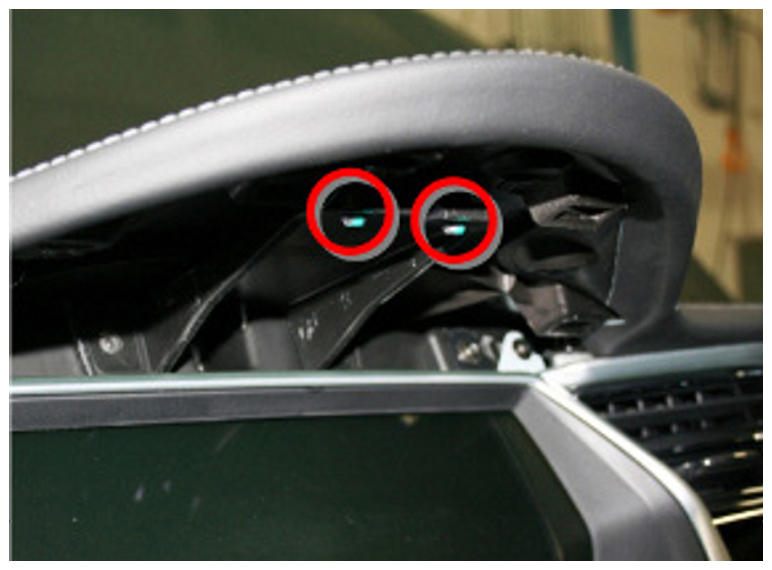

Release the screws (x2) that secure the top pad to the IP carrier (torque 1.2 N.m).

Courtesy of TESLA, INC.
Remove the glove box GLOVE BOX (REMOVE AND REPLACE) .
Wear an ESD wrist strap and ground the strap to the cross car beam.

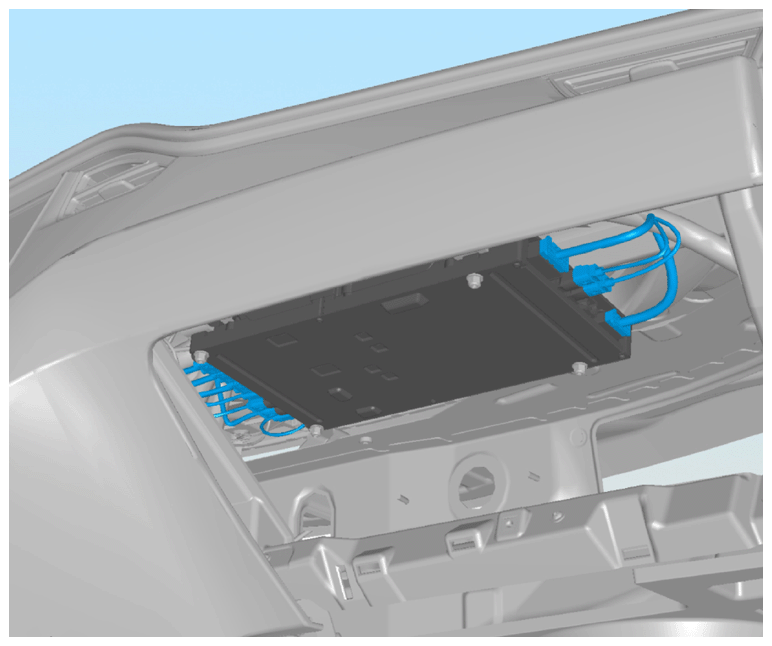

Disconnect the electrical connectors from the Autopilot ECU.

Courtesy of TESLA, INC.

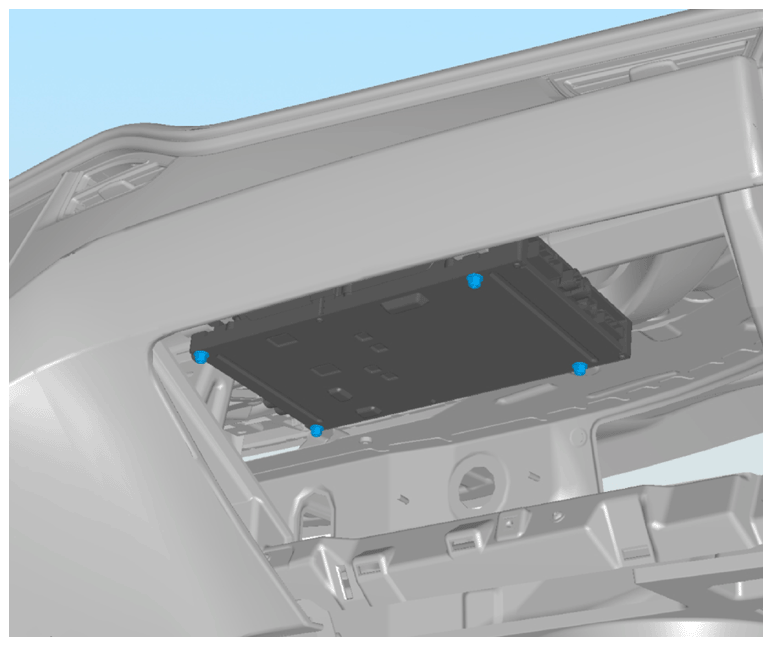

Remove the fasteners that secure the Autopilot ECU to the cross car beam (torque 5 N.m).

Courtesy of TESLA, INC.
Remove the Autopilot ECU from the vehicle.

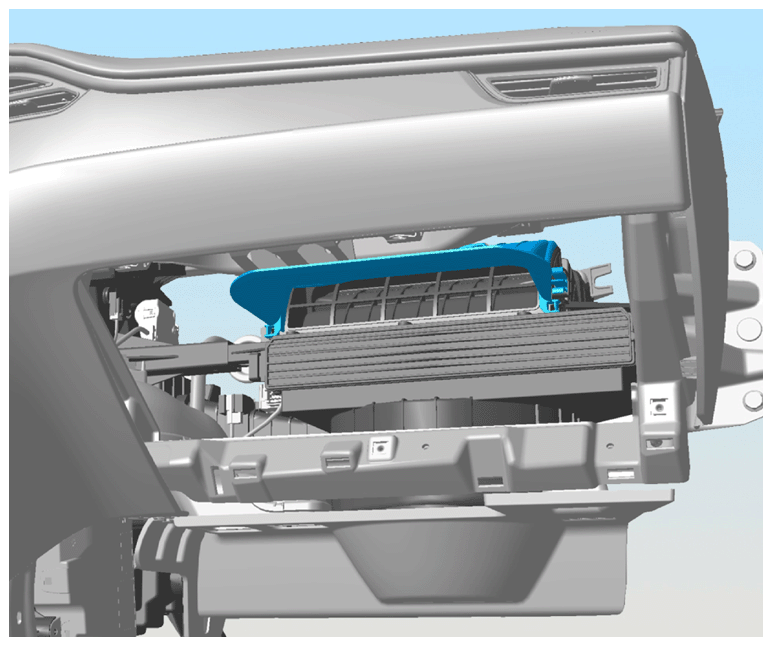

Remove the recirculation NVH hood.

Courtesy of TESLA, INC.

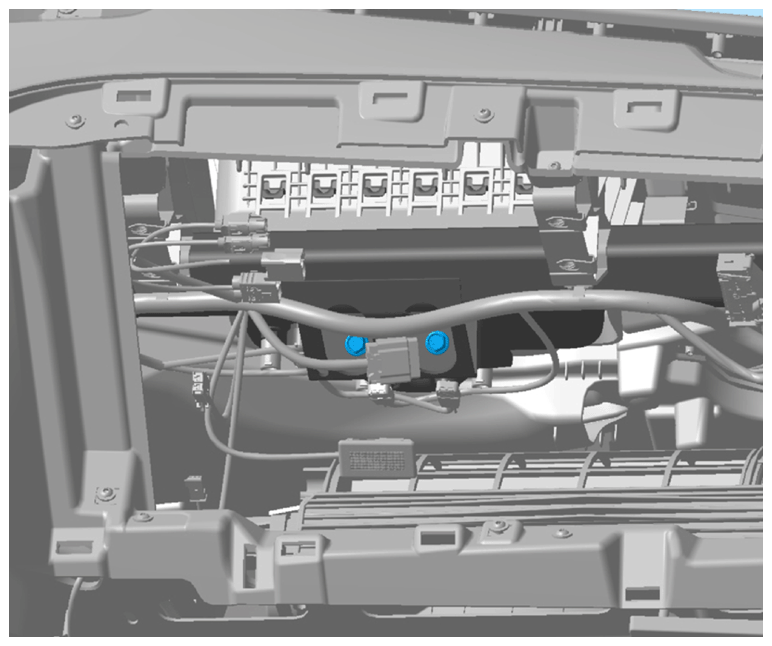

Release the screws (x2) that secure the air bag to the cross car beam (torque 10 N.m).

Courtesy of TESLA, INC.
Disconnect the harnesses (x3) from the airbag.
NOTE: RHD vehicles have only one airbag connector.

Courtesy of TESLA, INC.

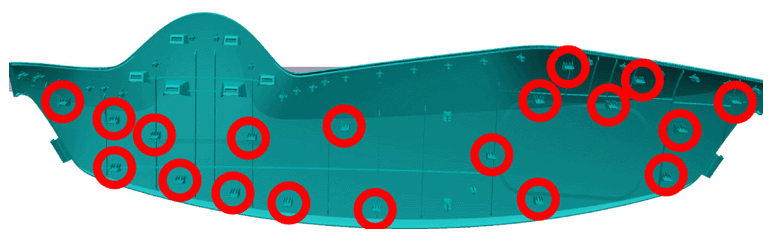

Carefully release the clips (x19) that secure the top pad to the IP carrier, but do not remove the top pad at this time.
CAUTION: Only release 1 clip at a time.

Tip: Use an inflatable wedge to release the clips.

Courtesy of TESLA, INC.

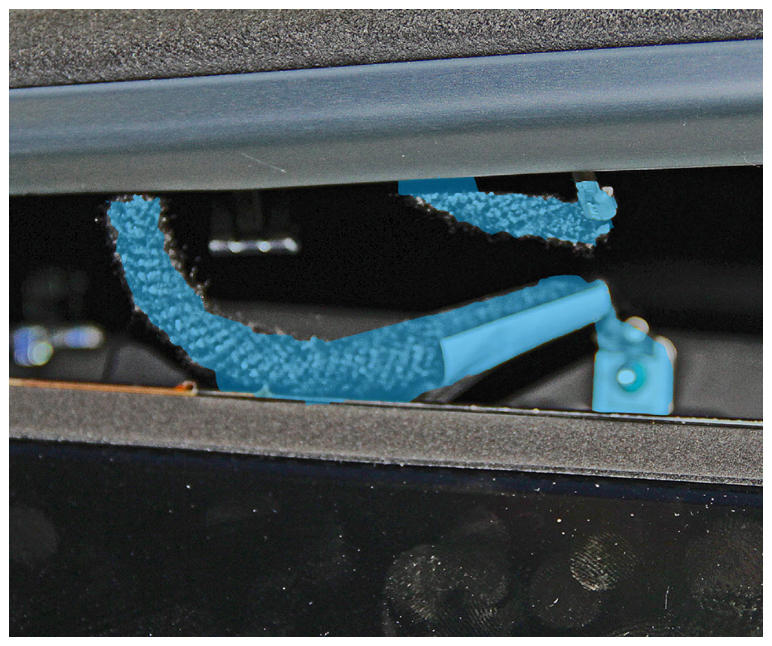

Carefully lift up the top pad. Release the retaining strap that secures the top pad to the MCU. Do not fully remove the top pad at this time.

Courtesy of TESLA, INC.
Release the barrel clips (x2) that secure the airbag harnesses to the airbag.
Remove the top pad and place it on a protected surface.
