Assembly - Instrument Panel Side Cover - LH - Remove And Replace: Removal

  1. Open the front door.
  2. Use a trim tool to release the clips that secure the instrument panel side cover.
    WARNING: Wear cut-resistant gloves when performing this step to avoid personal injury.
    CAUTION: Replace any broken clips.

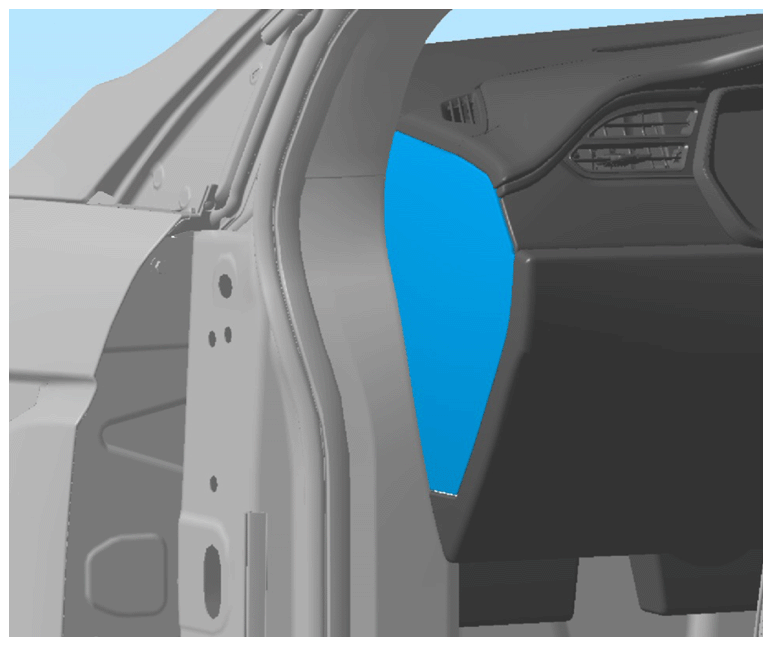

    G15202089Courtesy of TESLA, INC.
  3. Remove the instrument panel side cover from the vehicle.
