Assembly - Instrument Panel Lower - RH - Remove And Replace: Removal

  1. Open the glove box.

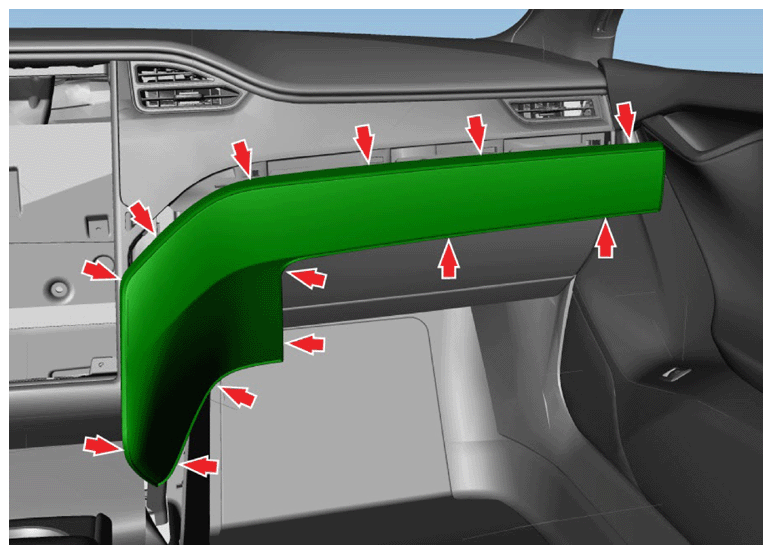

  2. Using a suitable tool, release the clips that secure the trim to the instrument panel.
    CAUTION: Take care not to damage component(s).
    G15202088Courtesy of TESLA, INC.
  3. Remove the RH instrument panel lower assembly from the vehicle.
