Assembly - Cover - Footwell - Driver's (RHD) - Remove and Replace: Installation

  1. Install the driver footwell cover.

    Tip:  Make sure that the datums are aligned.

    G00635415Courtesy of TESLA, INC.
    G00635414Courtesy of TESLA, INC.

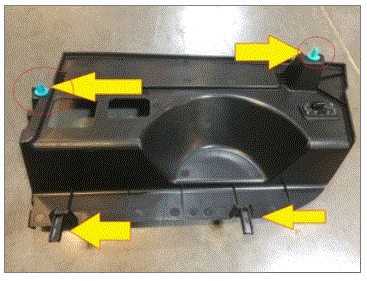

    G00635416Courtesy of TESLA, INC.
  2. Install the RH center console closeout extension.
  3. Install the RH center console side panel.
  4. Install the RH front floor mat.

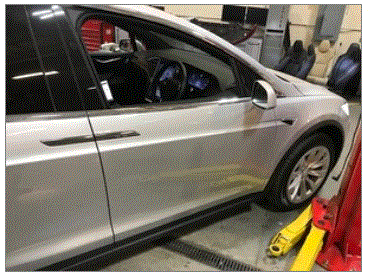

  5. Close the RH front door.
    G00635417Courtesy of TESLA, INC.
