Assembly - Bin - Storage Center Compartment - Remove And Replace: Removal

  1. Release the front clips that secure closeout extension.
  2. Pull down on the center storage compartment to release the clips (x4).
    CAUTION: Take care not to damage component(s).
    CAUTION: Replace any broken clips.

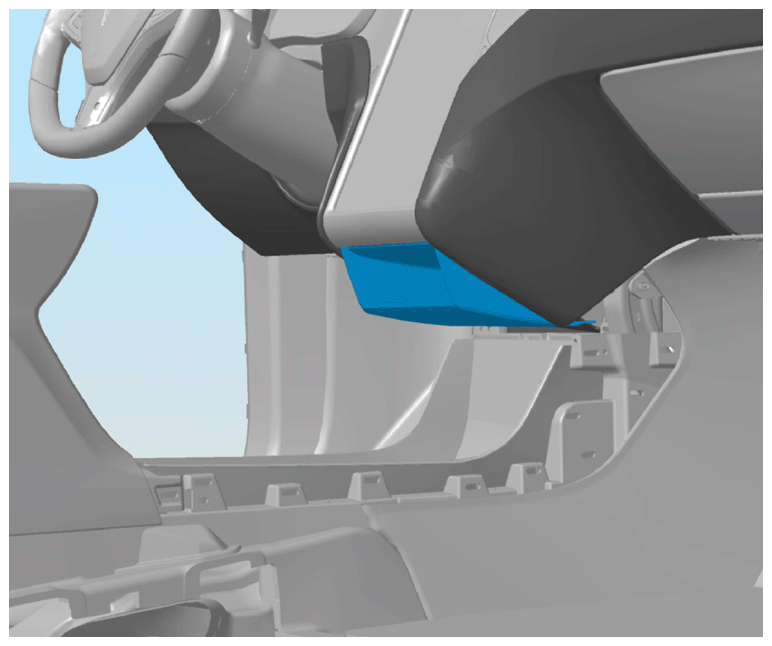

    G15202077Courtesy of TESLA, INC.
  3. Remove the center storage compartment from the vehicle.
