- Remove the rear speaker grille Grille - Speaker - Rear - LH (Remove And Replace)
.
- Remove the rear door trim panel Panel - Door Trim - Rear - LH (Remove And Install)
.

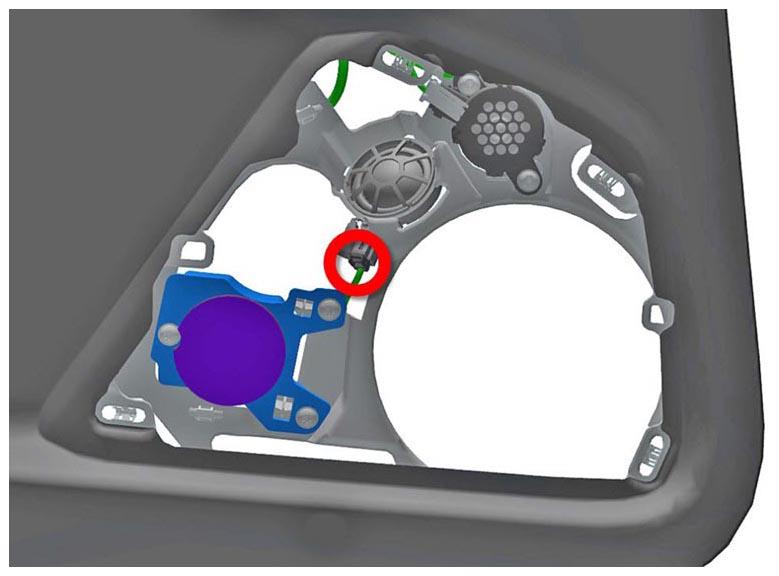

- Disconnect the electrical connector from the bottom of the tweeter.
NOTE:
Components have been removed in this graphic to aid clarity.
 Courtesy of TESLA, INC.
|

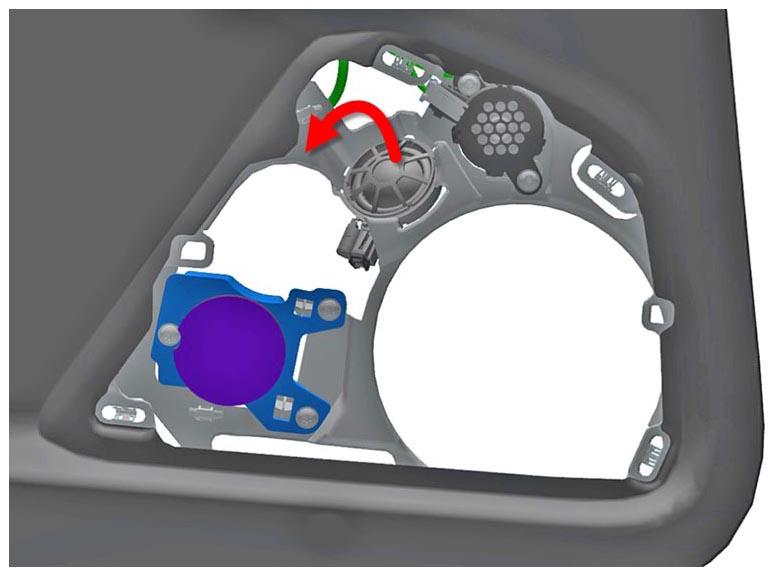

- Gently release the tweeter from the retaining clips and maneuver it out from the door panel.
NOTE:
Components have been removed in this graphic to aid clarity.
 Courtesy of TESLA, INC.
|
- Remove the tweeter from the vehicle.
