Speaker - Front Door - Remove And Replace: Remove

  1. Remove the front door trim panel Panel - Door Trim - Front - LH (Remove And Install) .

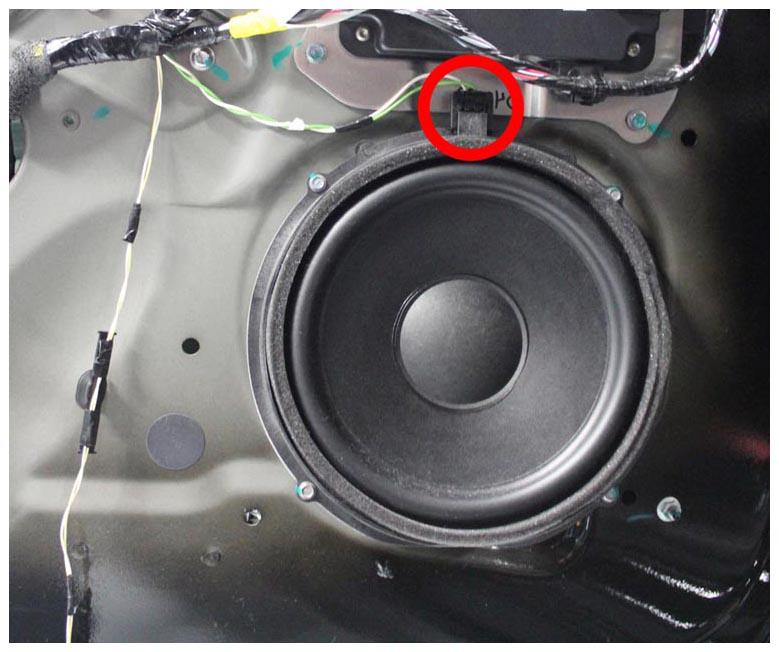

  2. Disconnect the harness connector from the top of the speaker.
    G15206176Courtesy of TESLA, INC.

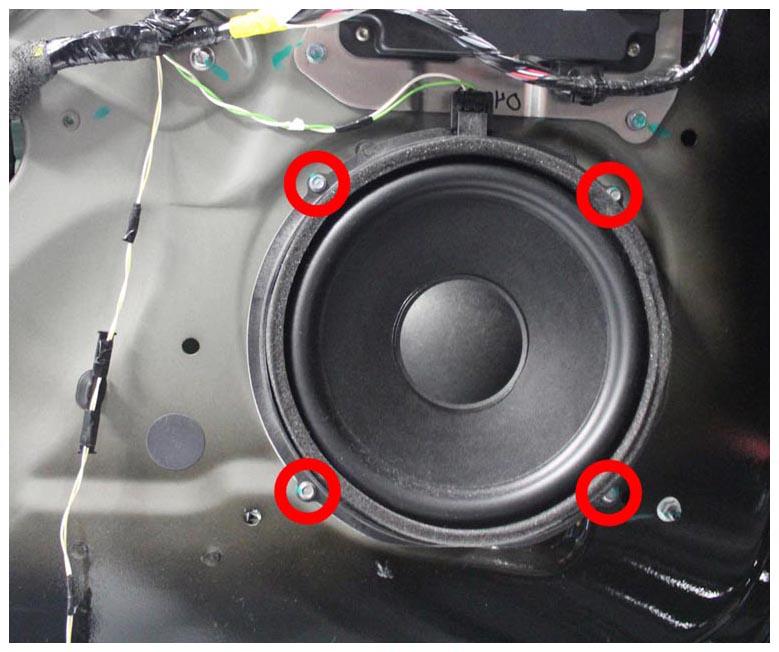

  3. Release the bolts (x4) that secure the speaker to the door (torque 4 N.m).
    G15206177Courtesy of TESLA, INC.
  4. Remove the speaker from the vehicle.
