Speaker - Dash - LH (Premium Only) - Remove And Replace: Remove
- Remove the mesh grille Assembly - Mesh Grille - Defrost (Remove And Replace) .

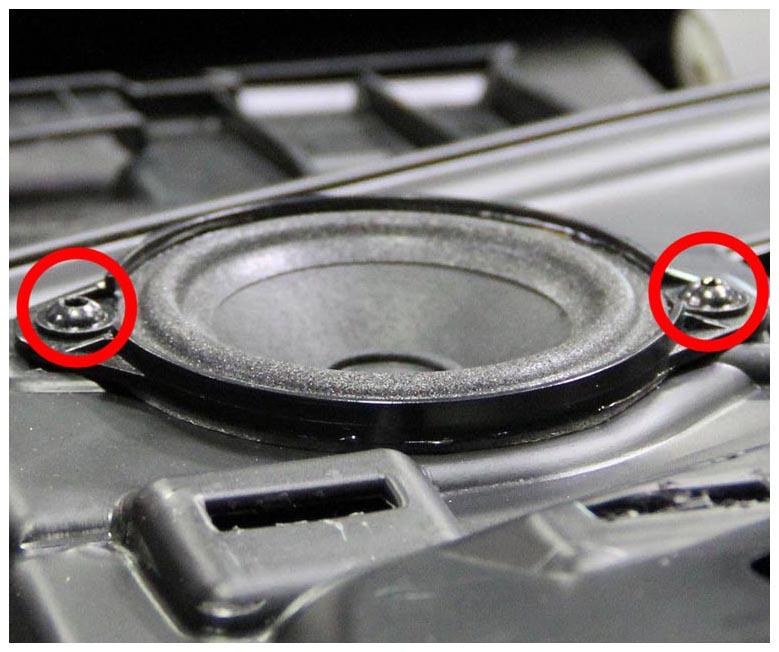

- Release the screws (x2) that secure the center speaker to the IP carrier (torque 2.3 N.m), but do not fully remove the speaker at this time.

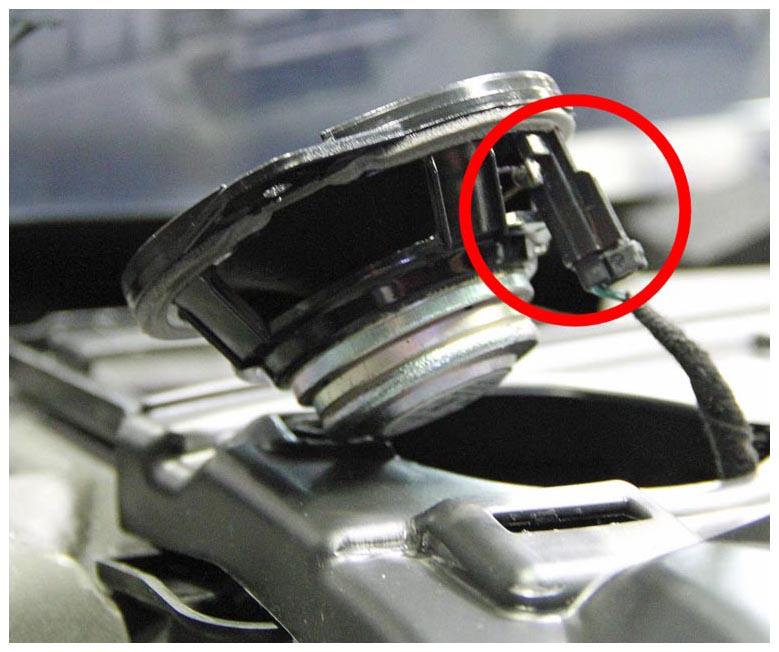

- Gently pull the speaker out of the IP carrier and disconnect the harness.CAUTION: Do not allow the harness to fall into the IP carrier.
- Remove the speaker from the vehicle.
