Speaker - Dash - Center - Remove And Replace: Remove

  1. Remove the mesh grille Assembly - Mesh Grille - Defrost (Remove And Replace) .

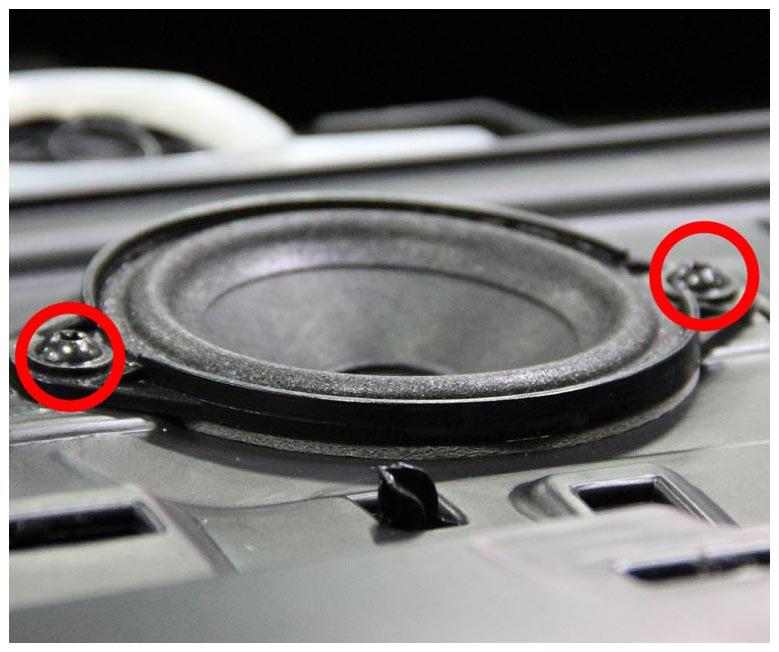

  2. Release the screws (x2) that secure the center speaker to the IP carrier (torque 2.3 N.m), but do not fully remove the speaker at this time.
    G15206172Courtesy of TESLA, INC.

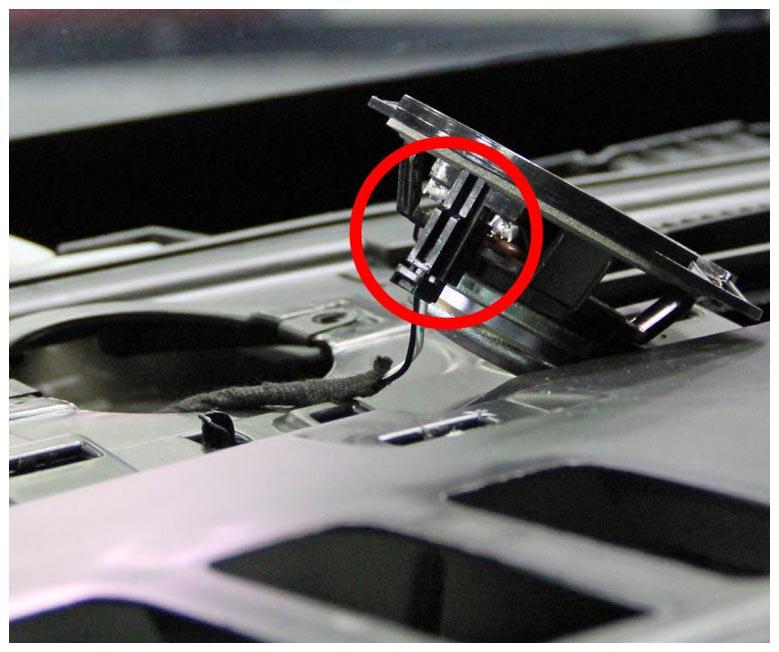

  3. Gently pull the speaker out of the IP carrier and disconnect the harness.
    CAUTION: Do not allow the harness to fall into the IP carrier.
    G15206173Courtesy of TESLA, INC.
  4. Remove the speaker from the vehicle.
