Premium Boost Amplifier - Remove And Replace: Removal

  1. Remove the driver's side lower dash trim Trim - Dash - Driver's Side - Lower (Remove And Replace) .
  2. RHD vehicles:  Remove the accelerator pedal Accelerator (Remove And Replace) .

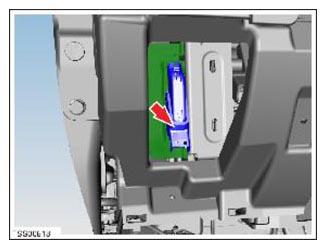

  3. Open the latch and disconnect the electrical connector from the amplifier.
    CAUTION: Take care not to damage component(s).
    G15206166Courtesy of TESLA, INC.
  4. Remove the LH footwell cover Assembly - Cover - Footwell - Driver's (Remove And Replace) .

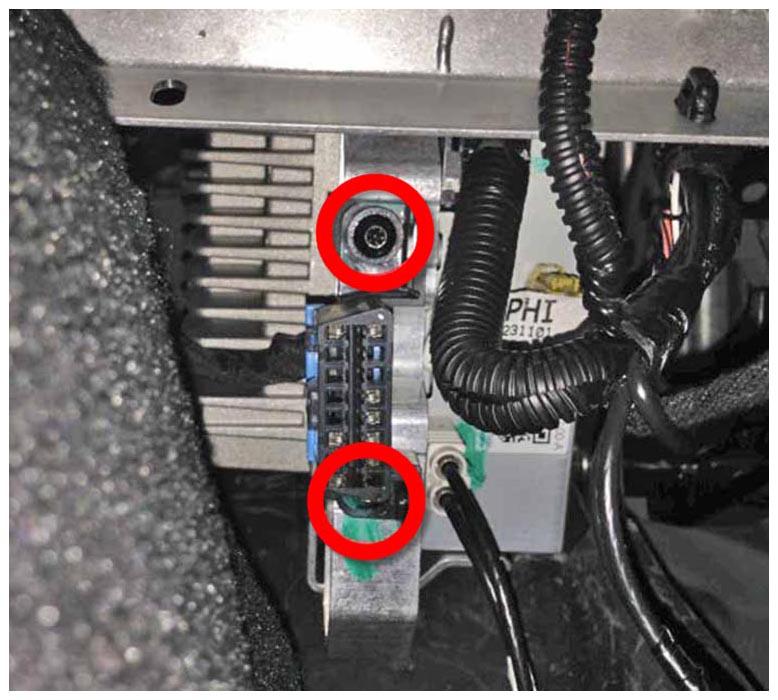

  5. Remove the screws that secure the OBD connector to the amplifier/tuner bracket (torque 4 N.m).
    G15206167Courtesy of TESLA, INC.
  6. Release the OBD connector from the cross car beam and set aside.

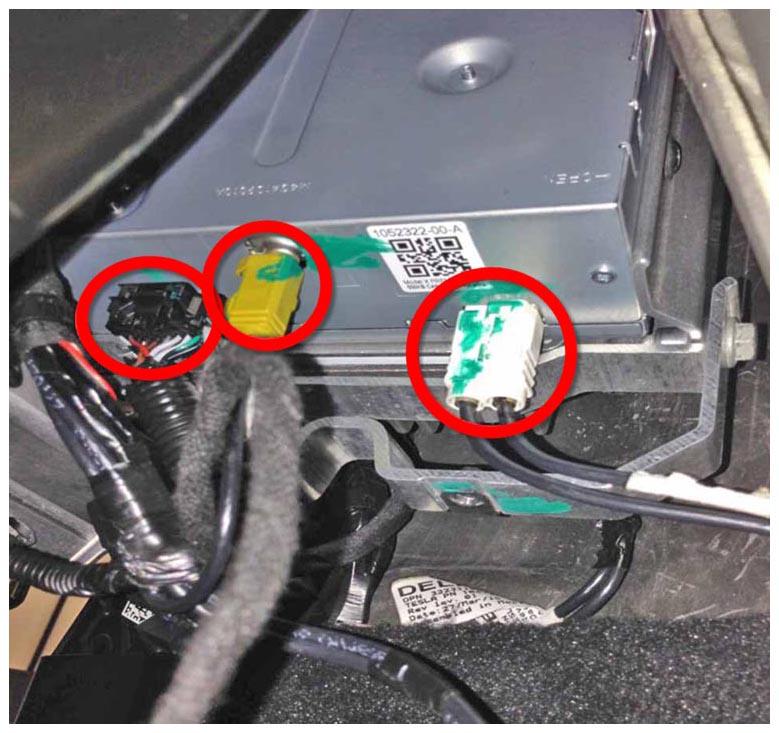

  7. Disconnect the electrical connectors from the AM/FM tuner.
    G15206168Courtesy of TESLA, INC.

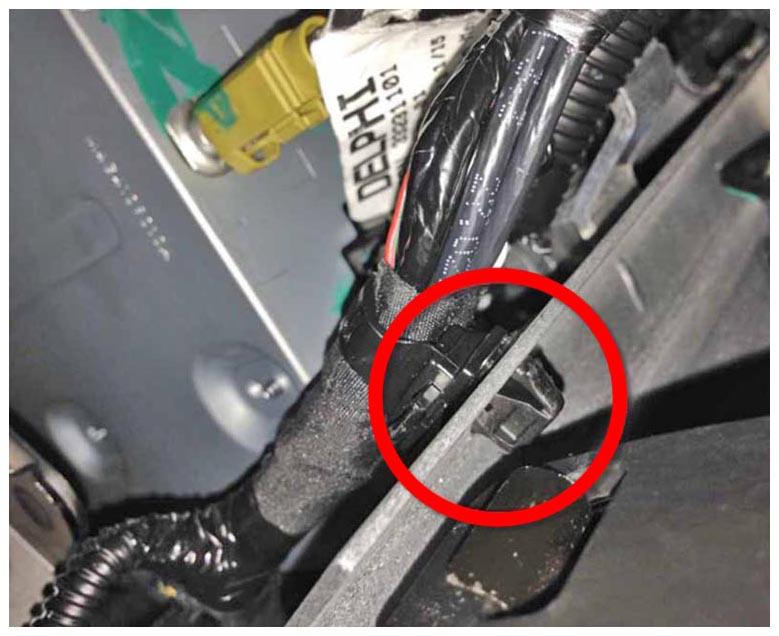

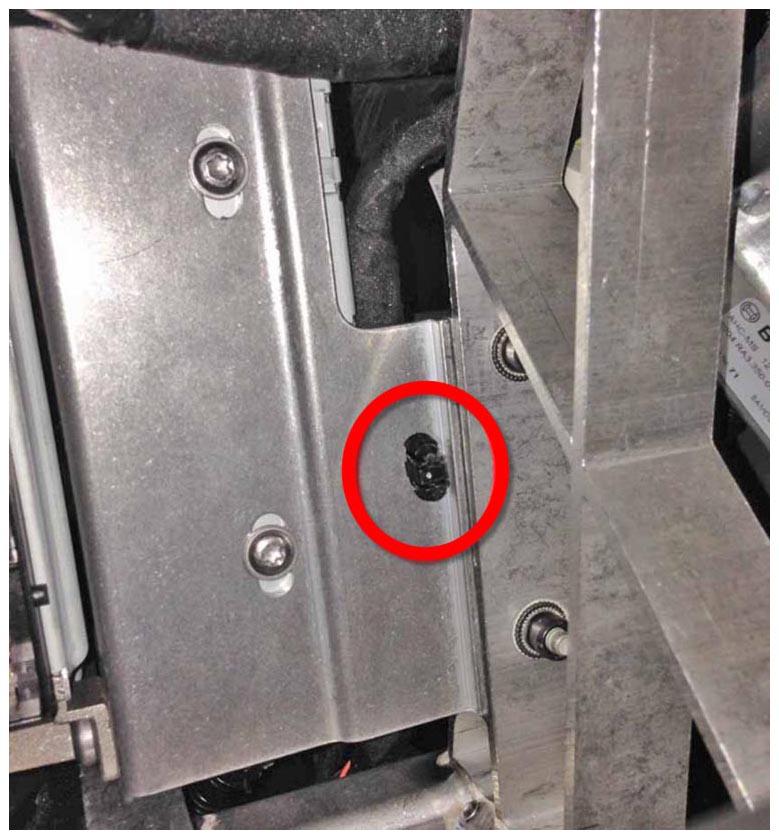

  8. Release the fir tree clips that secure the harnesses to the bracket.
    G15206169Courtesy of TESLA, INC.
    G15206170Courtesy of TESLA, INC.
  9. Remove the bolts that secure the amplifier/tuner and bracket assembly to the cross car beam (torque 6 N.m).

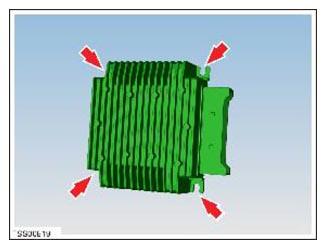

  10. Remove the screws that secure the amplifier to the bracket (torque 4 N.m).
    G15206171Courtesy of TESLA, INC.
  11. Release the amplifier from the bracket.
