Chime - Liftgate - Remove And Replace: Removal

  1. Remove the liftgate speaker grille Grille - Speaker - Liftgate (Remove And Replace) .

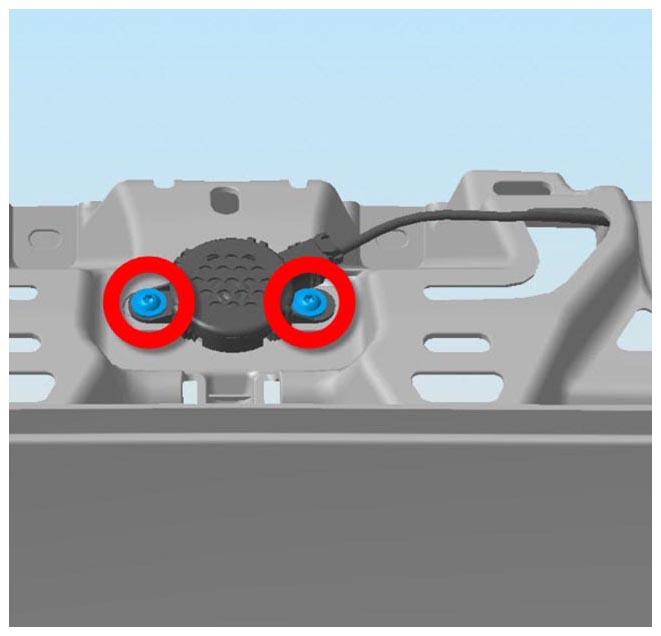

  2. Remove the screws (x2) that secure the liftgate chime to the liftgate (torque 2 N.m).
    NOTE: Components have been removed in this graphic to aid clarity.
    G15206162Courtesy of TESLA, INC.

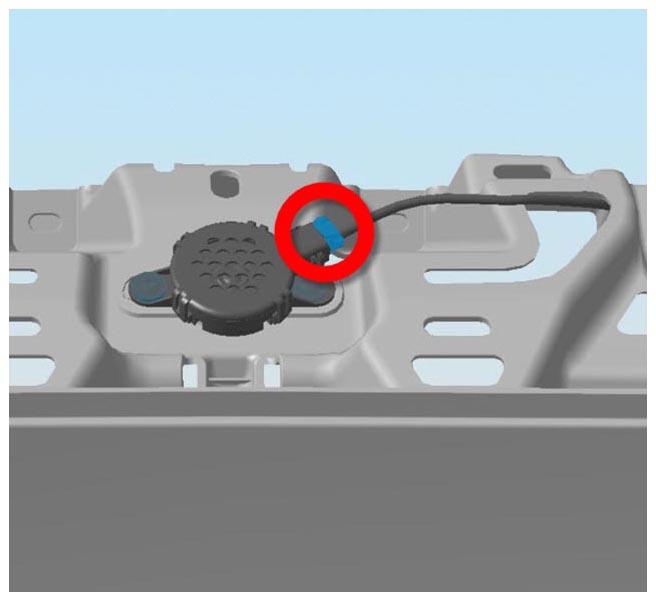

  3. Disconnect the electrical connector from the liftgate chime.
    NOTE: Components have been removed in this graphic to aid clarity.
    G15206163Courtesy of TESLA, INC.
  4. Remove the liftgate chime from the vehicle.
