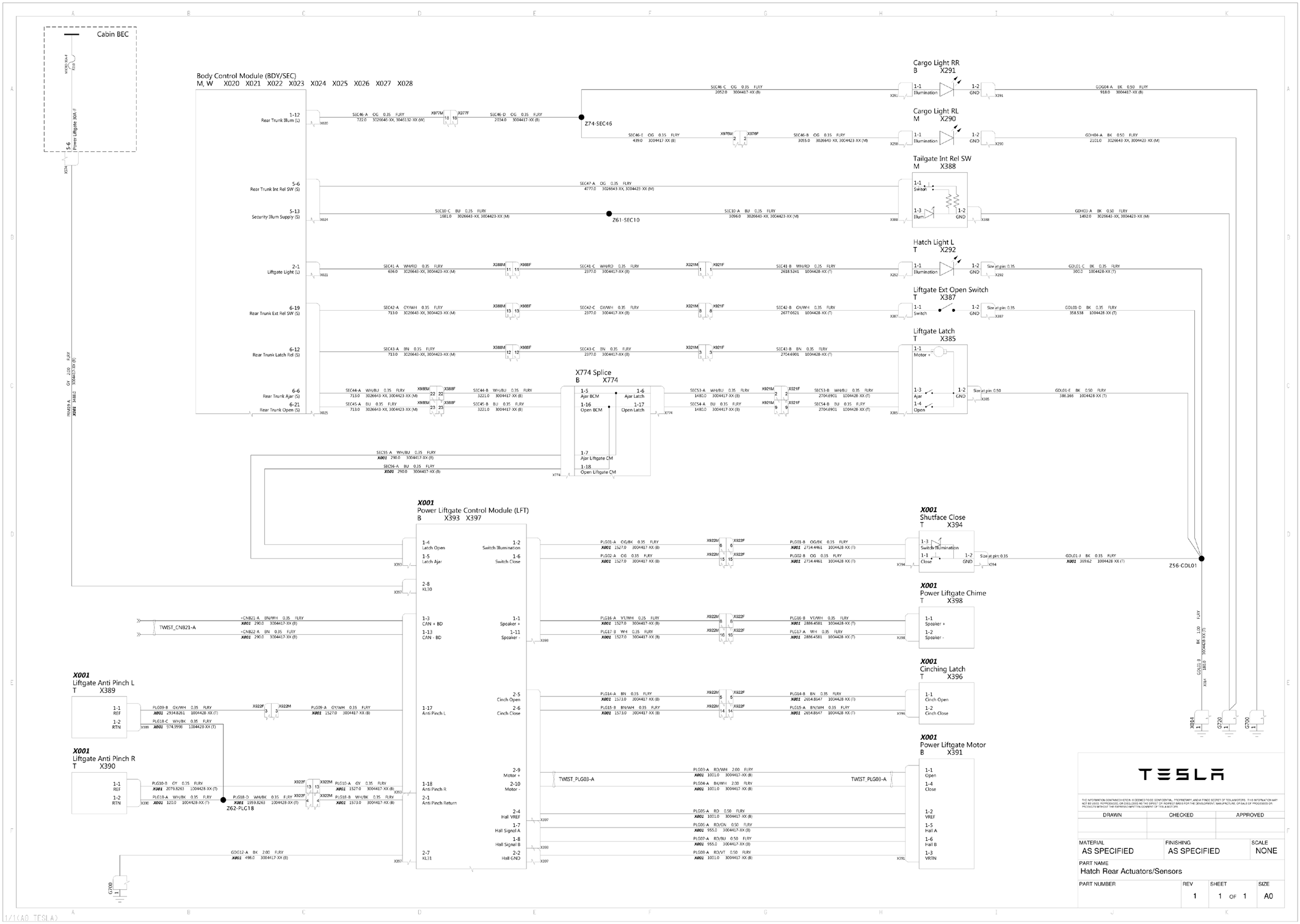

Hatch Rear Actuators/Sensors - Wiring Diagram [3/5/2018 - 2/24/2019]

G15032403Courtesy of TESLA, INC.
