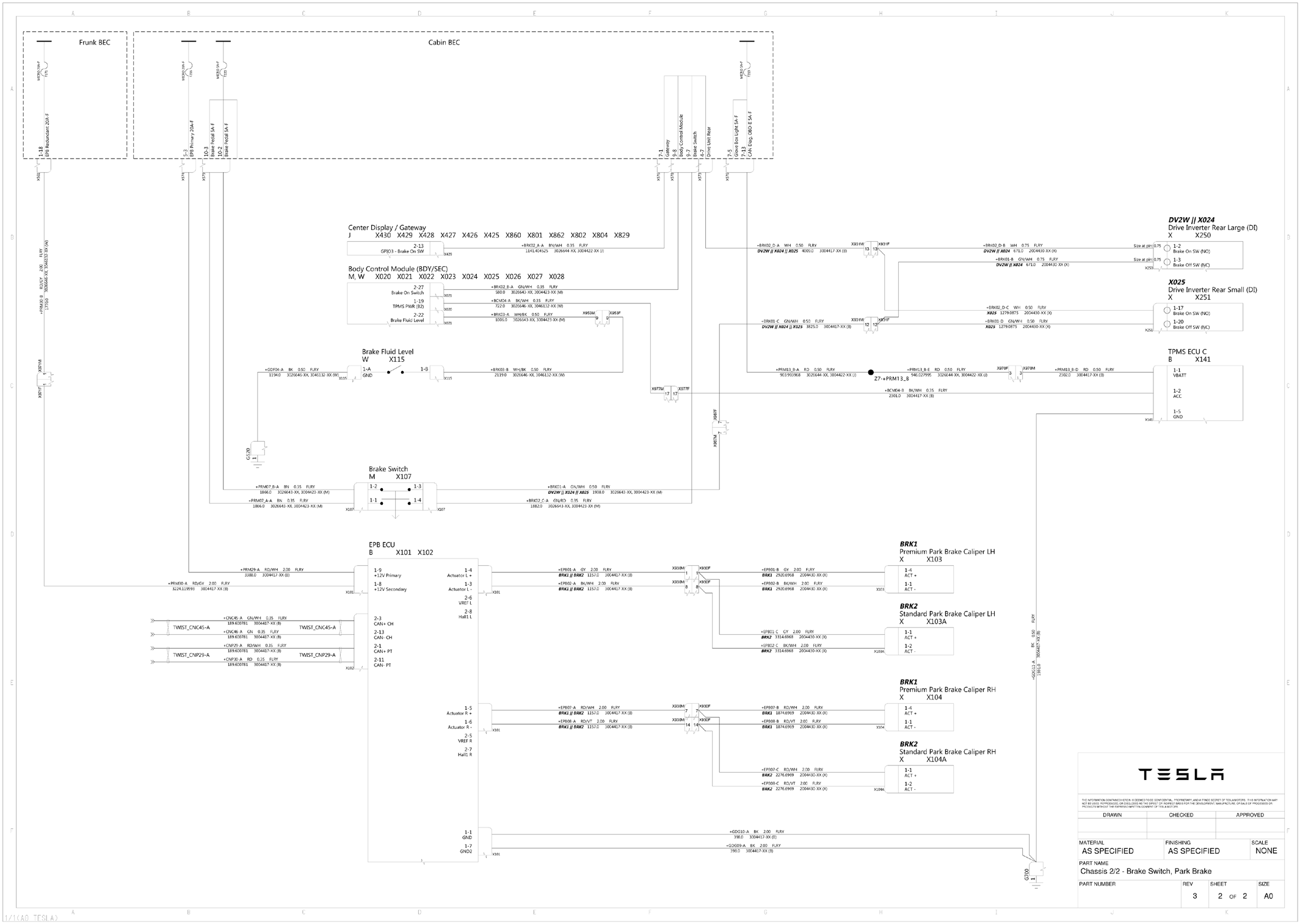

Chassis 2/2 - Brake Switch, Park Brake - Wiring Diagram [3/5/2018 - 2/24/2019]

G15032390Courtesy of TESLA, INC.
