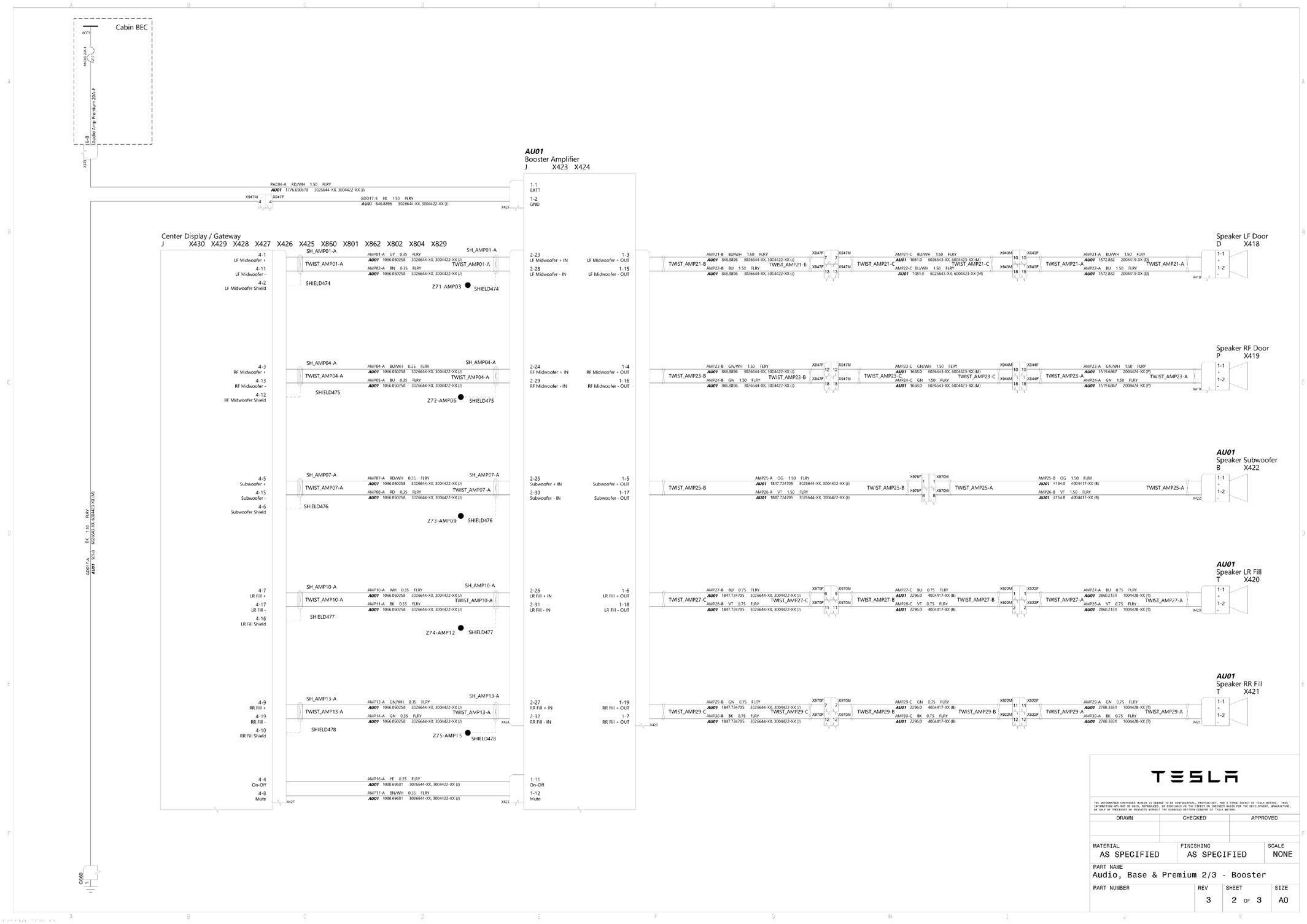

Audio, Base & Premium 2/3 - Booster - Wiring Diagram [12/7/2019 - ]

G15032508

Courtesy of TESLA, INC.
