Louver - Wheel Arch Liner - Front - LH - Remove And Replace: Removal

  1. Raise and support the vehicle Raise Vehicle - 2 Post Lift
    WARNING: Do not work on an incorrectly supported vehicle.
  2. Remove road wheel Wheel (Remove And Install)

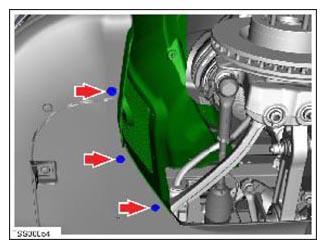

  3. Remove bolts (x2), plastic rivet (x1) securing wheel arch liner to undershield and front diffuser panel (torque 3 N.m/2.21 ft-lbs.).
    G14976000Courtesy of TESLA, INC.

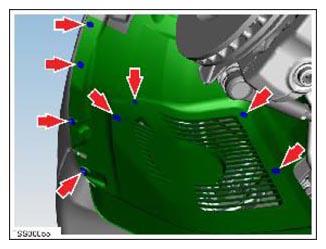

  4. Remove plastic rivets (x8) securing wheel arch liner to fascia, front diffuser panel and upper wheel arch liner.
    NOTE: Note installed position of components before removal.
    G14976001Courtesy of TESLA, INC.

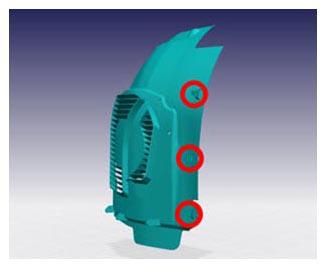

    NOTE: Dual Motor vehicles do not have the 4 outboard rivets. The outboard section of the arch liner is secured by 3 trim clips.
    G14976002Courtesy of TESLA, INC.

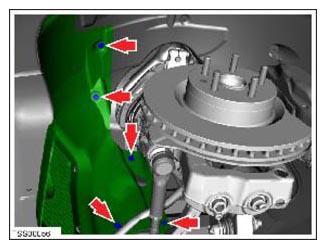

  5. Remove plastic rivets (x4), nut (x1) securing lower wheel arch liner to upper wheel arch liner and chassis (torque 3 N.m/2.21 ft-lbs.).
    NOTE: Note installed position of components before removal.
    G14976003Courtesy of TESLA, INC.
  6. Remove wheel arch liner.
