Underhood Apron - Front - Remove And Replace: Removal

  1. Remove the LH underhood apron, refer to UNDERHOOD APRON - LH (REMOVE AND REPLACE) .
  2. Remove the RH underhood apron.
  3. Carefully release the clips that secure the front underhood apron to the slam panel.
    Vehicles built through April 11, 2016 Vehicles built after April 11, 2016

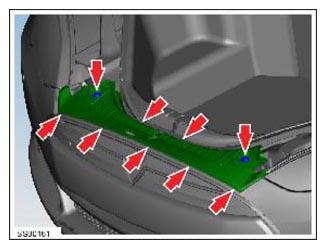

    G14976102Courtesy of TESLA, INC.

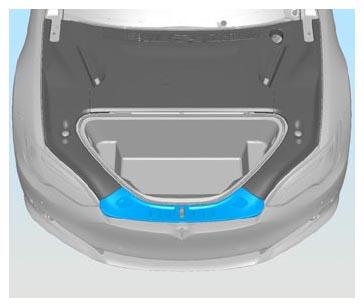

    G14976103Courtesy of TESLA, INC.
  4. Remove the front underhood apron.
    CAUTION: Take care not to damage component(s).
