Spoiler - Carbon Fiber - Remove And Replace: Removal

  1. Use a towel and/or compressed air to clean the liftgate area surrounding the carbon fiber spoiler.
    WARNING: To avoid personal injury, eye protection must be worn while using compressed air.

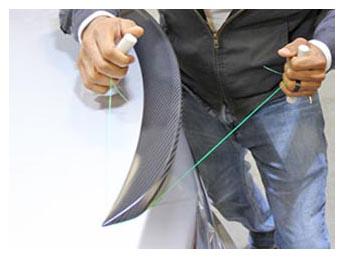

  2. Starting from one end of the carbon fiber spoiler, carefully use the badge removal kit to release the carbon fiber spoiler from the liftgate.
    CAUTION: Care must be taken to avoid damage to paintwork and exterior trim.
    G14976094Courtesy of TESLA, INC.
  3. Use a vacuum to remove any debris or dirt from the liftgate.
  4. Using a rubber wheel, remove any remaining adhesive from the liftgate.
    CAUTION: Care must be taken to avoid damage to paintwork and exterior trim.
  5. Use alcohol wipes to clean the liftgate where the carbon fiber spoiler will be installed.
  6. Inspect the liftgate for any markings.
    CAUTION: The new carbon fiber spoiler may be slightly smaller than the one originally installed if it is a different part number. Any markings or issues should be corrected before installing a smaller spoiler.
