Tesla Badge - Rear - Remove And Replace: Install

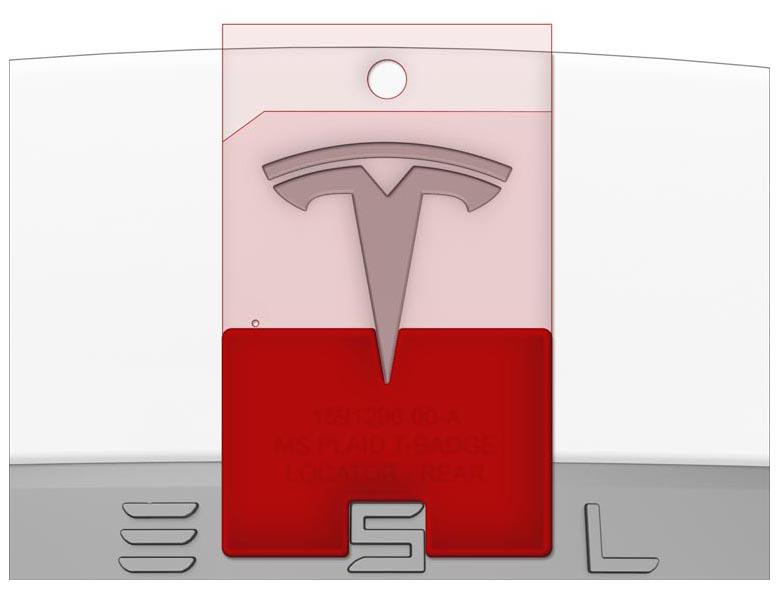

  1. Attach the T-badge on the rear badge locator, and then install the rear badge locator to the liftgate applique, aligning the cut-out in the badge locator with the "S" on the applique.
    G14976028Courtesy of TESLA, INC.
  2. Peel off the adhesive backing film from the rear of the badge, and then firmly press the badge onto the trunk.
  3. Use a pressure roller to wet-out the badge.
    NOTE: Starting from the bottom, work your way upwards. Make sure that the badge is fully adhered to the liftgate.
  4. Remove the badge locator, and then remove the adhesive film from the badge.
  5. Visually inspect the badge, making sure it is correctly installed.
  6. Use an IPA wipe to clean the badge and wipe away any remaining adhesive residue.
