Install Main Lower Dash Harness

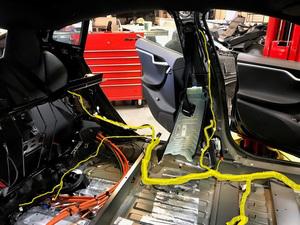

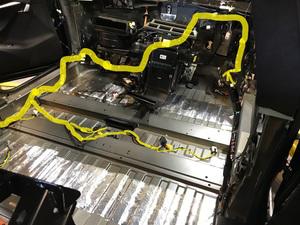

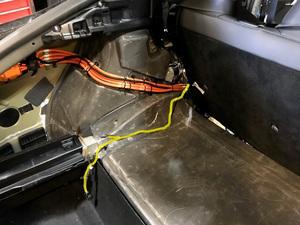

  1. Place new main (lower dash) harness in vehicle and lay harness out to its general installation orientation inside the vehicle.
    NOTE: Recommend assistance, Take care not to damage any connectors while routing harness and moving around inside the vehicle.
    G00624210Courtesy of TESLA, INC.
    G00624211Courtesy of TESLA, INC.
    G00624212Courtesy of TESLA, INC.

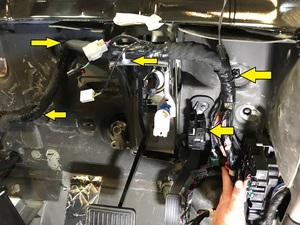

  2. Secure the main harness clips at the RH side of the bulkhead.
    NOTE: 5x clips. Re-secure the front harness clips over the main harness clips if only main body harness is being replaced.
    G00624213Courtesy of TESLA, INC.

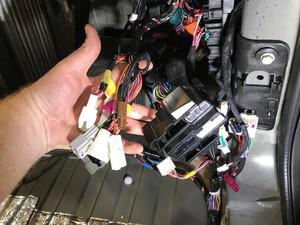

  3. Install the front harness connectors into the connector carrier at the lower RH A pillar.
    NOTE: 5x connectors, Ensure connectors are fully seated and lock into the connector carrier.
    G00624214Courtesy of TESLA, INC.

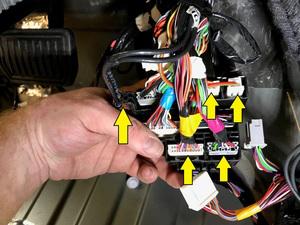

    G00624215Courtesy of TESLA, INC.

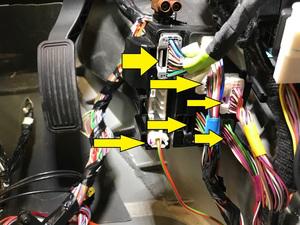

  4. Make connections to all connectors on connector carrier at RH lower A pillar.
    NOTE: 6x connectors.
    G00624216Courtesy of TESLA, INC.

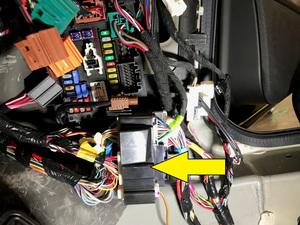

  5. Secure the RH Lower A pillar connector carrier bracket to the in cabin fuse box.
    NOTE: 2x tabs, Slide carrier on to tabs, Confirm the carrier is secured to the cabin fuse box.
    G00624217Courtesy of TESLA, INC.

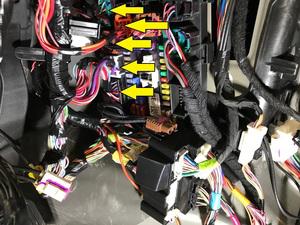

  6. Reconnect all main harness connections at the in cabin fuse box.
    NOTE: 5x connectors.
    G00624218Courtesy of TESLA, INC.

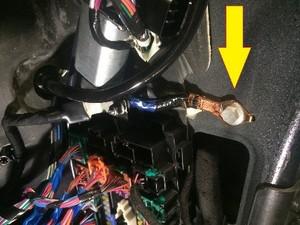

  7. Secure main harness RH A pillar ground.
    NOTE: 1x bolt, 10 mm, 9 N.m.
    G00624219Courtesy of TESLA, INC.

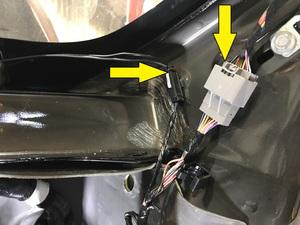

  8. Secure connections at RH Upper A pillar.
    NOTE: 1x connector, to headliner harness, 1x connector, to windshield defrost, 2x clips.
    G00624220Courtesy of TESLA, INC.

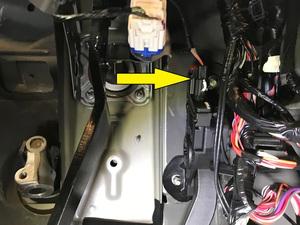

  9. Connect accelerator pedal.
    NOTE: 1x connector, Ensure locking tab is disengaged prior to making connection and then engaged after fully seating connector.
    G00624221Courtesy of TESLA, INC.
  10. Connect the brake switch.
    NOTE: 1x connector.
    G00624222Courtesy of TESLA, INC.

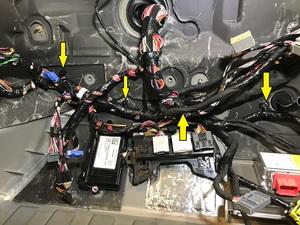

  11. Secure main harness clips at the LH side of the bulkhead.
    NOTE: 2x square clips, 2x barrel clips.
    G00624223Courtesy of TESLA, INC.

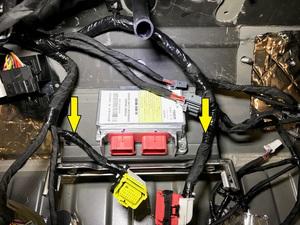

  12. Secure harness clips near PSRCM.
    NOTE: 2x fir tree clips.
    G00624224Courtesy of TESLA, INC.
  13. Re-secure connections at PSRCM.
    NOTE: 2x connectors, Engage connector then flip locking tab to fully seat connector.

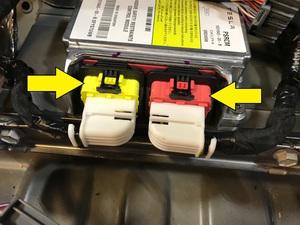

    G00624225Courtesy of TESLA, INC.

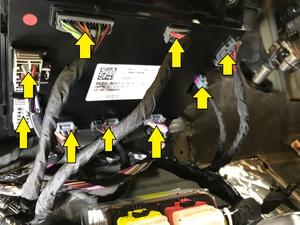

  14. Re-secure connections at the BCM.
    NOTE: 9x connectors, Ensure all connections have been made and that connectors are fully seated.
    G00624226Courtesy of TESLA, INC.
  15. Install the fasteners securing the BCM to the bulkhead.
    NOTE: 2x bolts, 10 mm, 5 N.m.

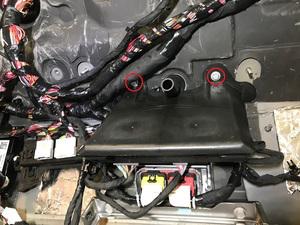

    G00624227Courtesy of TESLA, INC.
  16. Install the dead pedal.
    NOTE: 2x nuts, 13 mm, 5 N.m.

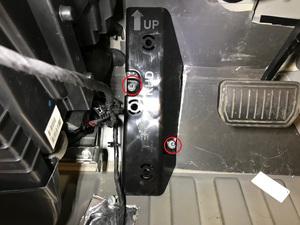

    G00624228Courtesy of TESLA, INC.

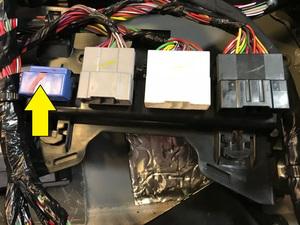

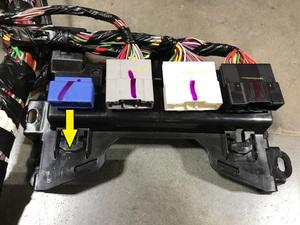

  17. Transfer the Blue connector cap on the LH footwell connector carrier from the old harness to the new harness.
    NOTE: Release locking tab under open side of connector cap and slide downward to release from old carrier, align tabs and slide upward to install on new harness connector carrier.
    G00624229Courtesy of TESLA, INC.
    G00624230Courtesy of TESLA, INC.

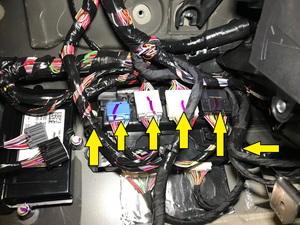

  18. Connect front harness connectors and secure clips to the main harness connector carrier in the LH footwell.
    NOTE: 4x connectors, 2x edge clips.
    G00624231Courtesy of TESLA, INC.

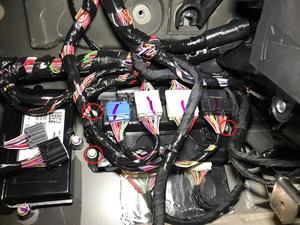

  19. Install the fasteners securing the connector carrier in the LH footwell area.
    NOTE: 3x bolts, 10 mm, 2 N.m, If vehicle is equipped with air suspension, the air suspension control unit sits under the connector carrier and shares the same mounting points and hardware.
    G00624232Courtesy of TESLA, INC.

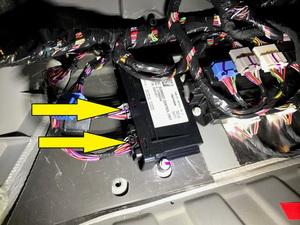

  20. Connect harness at Sunroof Control Unit if equipped.
    NOTE: 2x connectors.
    G00624233Courtesy of TESLA, INC.
  21. Place the HVAC assembly back into the vehicle for installation.
    NOTE: Recommend assistance, Move all loose harness connections out of the way to prevent damage while re-installing the HVAC assembly in the vehicle.

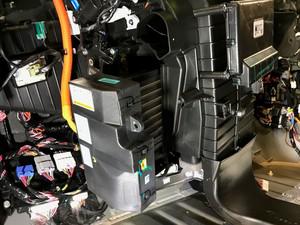

  22. Route the PTC heater to the HVAC assembly for installation and slide into HVAC assembly.
    G00624234Courtesy of TESLA, INC.

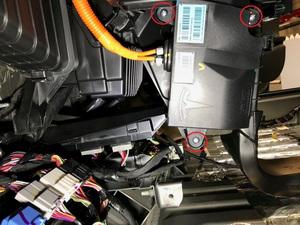

  23. Install the fasteners securing the PTC heater to the HVAC assembly.
    NOTE: 3x screws, PH2, 1 N.m.
    G00624235Courtesy of TESLA, INC.

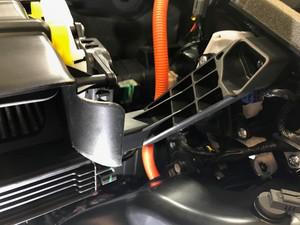

  24. Position the HVAC assembly cross brace for installation to the HVAC assembly.
    G00624236Courtesy of TESLA, INC.

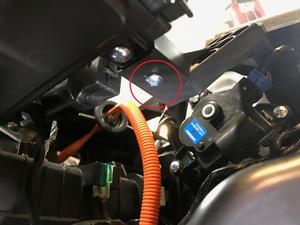

  25. Install the fasteners securing the HVAC assembly cross brace to the HVAC assembly.
    NOTE: 2x screws, PH2, 1 N.m.
    G00624237Courtesy of TESLA, INC.
    G00624238Courtesy of TESLA, INC.

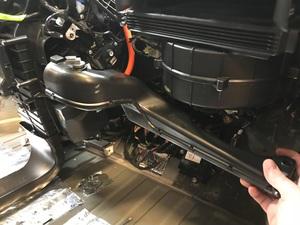

  26. Position the HVAC assembly RH lower air duct for installation.
    G00624239Courtesy of TESLA, INC.

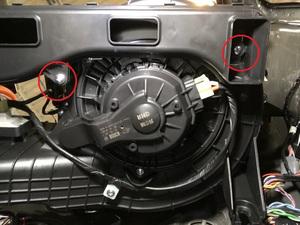

  27. Install the fasteners securing the RH lower air duct to the HVAC assembly.
    NOTE: 2x screws, PH2, 1 N.m.
    G00624240Courtesy of TESLA, INC.

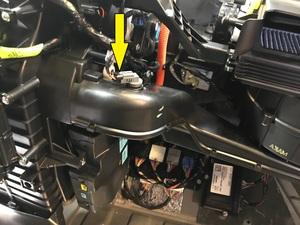

  28. Connect sensor for RH lower air duct on HVAC assembly.
    NOTE: 1x connector.
    G00624241Courtesy of TESLA, INC.
  29. Move HVAC assembly into position for installation and secure the drain hose.
    NOTE: 1x hose connection.

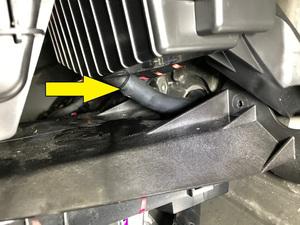

    G00624242Courtesy of TESLA, INC.

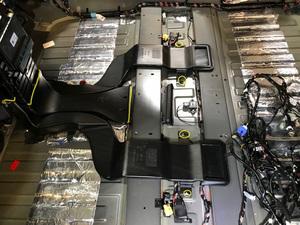

  30. Install HVAC floor ducts.
    NOTE: 3x ducts, 4x tabs, Make sure ducts are properly aligned to make a good seal and secure the ducts in place with their tabs at the studs on the floor pan.
    G00624243Courtesy of TESLA, INC.
  31. Install fasteners securing the HVAC assembly to the body.
    NOTE: 5x nuts, 10 mm, 6 N.m, 2x bolts, 10 mm, 6 N.m.

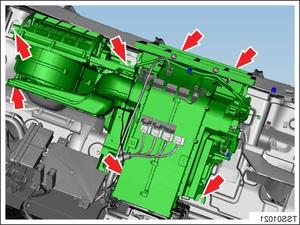

    G00624244Courtesy of TESLA, INC.
  32. Connect HVAC blower assembly and RKE, and secure harness clip.
    NOTE: 2x connectors, 2x edge clips.

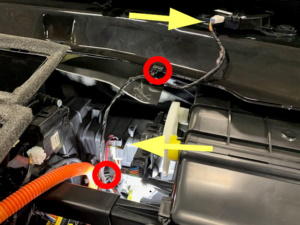

    G00624245Courtesy of TESLA, INC.
  33. Connect thermal controller.
    NOTE: 4x connectors, 1x edge clips.

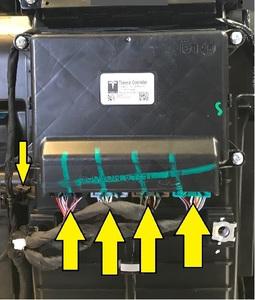

    G00624246Courtesy of TESLA, INC.
  34. Connect A/C Lines with TXV to evaporator at the bulkhead.
    NOTE: 2x bolts, T30, 6 N.m, Install new O-rings prior to installation.
    G00624247Courtesy of TESLA, INC.

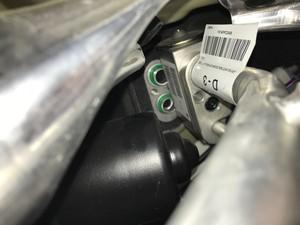

    G00624248Courtesy of TESLA, INC.
  35. Secure A/C line bracket at RH cross-brace.
    NOTE: 1x bolt, 10 mm, 6 N.m.
    G00624249Courtesy of TESLA, INC.
  36. Install cowl screen panel.
    NOTE: 4x push clips, 2x end tabs, Secure along base of windshield.

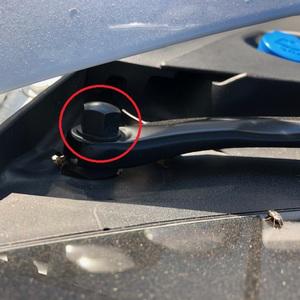

  37. Install LH side wiper arm.
    NOTE: 1x nut, 17 mm, 31 N.m.
    G00624250Courtesy of TESLA, INC.

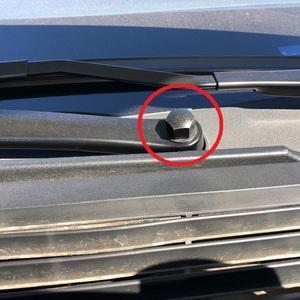

  38. Install RH side wiper arm.
    NOTE: 1x nut, 17 mm, 31 N.m.
    G00624251Courtesy of TESLA, INC.

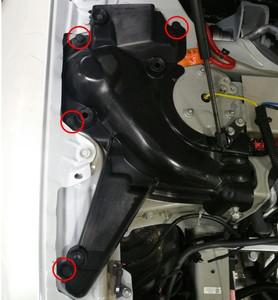

  39. Install RH shock tower cover.
    NOTE: 4x push clips.
    G00624252Courtesy of TESLA, INC.

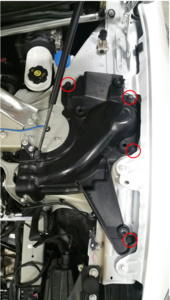

  40. Install LH shock tower cover.
    NOTE: 4x push clips.
    G00624253Courtesy of TESLA, INC.

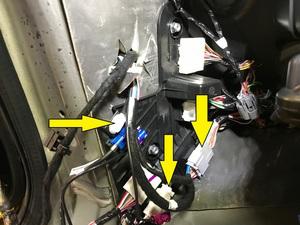

  41. Connect A pillar harness connectors to main harness connectors at LH lower A pillar harness carrier.
    NOTE: 2x connectors, 1x clip.
    G00624254Courtesy of TESLA, INC.
  42. Install the fasteners securing the LH lower A pillar main harness connector carrier to the LH lower A pillar.
    NOTE: 2x nuts, 10 mm, 5 N.m.

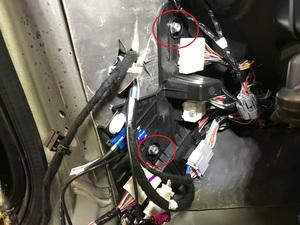

    G00624255Courtesy of TESLA, INC.
  43. Secure the main harness ground to the LH Lower A pillar.
    NOTE: 1x bolt, 10 mm, 9 N.m.

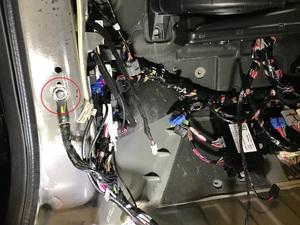

    G00624256Courtesy of TESLA, INC.

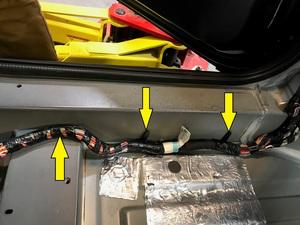

  44. Install the harness clips along the LH front sill panel.
    NOTE: 3x clips.
    G00624257Courtesy of TESLA, INC.

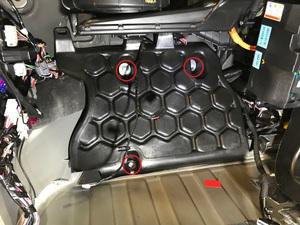

  45. Install LH footwell harness and connector cover.
    NOTE: 3x bolts, 10 mm, 4 N.m.
    G00624258Courtesy of TESLA, INC.

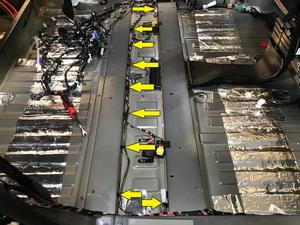

  46. Secure the main harness clips along the center of the vehicle between B pillars.
    NOTE: 9x clips.
    G00624259Courtesy of TESLA, INC.
  47. Secure main harness seat connectors to brackets and secure brackets to floor pan.
    NOTE: 6x clips.
    G00624260Courtesy of TESLA, INC.

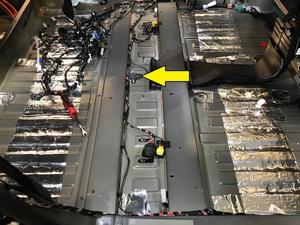

  48. Connect the main harness to the Yaw rate sensor.
    NOTE: 1x connector.
    G00624261Courtesy of TESLA, INC.

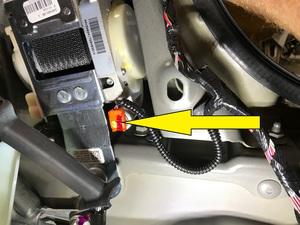

  49. Connect the main harness to the pyrotechnic at the LH seatbelt pretensioner.
    NOTE: 1x connector.
    G00624262Courtesy of TESLA, INC.

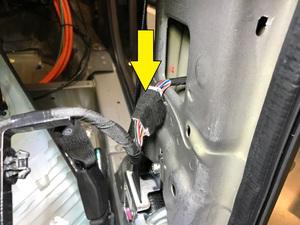

  50. Connect the main harness to the harness inside the LH B pillar.
    NOTE: 1x connector, 1x clip, after securing connector tuck harness inside of B pillar and secure with harness clip.
    G00624263Courtesy of TESLA, INC.
  51. Secure the clips for the LH B pillar camera portion of the main harness.
    NOTE: 5x clips.

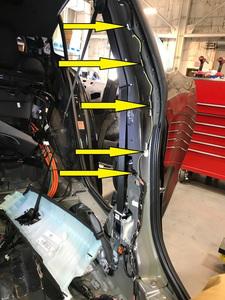

    G00624264Courtesy of TESLA, INC.

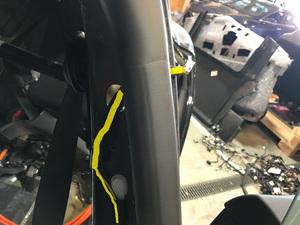

  52. Route the B pillar camera portion of the harness inside the B pillar.
    NOTE: 1x connector.
    G00624265Courtesy of TESLA, INC.
  53. Clean LH B-pillar area with IPA wipe and allow to dry.
    NOTE: Remove any remaining adhesive.

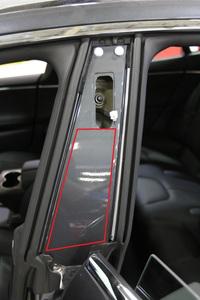

    G00624266Courtesy of TESLA, INC.
  54. Remove lower B-pillar applique cover from new applique.
  55. Peel backing from double sided tape on LH B-pillar applique.

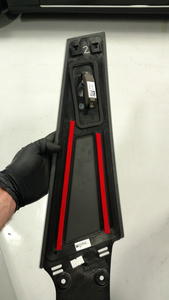

    G00624267Courtesy of TESLA, INC.

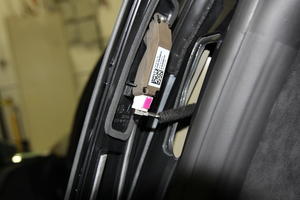

  56. Connect camera and install LH side applique.
    NOTE: 1x connector, Slide applique up into clips and then press into B-pillar to secure double sided tape.
    G00624268Courtesy of TESLA, INC.

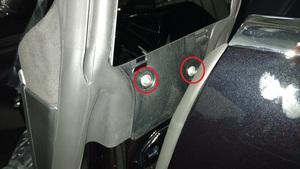

  57. Reinstall screws securing LH side applique.
    NOTE: 2x screws, T25, 4 N.m.
    G00624269Courtesy of TESLA, INC.

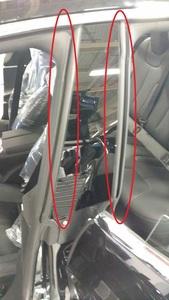

  58. Secure LH B-pillar seals to applique.
    NOTE: Use P-80 emulsifier to assist with seal installation.
    G00624270Courtesy of TESLA, INC.

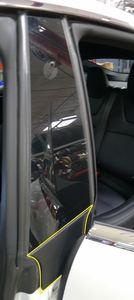

  59. Reinstall cover over bottom of LH B-pillar applique.
    NOTE: Make sure all clips are fully seated.
    G00630111Courtesy of TESLA, INC.

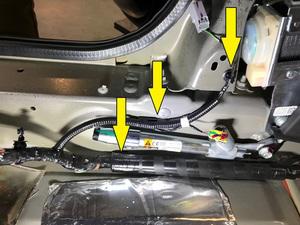

  60. Secure main harness clips at LH lower portion of B pillar.
    NOTE: 3x clips.
    G00630112Courtesy of TESLA, INC.
  61. Connect LH lap belt pre tensioner pyrotechnic.
    NOTE: 1x connector.

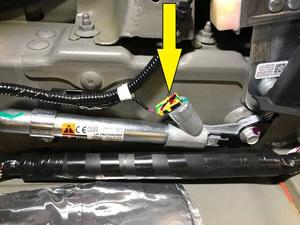

    G00630113Courtesy of TESLA, INC.
  62. Connect LH B pillar side impact sensor.
    NOTE: 1x connector, 1x clip.

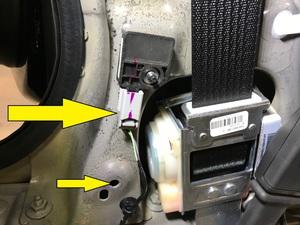

    G00630114Courtesy of TESLA, INC.

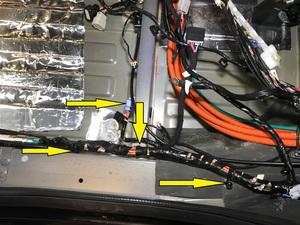

  63. Secure harness clips to body at lower C pillar area.
    NOTE: 4x clips.
    G00630115Courtesy of TESLA, INC.

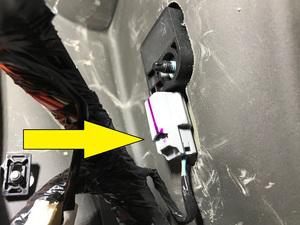

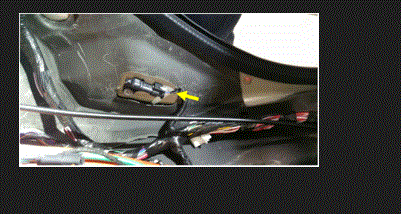

  64. Connect the C pillar impact sensor.
    NOTE: 1x connector.
    G00630116Courtesy of TESLA, INC.
    G00630117Courtesy of TESLA, INC.
  65. Pass the LH rear door latch connector through the NVH padding and connect the LH rear door latch.
    NOTE: 1x connector.

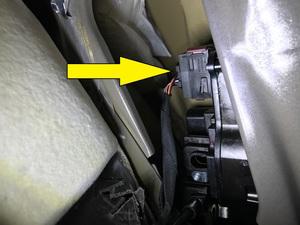

    G00630118Courtesy of TESLA, INC.

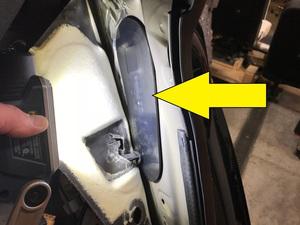

  66. Install the LH rear door latch closeout cover.
    NOTE: 1x cover.
    G00630119Courtesy of TESLA, INC.

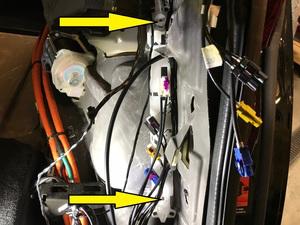

  67. Secure the main harness connector carrier at the C-pillar.
    NOTE: 2x clips.
    G00630120Courtesy of TESLA, INC.

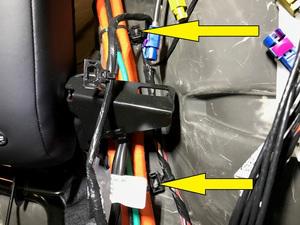

  68. Secure main harness clips at the C-pillar.
    NOTE: 2x clips, Be sure to re-install HV harness barrel clips over main harness clips.
    G00630121Courtesy of TESLA, INC.

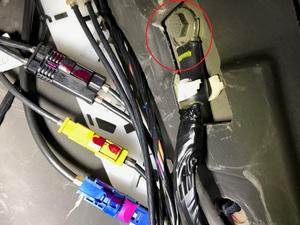

  69. Secure main harness ground at C-pillar.
    NOTE: 1x bolt, 10 mm, 9 N.m.
    G00630122Courtesy of TESLA, INC.
  70. Connect rear harness connectors to main harness at C-pillar connector carrier.
    NOTE: 4x connector, coaxial, Ensure harnesses are routed and secure in the wiring holds on the body and harness carrier.

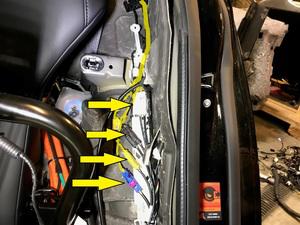

    G00630123Courtesy of TESLA, INC.
  71. Route the curtain airbag portion of the main harness up the C-pillar and behind the headliner and connect curtain airbag.
    NOTE: 1x connector, 1x fir tree clip, 1x edge clip, Ensure harness is routed behind the deployment path of the curtain airbag.

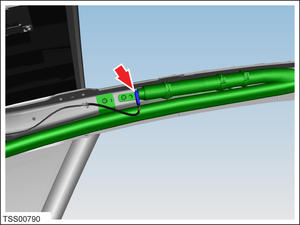

    G00630124Courtesy of TESLA, INC.

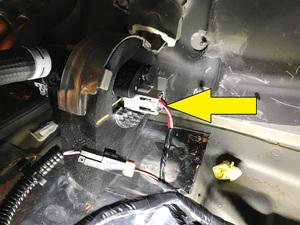

  72. Connect coolant pump under 2nd row seat bottom frame.
    NOTE: 1x connector.
    G00630125Courtesy of TESLA, INC.
  73. Secure the main harness clips to the body near the coolant pump.
    NOTE: 2x barrel clips, Be sure to route main harness underneath coolant pump bracket, if necessary the coolant pump and surrounding foam can be slid out from under bracket to create room for harness routing.

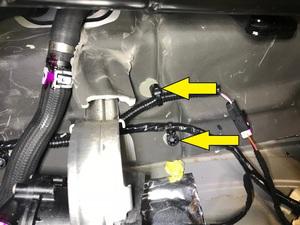

    G00630126Courtesy of TESLA, INC.

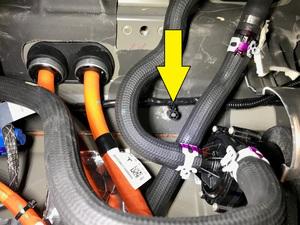

  74. Secure the next main harness clip between the 2 coolant hoses to the charger.
    NOTE: 1x barrel clip, Be sure to route harness underneath coolant hoses and HV harness.
    G00630127Courtesy of TESLA, INC.

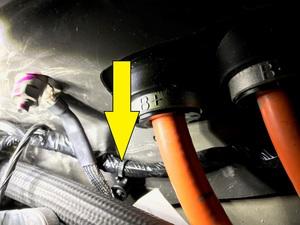

  75. Secure the next main harness clip below the ground cable for the charger.
    NOTE: 1x barrel clip, Be sure to route main harness underneath HV harness.
    G00630128Courtesy of TESLA, INC.
  76. Secure the next main harness clip between the charger and the body.
    NOTE: 1x barrel clip.

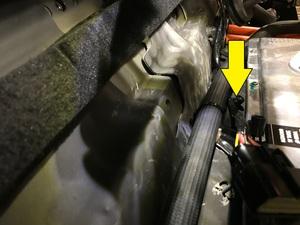

    G00630129Courtesy of TESLA, INC.

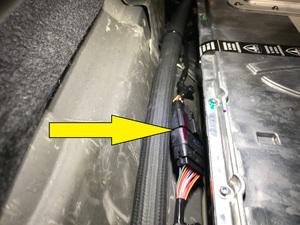

  77. Connect the main harness connector between the charger and the body.
    NOTE: 1x connector.
    G00630130Courtesy of TESLA, INC.
  78. Secure the harness clip nearest the connector between the charger an the body.
    NOTE: 1x barrel clip.
    G00630131Courtesy of TESLA, INC.

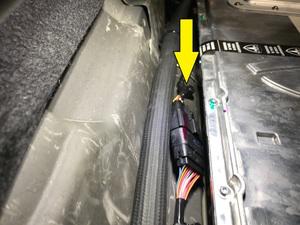

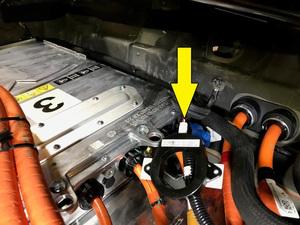

  79. Connect the second row RKE antenna.
    NOTE: 1x connector.
    G00630132Courtesy of TESLA, INC.

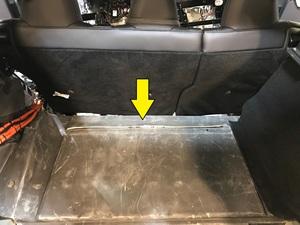

  80. Route and secure second row RKE antenna under the rubber NVH mat below seat backs.
    NOTE: 2x dual lock strips.
    G00630133Courtesy of TESLA, INC.
    G00630134Courtesy of TESLA, INC.

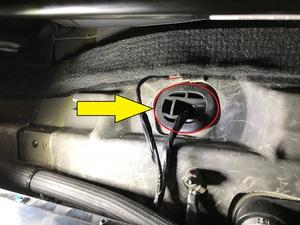

  81. Pass the HV Battery LV logic connectors through the opening in the body below the second row seat frame and secure rubber grommet seal in place.
    NOTE: 2x connectors, 1x grommet, Ensure grommet is fully seated in body cavity to prevent water ingress.

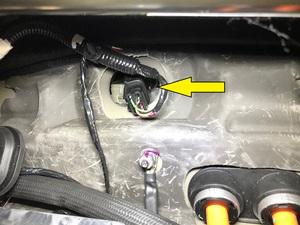

    G00630135Courtesy of TESLA, INC.
    G00630136Courtesy of TESLA, INC.

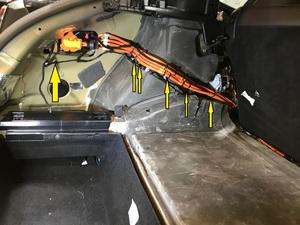

  82. Secure main harness clips in LH trunk area.
    NOTE: 6x clips, Be sure to re-install HV harness barrel clips over main harness clips.
    G00630137Courtesy of TESLA, INC.

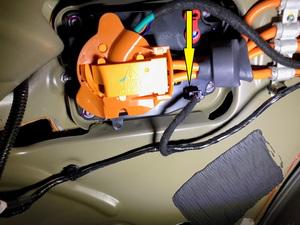

  83. Connect charge port.
    NOTE: 1x connector.
    G00630138Courtesy of TESLA, INC.

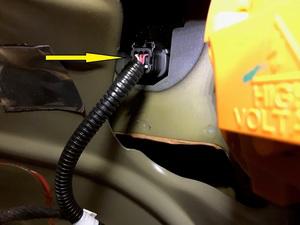

  84. Connect LH tail light.
    NOTE: 1x connector.
    G00630139Courtesy of TESLA, INC.

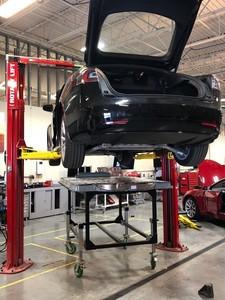

  85. Remove the wheel chock and push the vehicle in position to be lifted by hoist then reinstall wheel chock.
    NOTE: Recommend assistance, Ensure doors are clear of the lift posts before pushing forward, flip the door latches to closed position to prevent doors from latching while vehicle is powered down.
    G15034660Courtesy of TESLA, INC.
  86. Position lift posts under vehicle lift points.

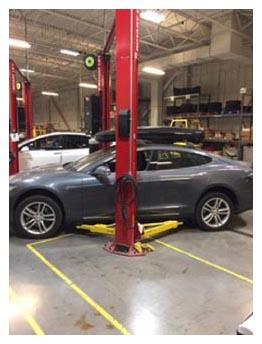

    G15034661Courtesy of TESLA, INC.
  87. Raise vehicle fully and lower onto locks.
  88. Install the HV battery LV logic connectors to the LV rapid mate bracket.
    NOTE: 2x tabs, make sure the appropriate connector goes to the correct side of the bracket prior to installation, Ensure the bracket connector hold down tabs are not damage otherwise the harness will not be able to release from battery pack in future service scenarios.
    G00630140Courtesy of TESLA, INC.
  89. Install the HV battery LV logic connector cover to the bracket.
    NOTE: 6x tabs, 1x edge clip.

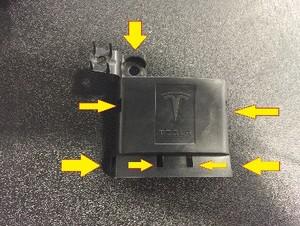

    G00630141Courtesy of TESLA, INC.
    G00630142Courtesy of TESLA, INC.
  90. Install bolts and Rear DU HV cable clips to HV battery LV logic connector bracket.
    NOTE: 2x bolts, 10 mm, 8 N.m, 3x clips.
    G00630143Courtesy of TESLA, INC.
    G00630144Courtesy of TESLA, INC.

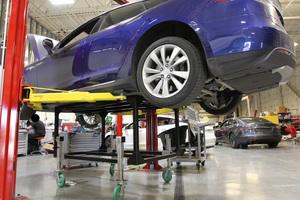

  91. Position HV battery underneath vehicle.
    G00630145Courtesy of TESLA, INC.
  92. Remove covers or tape from LV and HV rapid mates.

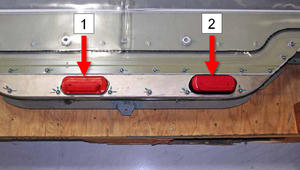

    G00630146Courtesy of TESLA, INC.
  93. Lower vehicle onto pack.
    NOTE: Align rapid mate connections before lowering fully, Recommend assistance.
    G00630147Courtesy of TESLA, INC.
  94. Loosely install 4 new front bolts for HV battery.
    NOTE: 4x patch bolts, 13 mm, 30 N.m, Install new patch bolts, Torque at later step.
    G00630148Courtesy of TESLA, INC.

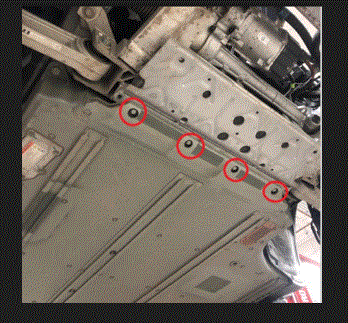

    G00630149Courtesy of TESLA, INC.

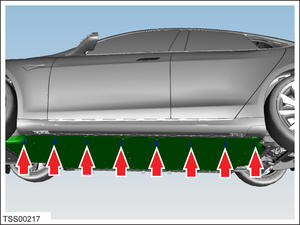

  95. Loosely install LH rocker bolts.
    NOTE: 8x patch bolts, 13 mm, 55 N.m, Install new patch bolts, Torque at later step.
    G00630150Courtesy of TESLA, INC.
  96. Loosely install RH rocker bolts.
    NOTE: 8x patch bolts, 13 mm, 55 N.m, Install new patch bolts, Torque at later step.
    G00630151Courtesy of TESLA, INC.
  97. Loosely install 21 mm bolts at front of HV battery hand tight.
    NOTE: 2x bolts, 21 mm, 115 N.m, Install new bolts, Torque at later step.

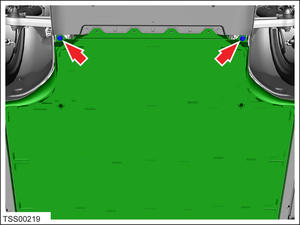

    G00630152Courtesy of TESLA, INC.
  98. Loosely install eight outer center bolts hand tight.
    NOTE: 8x patch bolts, E12, 38 N.m, Install new patch bolts, Torque at later step.
    G00630153Courtesy of TESLA, INC.
  99. Torque rocker HV battery bolts on both sides.
    NOTE: 16x patch bolts, 13 mm, 55 N.m.
    G00630154Courtesy of TESLA, INC.
    G00630155Courtesy of TESLA, INC.

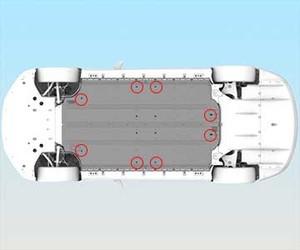

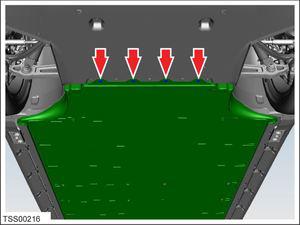

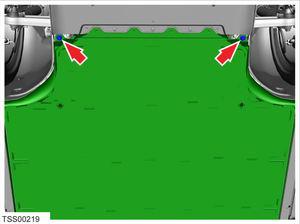

  100. Torque remaining HV battery bolts.
    NOTE: 8x patch bolts, E12, 38 N.m, 2x bolts, 21 mm, 115 N.m, 4x patch bolts, 13 mm, 30 N.m.
    G00630156Courtesy of TESLA, INC.
    G00630157Courtesy of TESLA, INC.
    G00630158Courtesy of TESLA, INC.
  101. Raise vehicle and remove battery table.
    NOTE: Recommend assistance.
    G00630159Courtesy of TESLA, INC.
  102. Install inner center HV battery bolts with battery powered drill.
    NOTE: 4x patch bolts, E12, 38 N.m, Install new patch bolts, Do not over tighten bolts.

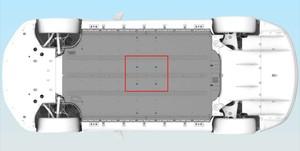

    G00630160Courtesy of TESLA, INC.
  103. Install front lower bash plate extrusion.
    NOTE: 2x patch bolts, T30, 16 N.m, Install new patch bolts.
    G00630161Courtesy of TESLA, INC.
  104. Install ski side covers onto RH side of HV battery.
    NOTE: 14x clips, 3x covers.
    G00630162Courtesy of TESLA, INC.
  105. Install ski side covers onto LH side of HV battery.
    NOTE: 14x clips, 3x covers.
    G00630163Courtesy of TESLA, INC.
  106. Place mid-aero shield for installation.

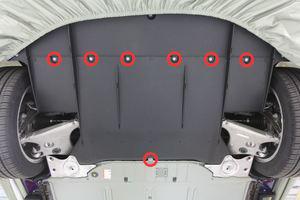

    G00630164Courtesy of TESLA, INC.
  107. Position mid aero shield and install bolts securing mid aero shield to vehicle.
    NOTE: 7x bolts, 10 mm, 4 N.m.

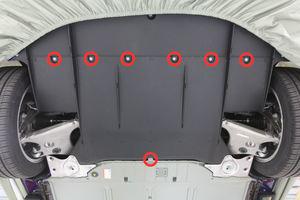

    G00630165Courtesy of TESLA, INC.
  108. Install clips securing mid aero shield to vehicle.
    NOTE: 7x push clips.

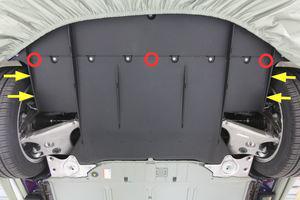

    G00630166Courtesy of TESLA, INC.
  109. Install clips securing RH shear plate to wheel fairing.
    NOTE: 2x push clips.
    G00630167Courtesy of TESLA, INC.

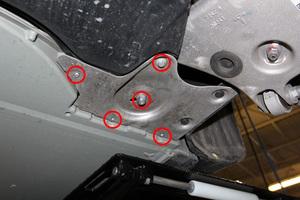

  110. Install screws, bolt, and nut securing RH shear plate to vehicle.
    NOTE: 3x screws, T25, 6 N.m, 1x bolt, 10 mm, 4 N.m, 1x nut, 15 mm, 35 N.m, Install new nut.
    G00630168Courtesy of TESLA, INC.

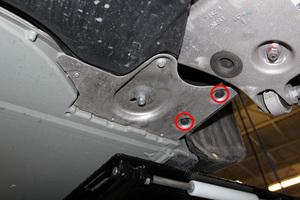

  111. Install clips securing RH shear plate to wheel fairing.
    NOTE: 2x push clips.
    G00630169Courtesy of TESLA, INC.
  112. Install clips securing LH shear plate to wheel fairing.
    NOTE: 2x push clips.
    G00630170Courtesy of TESLA, INC.

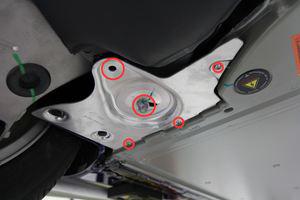

  113. Install screws, bolt, and nut securing LH shear plate to vehicle.
    NOTE: 3x screws, T25, 6 N.m, 1x bolt, 10 mm, 4 N.m, 1x nut, 15 mm, 35 N.m, Install new nut.
    G00630171Courtesy of TESLA, INC.

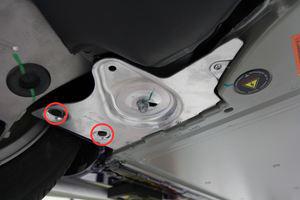

  114. Install clips securing LH shear plate to wheel fairing.
    NOTE: 2x push clips.
    G00630172Courtesy of TESLA, INC.
  115. Lower vehicle until tires are touching the ground.
  116. Roll the vehicle back away from the lift posts and install wheel chocks.
    NOTE: Recommend assistance, Done so doors can be fully opened to allow more room to work.

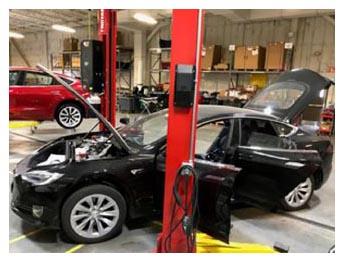

    G15034662Courtesy of TESLA, INC.
  117. Install rear portion of headliner into position and clip into place.
    NOTE: 5x clips, 3x velcro strips, Replace any damaged or missing clips.
    G00630173Courtesy of TESLA, INC.
  118. Install RH upper C-pillar trim.
    NOTE: 4x clips.
    G00630174Courtesy of TESLA, INC.
  119. Install RH rear C-pillar.
    NOTE: 1x screw, T25, 3 N.m, 4x clips.
    G00630175Courtesy of TESLA, INC.

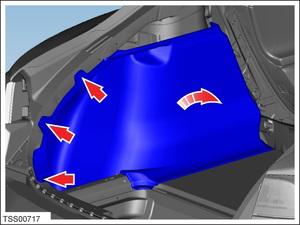

  120. Install the LH trunk side trim back onto the body of the vehicle.
    NOTE: 1x fir tree clip.
    G00630176Courtesy of TESLA, INC.
  121. Install trunk floor carpet.
    NOTE: 4x clips.

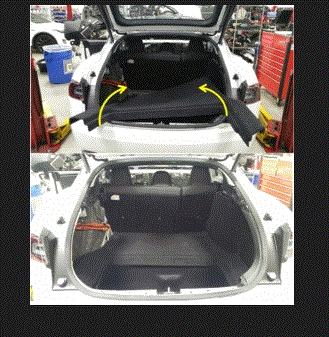

    G00630177Courtesy of TESLA, INC.
    G00630178Courtesy of TESLA, INC.

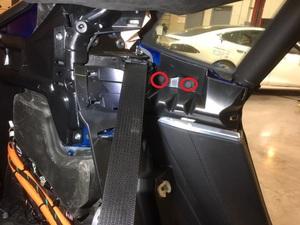

  122. Install LH lower C-pillar.
    NOTE: 4x clips, 2x push clips.
    G00630179Courtesy of TESLA, INC.
    G00630180Courtesy of TESLA, INC.
  123. Install the mid C-Pillar trim.
    NOTE: 4x clips.

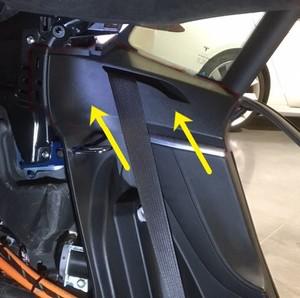

    G00630181Courtesy of TESLA, INC.

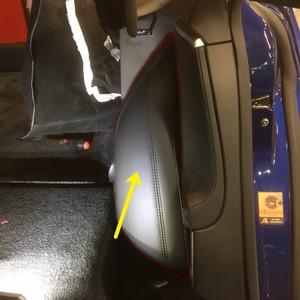

  124. Install the LH rear seat back bolster.
    NOTE: 1x clip.
    G00630182Courtesy of TESLA, INC.
  125. Install LH C-pillar upper trim.
    NOTE: 4x clips.
    G00630183Courtesy of TESLA, INC.
  126. Install the LH mid C pillar.
    NOTE: 1x screw, T25, 3 N.m.

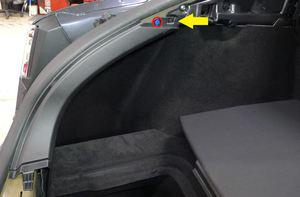

  127. Install LH trunk side garnish trim.
    NOTE: 2x clips.
    G00630184Courtesy of TESLA, INC.

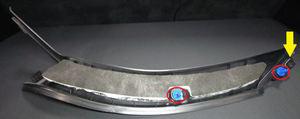

    G00630185Courtesy of TESLA, INC.

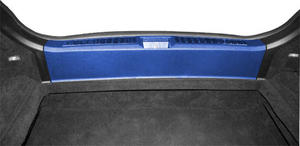

  128. Install trunk sill panel.
    NOTE: 4x clips, 4x guides.
    G00630186Courtesy of TESLA, INC.

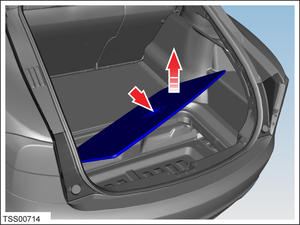

  129. Install trunk load floor.
    G00630187Courtesy of TESLA, INC.
  130. Install LH mid C pillar trim.
    NOTE: 1x screw, T25, 3 N.m, 4x clips.

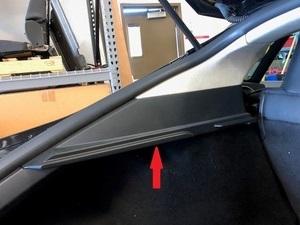

    G00630188Courtesy of TESLA, INC.
  131. Install parcel shelf.
    G00630189Courtesy of TESLA, INC.

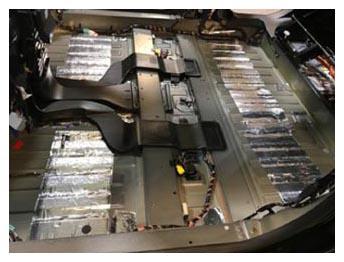

  132. Install floor carpet in vehicle.
    NOTE: 3x fir tree clips.
    G00630190Courtesy of TESLA, INC.
    G15034663Courtesy of TESLA, INC.
  133. Lower seat frame into position and secure harness clips to frame.
    G00630191Courtesy of TESLA, INC.
  134. Lower seat frame into position and secure harness clips to frame.
    G00630192Courtesy of TESLA, INC.

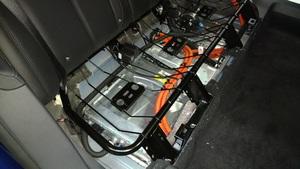

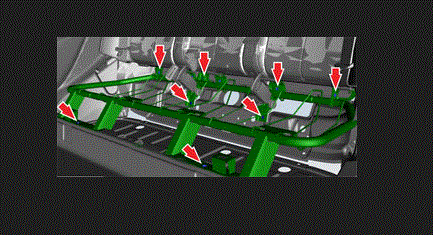

  135. Install and torque bolts securing seat frame to vehicle.
    NOTE: 8x bolts, 11 mm, 26 N.m.
    G00630193Courtesy of TESLA, INC.
    G00630194Courtesy of TESLA, INC.
  136. Place NVH padding onto seat frame.
    G00630195Courtesy of TESLA, INC.
  137. Install seat bottom cushion.
    NOTE: 2x clips, 4x connectors (7x connectors if equipped with heated 2nd row seats).
    G00630196Courtesy of TESLA, INC.
  138. Install LH upper B-pillar trim.
    NOTE: 2x metal clips, Ensure locating tab at top of B-pillar is aligned to the opening in the body, Replace any broken or missing clips prior to installation.
    G00630197Courtesy of TESLA, INC.

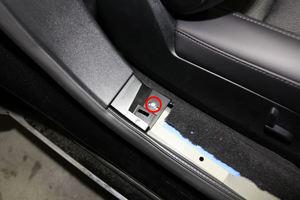

  139. Install LH lower B-pillar trim.
    NOTE: 6x plastic clips, 2x metal clips, Replace any broken or missing clips prior to installation.

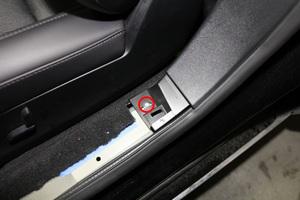

  140. Install fasteners securing LH lower B-pillar trim.
    NOTE: 2x screws, T25, 2 N.m.
    G00630198Courtesy of TESLA, INC.
    G00630199Courtesy of TESLA, INC.

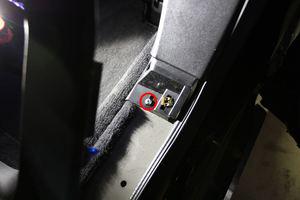

  141. Install RH lower B-pillar trim.
    NOTE: 6x plastic clips, 2x metal clips, Replace any broken or missing clips prior to installation.
  142. Install fasteners securing RH lower B-pillar trim.
    NOTE: 2x screws, T25, 2 N.m.
    G00630200Courtesy of TESLA, INC.
    G00630201Courtesy of TESLA, INC.
  143. Bring the cross car beam into the vehicle for installation.
    NOTE: Exercise caution when installing the cross car beam, the brake switch is attached to the cross car beam and is susceptible to failure, Recommend assistants, take care not to damage any surrounding components while placing the cross car beam into the vehicle.
  144. Install the fasteners securing the cross car beam to the body.
    NOTE: 7x bolts, 13 mm, 27 N.m.

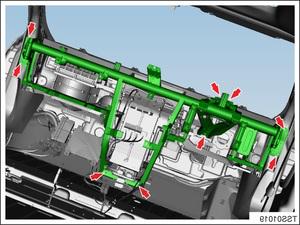

    G00630202Courtesy of TESLA, INC.
  145. Install the fasteners securing the cross car beam to the HVAC assembly.
    NOTE: 3x bolts, 10 mm, 10 N.m.

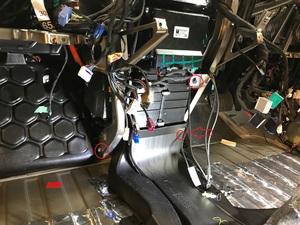

    G00630203Courtesy of TESLA, INC.

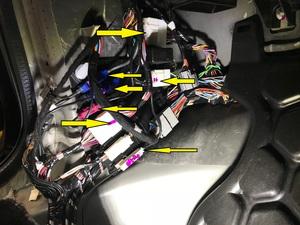

  146. Connect cross car beam harness connectors at the LH Lower A pillar area.
    NOTE: 7x connectors.
    G00630204Courtesy of TESLA, INC.

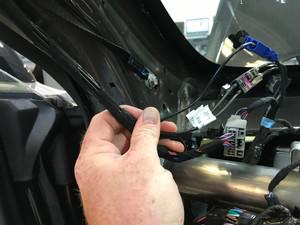

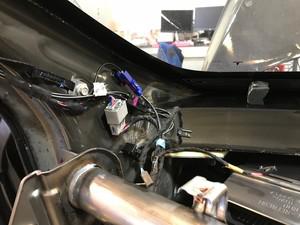

  147. Connect Headliner harness connections to cross car beam harness connectors at mid LH A pillar.
    NOTE: 3x connectors, 2x clips.
    G00630205Courtesy of TESLA, INC.
    G00630206Courtesy of TESLA, INC.

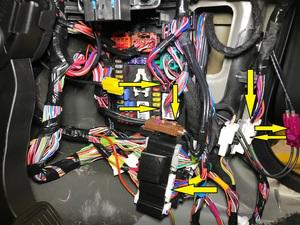

  148. Connect cross car beam harness to main harness connectors at RH lower A pillar.
    NOTE: 7x connectors.
    G00630207Courtesy of TESLA, INC.
  149. Install IP carrier into vehicle.
    NOTE: Recommend assistance.

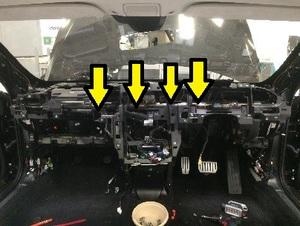

    G00630208Courtesy of TESLA, INC.
  150. Install edge clips secured to the IP carrier.
    NOTE: 2x clips LH and RH RKE, 2x clips tweeter harness, 1x clip steering column air bag harness, 1x clip MCU harness, Pull the IP carrier forward for better access for edge clips.

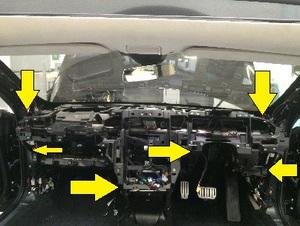

    G00630209Courtesy of TESLA, INC.
  151. Install LH dash speaker.
    NOTE: 2x screws, T20, 2 N.m, 1x connector, Pull the IP carrier forward for better access for speakers.
    G00630210Courtesy of TESLA, INC.

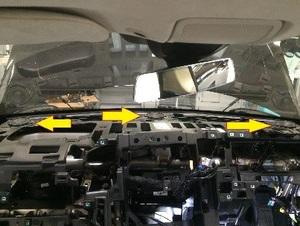

  152. Install center dash speaker.
    NOTE: 2x screws, T20, 2 N.m, 1x connector, Pull the IP carrier forward for better access for speakers.
    G00630211Courtesy of TESLA, INC.
  153. Install RH dash speaker.
    NOTE: 2x screws, T20, 2 N.m, 1x connector, Pull the IP carrier forward for better access for speakers.
    G00630212Courtesy of TESLA, INC.

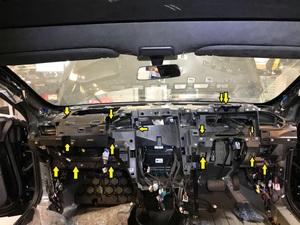

  154. Install the fasteners securing the IP carrier to the dash frame.
    NOTE: 15x screws, T20, 2 N.m.
    G00630213Courtesy of TESLA, INC.
  155. Place steering column into vehicle for installation.
  156. Install fasteners securing steering column to cross car beam.
    NOTE: 2x bolts, 13 mm, 17 N.m, 2x nuts, 13 mm, 30 N.m.
    G00630214Courtesy of TESLA, INC.
    G00630215Courtesy of TESLA, INC.
  157. Connect steering column to lower steering shaft joint.
    NOTE: Slide joint up onto lower shaft, Ensure that the previously indexed paint marks align between the lower steering column and shaft joint.
    G00630216Courtesy of TESLA, INC.
  158. Install bolt securing lower shaft to steering column.
    NOTE: 1x bolt, 13 mm, 30 N.m.
    G00630217Courtesy of TESLA, INC.
  159. Connect harness connectors for steering column motors.
    NOTE: 2x connectors.
  160. Install RH footwell cover.
    NOTE: 2x clips, 1x connector.
    G00630218Courtesy of TESLA, INC.

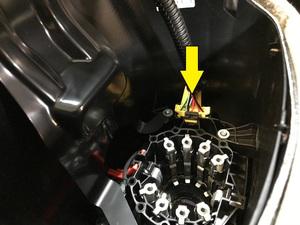

  161. Connect harness to steering column control module.
    NOTE: 1x connector, Install new retaining clip.
    G00630219Courtesy of TESLA, INC.

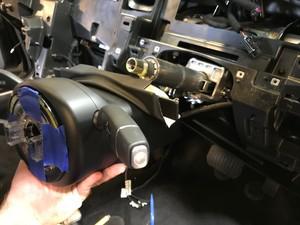

  162. Slide steering column control module over upper steering column.
    NOTE: Gently jiggle the SCCM while pressing it onto the column if needed.
    G00630220Courtesy of TESLA, INC.
  163. Remove tape previously applied to the clockspring.
    NOTE: Do not rotate the clockspring.

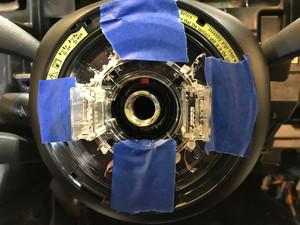

    G00630221Courtesy of TESLA, INC.

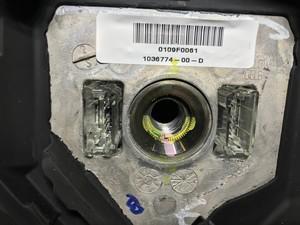

  164. Install steering wheel.
    NOTE: Ensure the position of the steering wheel matches the index marks previously made on the column and the wheel.
    G00630222Courtesy of TESLA, INC.

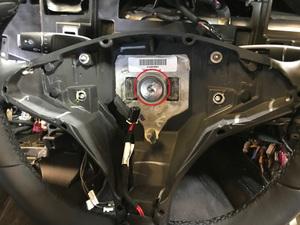

  165. Install bolt securing steering wheel to steering column.
    NOTE: 1x patch bolt, 10 mm allen, 80 N.m, Install new patch bolt.
    G00630223Courtesy of TESLA, INC.

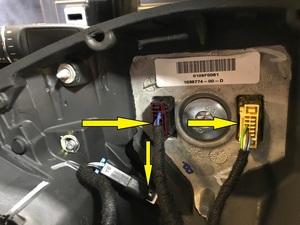

  166. Connect the drivers front airbag and steering wheel control connectors.
    NOTE: 3x connectors.
    G00630224Courtesy of TESLA, INC.

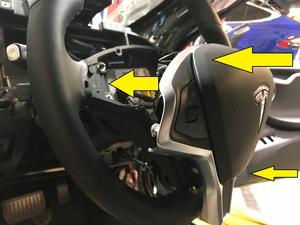

  167. Place airbag into steering wheel.
    G00630225Courtesy of TESLA, INC.

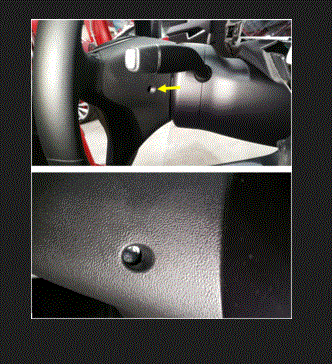

  168. Install screws securing airbag to steering wheel.
    NOTE: 2x screws, T25, 7 N.m.
    G00630226Courtesy of TESLA, INC.

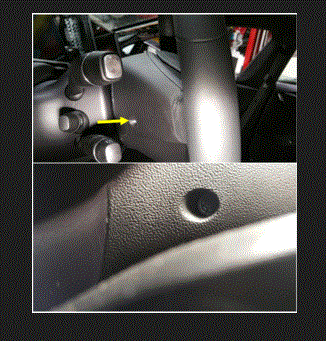

    G00630227Courtesy of TESLA, INC.
    G00630228Courtesy of TESLA, INC.
  169. Put on ESD wrist strap.
    G00630229Courtesy of TESLA, INC.

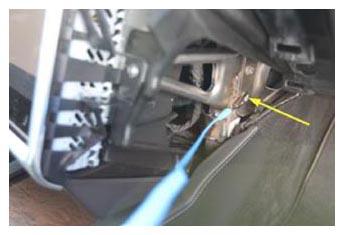

  170. Connect ESD wrist strap to vehicle ground.
    G15034664Courtesy of TESLA, INC.

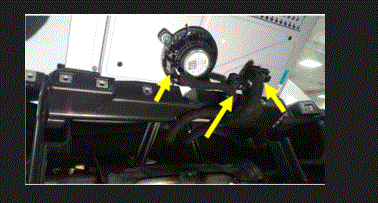

  171. Connect Instrument cluster and place IC into position for installation.
    NOTE: 3x connectors, 2x alignment dowels.
    G00630230Courtesy of TESLA, INC.

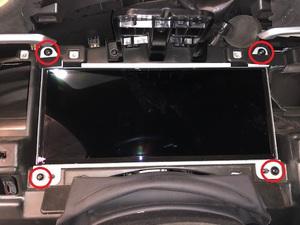

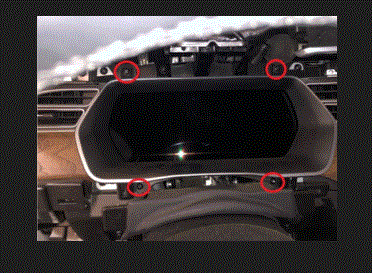

  172. Install the fasteners that secure the instrument cluster to the IP carrier.
    NOTE: 4x screws, T20, 2 N.m.
    G00630231Courtesy of TESLA, INC.
  173. Position MCU into vehicle for installation.

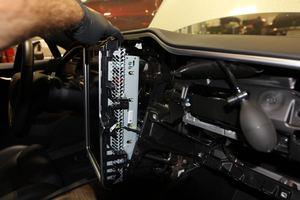

    G00630232Courtesy of TESLA, INC.
    G00630233Courtesy of TESLA, INC.

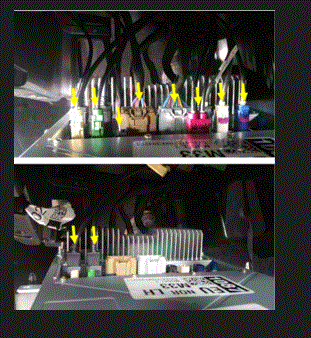

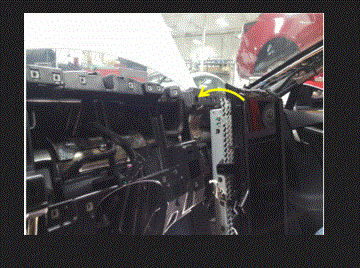

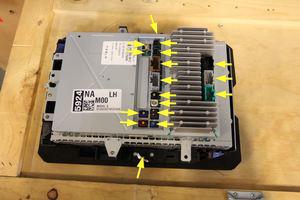

  174. Connect harness connectors to MCU.
    NOTE: 17x connectors, Number of connectors may vary depending on vehicle configuration and MCU part number revision.
    G00630234Courtesy of TESLA, INC.

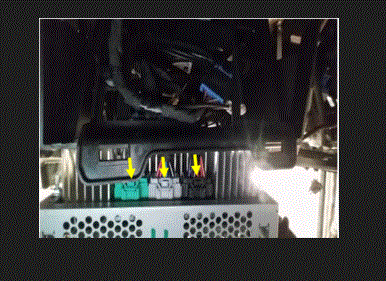

    G00630235Courtesy of TESLA, INC.
    G00630236Courtesy of TESLA, INC.

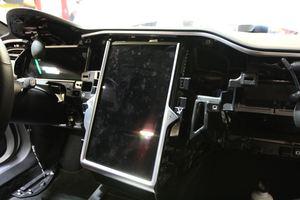

  175. Install MCU into IP carrier.
    NOTE: If necessary, gently lift IP top pad to clear the MCU ground tab and ensure the MCU seats fully back into the IP carrier.
    G00630237Courtesy of TESLA, INC.

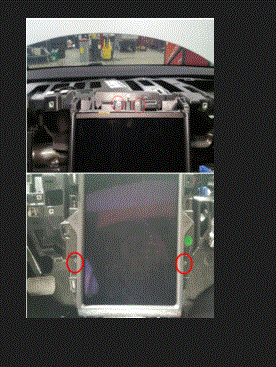

  176. Install bolts securing MCU to the IP carrier.
    NOTE: 4x screws, T25, 4.5 N.m.

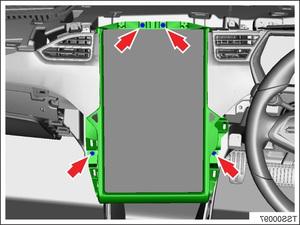

    G00630238Courtesy of TESLA, INC.
    G00630239Courtesy of TESLA, INC.
  177. Install LH side IP finisher assembly and fasteners.
    NOTE: 2x screws, T20, 2.3 N.m, 6x clips.

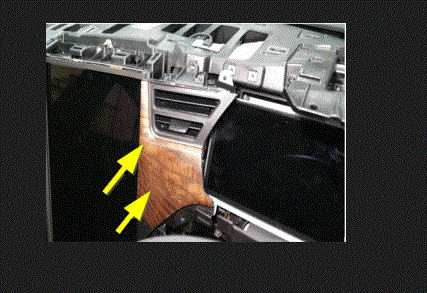

  178. Install RH inner IP finisher.
    NOTE: 3x clips.
    G00630240Courtesy of TESLA, INC.

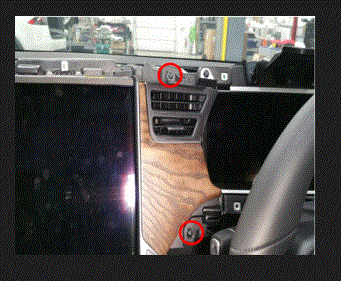

  179. Install screws securing RH inner IP finisher.
    NOTE: 2x screws, T20, 1 N.m.
    G00630241Courtesy of TESLA, INC.
  180. Install RH outer IP finisher.
    NOTE: 3x screws, T20, 2.3 N.m.
  181. Install IC bezel and fasteners to the IP carrier.
    NOTE: 4x screws, T20, 2 N.m.
    G00630242Courtesy of TESLA, INC.

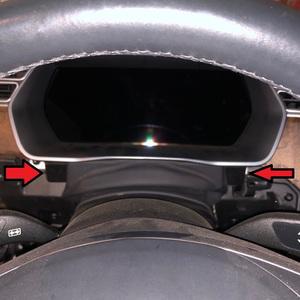

  182. Install clips securing steering column gap hider to IC bezel.
    NOTE: 2x clips, Replace any damaged or missing clips prior to installation.
    G00630243Courtesy of TESLA, INC.

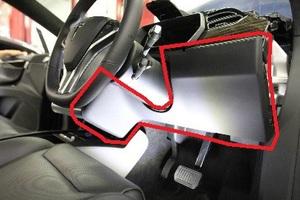

  183. Install RH side lower IP trim.
    NOTE: 1x screw, T20, 2 N.m, 10x clips, Replace any damaged or missing clips prior to installation.
    G00630244Courtesy of TESLA, INC.

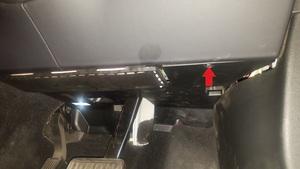

    G00630245Courtesy of TESLA, INC.
  184. Install the defrost mesh grille to IP carrier.
    NOTE: 10x clips, Replace any damaged or missing clips prior to installation.
    G00630246Courtesy of TESLA, INC.

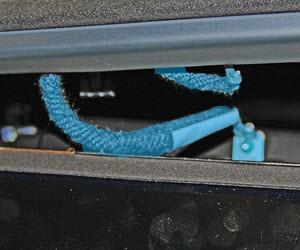

  185. Set top pad in place and connect ground strap.
    NOTE: 1x tab, Recommend assistance.
    G00630247Courtesy of TESLA, INC.

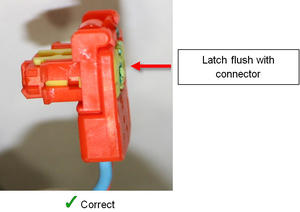

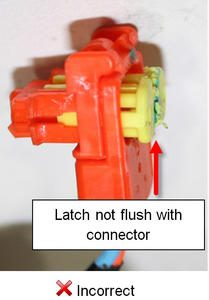

  186. Install passenger airbag connectors.
    NOTE: 2x connectors, Be sure to seat connector locks fully.
    G00630248Courtesy of TESLA, INC.
    G00630249Courtesy of TESLA, INC.

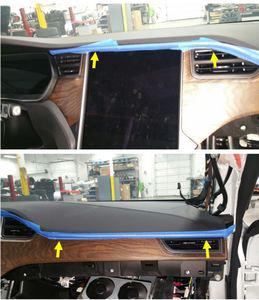

  187. Remove protective tape from aluminum trim.
    G00630250Courtesy of TESLA, INC.
  188. Fully seat top pad.
    NOTE: 23x clips, Make sure all clips are aligned and securely fastened.

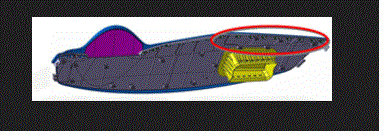

    G00630251Courtesy of TESLA, INC.
  189. Install the airbag mounting bolts.
    NOTE: 2x bolts, 10 mm, 10 N.m.

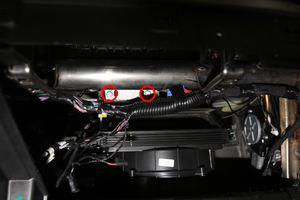

    G00630252Courtesy of TESLA, INC.

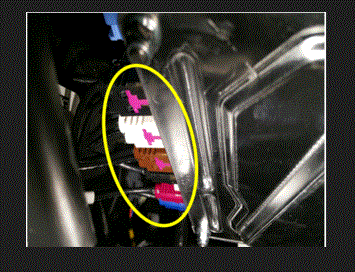

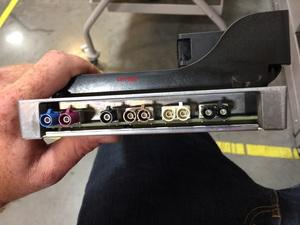

  190. Position DAS ECU for installation and secure LH side ECU connectors.
    NOTE: 7x connectors, DAS 2.5 has 6x connectors.
    G00630253Courtesy of TESLA, INC.
    G00630254Courtesy of TESLA, INC.
  191. Install fasteners securing Autopilot ECU.
    NOTE: 4x nuts, 8 mm, 5 N.m, Install new nuts.
    G00630255Courtesy of TESLA, INC.

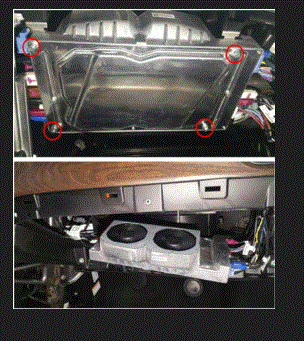

    G00630256Courtesy of TESLA, INC.

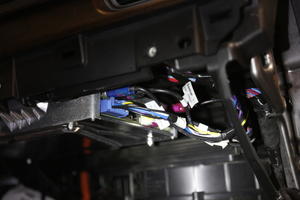

  192. Connect RH side DAS ECU connectors.
    NOTE: 7x connectors, DAS 2.0 has 4x connectors, Connector "A" must be plugged in before connector "B" when reinstalling DAS ECU.

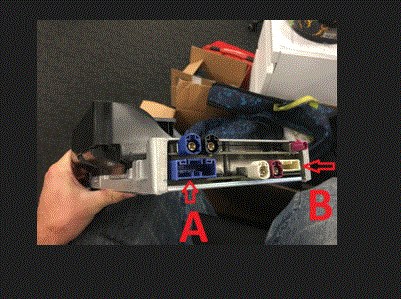

    G00630257Courtesy of TESLA, INC.
    G00630258Courtesy of TESLA, INC.

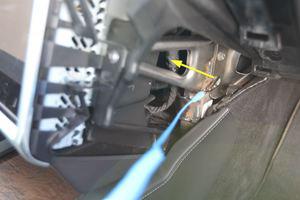

  193. Disconnect ESD wrist strap from vehicle ground.
    G00630259Courtesy of TESLA, INC.

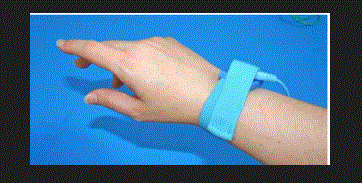

  194. Remove ESD wrist strap.
    G00630260Courtesy of TESLA, INC.

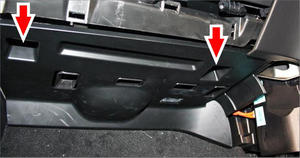

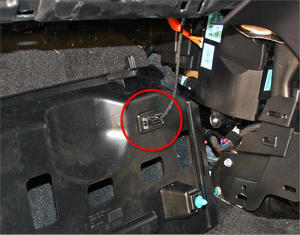

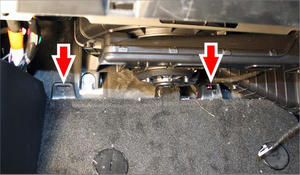

  195. Install LH footwell cover.
    NOTE: 2x tabs, 2x clips, 1x connector, Align the tabs on the footwell cover into the slots in the footwell bracket cover before securing the clips.
    G00630261Courtesy of TESLA, INC.
    G00630262Courtesy of TESLA, INC.
    G00630263Courtesy of TESLA, INC.

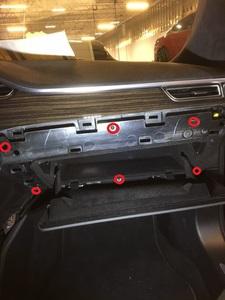

  196. Install glove box into vehicle.
    NOTE: 3x connectors, 6x screws, T20, 2.3 N.m.
    G00630264Courtesy of TESLA, INC.

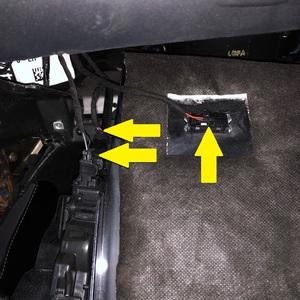

    G00630265Courtesy of TESLA, INC.
  197. Install screws securing top pad at binnacle area.
    NOTE: 2x screws, T20, 1 N.m.
    G00630266Courtesy of TESLA, INC.
  198. Install lower binnacle cover.
    NOTE: 4x clips, Replace any damaged or missing clips.

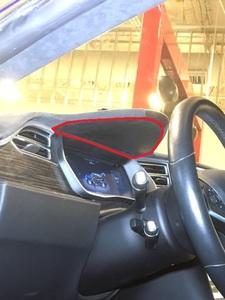

    G00630267Courtesy of TESLA, INC.

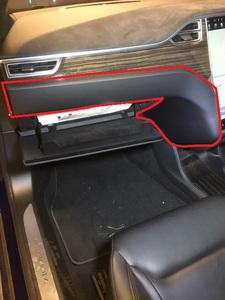

  199. Install the upper glove box trim into the vehicle.
    NOTE: 13x clips, Replace any damaged or missing clips prior to installation.
    G00630268Courtesy of TESLA, INC.
  200. Close glove box.

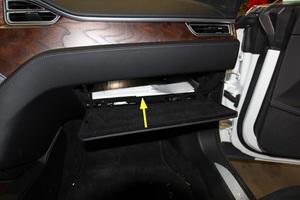

    G00630269Courtesy of TESLA, INC.
  201. Install the lower glove box trim panel.
    NOTE: 6x clips, Replace any damaged or missing clips prior to installation.

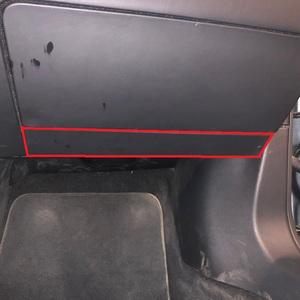

    G00630270Courtesy of TESLA, INC.
  202. Check and ensure IP top pad clips are fully seated into the IP carrier.

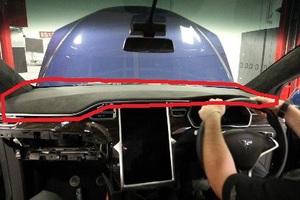

    G00630271Courtesy of TESLA, INC.

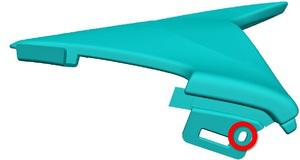

  203. Install screw that secures LH side of top pad.
    NOTE: 1x screw, T20, 1 N.m.
    G00630272Courtesy of TESLA, INC.

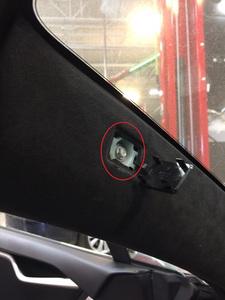

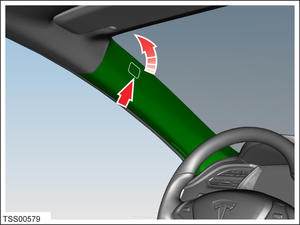

  204. Install LH upper A pillar trim.
    NOTE: 1x screw with washer, 7 mm, 2 N.m, 1x connector, 2x locating tabs, 1x clip, Reinstall A-pillar fastener trim cover after torquing the 7 mm fastener.

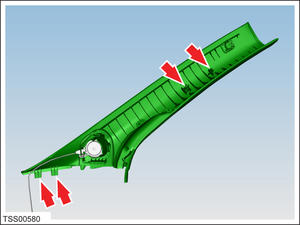

    G00630273Courtesy of TESLA, INC.
    G00630274Courtesy of TESLA, INC.
    G00630275Courtesy of TESLA, INC.

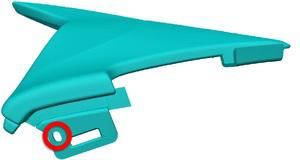

  205. Install screw securing RH side of top pad.
    NOTE: 1x screw, T20, 1 N.m.
    G00630276Courtesy of TESLA, INC.

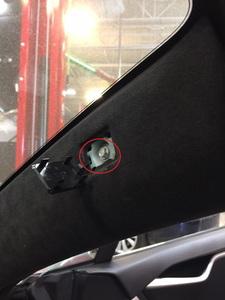

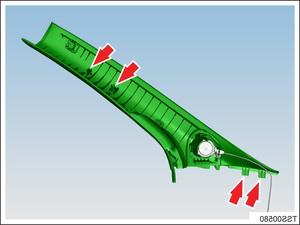

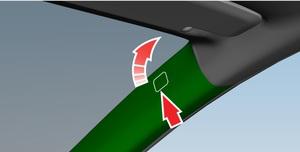

  206. Install RH upper A pillar trim.
    NOTE: 1x screw with washer, 7 mm, 2 N.m, 1x connector, 2x locating tabs, 1x clip, Reinstall A-pillar fastener trim cover after torquing the 7 mm fastener.
    G00630277Courtesy of TESLA, INC.
    G00630278Courtesy of TESLA, INC.
    G00630279Courtesy of TESLA, INC.
  207. Place center console into vehicle.
    NOTE: Recommend assistance.

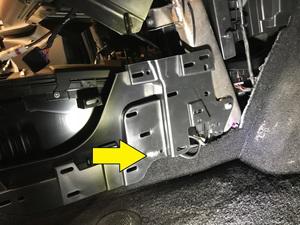

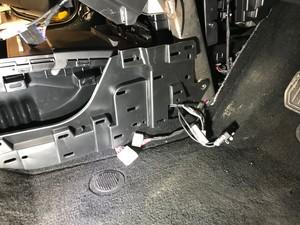

  208. Make connections at center console harness.
    NOTE: 3x connectors, 1x clip.

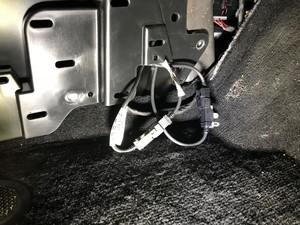

    G00630280Courtesy of TESLA, INC.
    G00630281Courtesy of TESLA, INC.
    G00630282Courtesy of TESLA, INC.

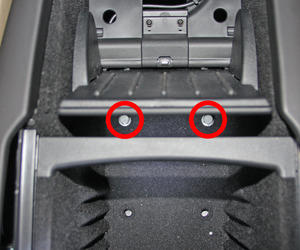

  209. Install fasteners securing center console assembly.
    NOTE: 6x bolts, 10 mm, 7 N.m, 1x screw, T20, 2 N.m.

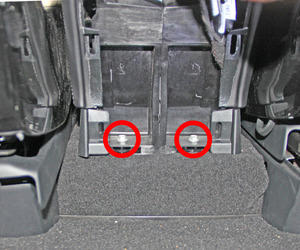

    G00630283Courtesy of TESLA, INC.

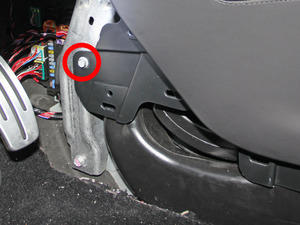

    G00630284Courtesy of TESLA, INC.
    G00630285Courtesy of TESLA, INC.
    G00630286Courtesy of TESLA, INC.
  210. Install rubber floor mat at the base of the console.
  211. Install cup holder dividers inside console.
    NOTE: if equipped.
  212. Install LH and RH center console closeout extensions.
    NOTE: 6x clips each side.
    G00630287Courtesy of TESLA, INC.

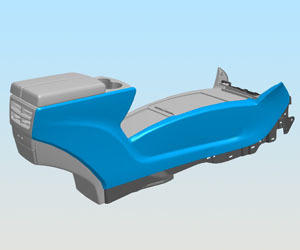

  213. Secure the center console side trim panels LH and RH.
    NOTE: 22x clips per side.
    G00630288Courtesy of TESLA, INC.

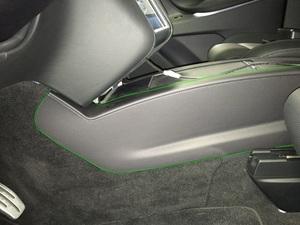

    G00630289Courtesy of TESLA, INC.

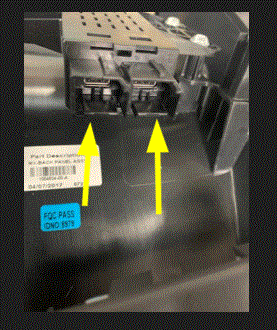

  214. Make connections to module at rear console panel.
    NOTE: 3x connectors.

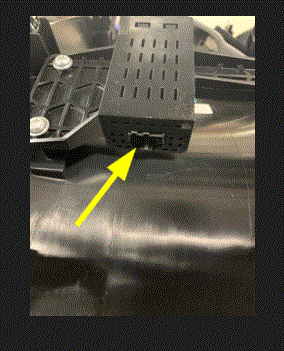

    G00630290Courtesy of TESLA, INC.
    G00630291Courtesy of TESLA, INC.
  215. Install the center console back panel.
    G00630292Courtesy of TESLA, INC.
  216. Open rear cup holder.
    G00630293Courtesy of TESLA, INC.

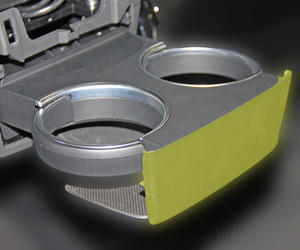

  217. Install the rear cup holder trim panel.
    G00630294Courtesy of TESLA, INC.

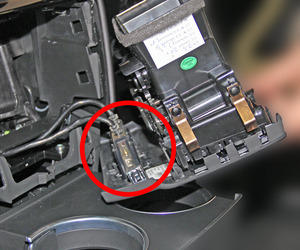

  218. Install USB ports into rear air outlet.
    G00630295Courtesy of TESLA, INC.

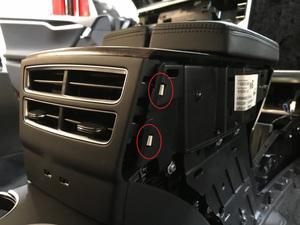

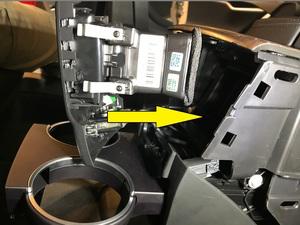

  219. Install the center console rear air outlet.
    NOTE: 2x USB connections.
    G00630296Courtesy of TESLA, INC.
    G00630297Courtesy of TESLA, INC.
    G00630298Courtesy of TESLA, INC.
  220. Close the rear cup holder.
  221. Install LH front seat into vehicle.
    NOTE: Recommend Assistance, Take care not to damage surrounding components while lifting the seat into the vehicle.

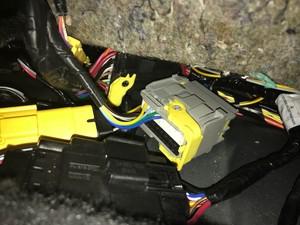

  222. Connect the LH seat connectors.
    NOTE: 3x connectors, 2x harness clips, Tuck excess harness under carpet to prevent NVH concern.
    G00630299Courtesy of TESLA, INC.
    G00630300Courtesy of TESLA, INC.
  223. Install RH front seat into vehicle.
    NOTE: Recommend Assistance, Take care not to damage surrounding components while lifting the seat into the vehicle.

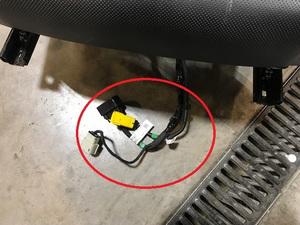

  224. Connect the RH seat connectors.
    NOTE: 3x connectors.
    G00630301Courtesy of TESLA, INC.

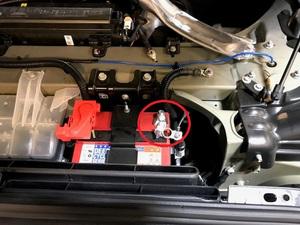

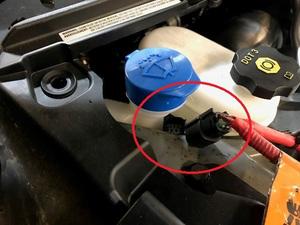

  225. Connect 12V negative and first responder loop.
    NOTE: 1x nut, 10 mm, 5 N.m, 1x connector.
    G00630302Courtesy of TESLA, INC.
    G00630303Courtesy of TESLA, INC.
  226. Remove vehicle from Tow Mode.
  227. Remove wheel chocks.
    NOTE: Ensure vehicle is in park before removing wheel chocks.

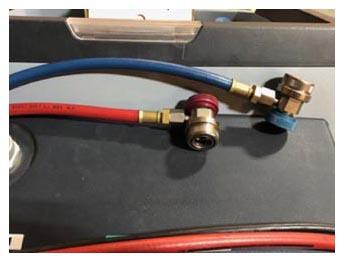

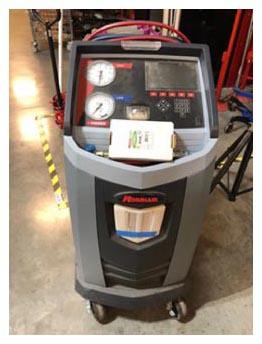

  228. Set up A/C machine and perform hose flush.
    NOTE: Touch time only.
    G15034665Courtesy of TESLA, INC.
    G15034666Courtesy of TESLA, INC.
  229. Perform A/C vacuum and leak test.
    NOTE: Touch time only. 30 minute vacuum, 10 minute leak test.
    G00630304Courtesy of TESLA, INC.
  230. Move LH front seat backward.
    G00630305Courtesy of TESLA, INC.
  231. Install bolts securing both LH front seat front tracks to vehicle.
    NOTE: 1x patch bolt, T40P, 17 N.m, 1x patch bolt, T45P, 34 N.m, Install new bolts.
    G00630306Courtesy of TESLA, INC.
  232. Install LH front seat front track covers.
    NOTE: 2x covers.
    G00630307Courtesy of TESLA, INC.
  233. Move LH front seat forward.
    G00630308Courtesy of TESLA, INC.
  234. Install bolts securing both LH front seat rear tracks to vehicle.
    NOTE: 1x patch bolt, T40P, 17 N.m, 1x patch bolt, T45P, 34 N.m, Install new bolts.
    G00630309Courtesy of TESLA, INC.
  235. Install LH front seat rear track covers.
    NOTE: 2x covers.
    G00630310Courtesy of TESLA, INC.
  236. Move LH front seat to original position.
    G00630311Courtesy of TESLA, INC.
  237. Install LH lower A-pillar trim.
    NOTE: 4x clips, The number of clips securing the A-pillar sill trim varies depending on vehicle production date, Replace any damaged or missing clips prior to re-installing sill trim.
    G00630312Courtesy of TESLA, INC.
  238. Install LH middle A-pillar trim.

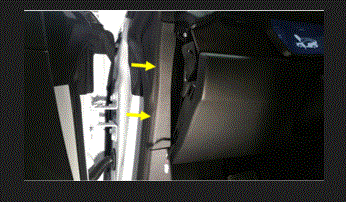

    G00630313Courtesy of TESLA, INC.

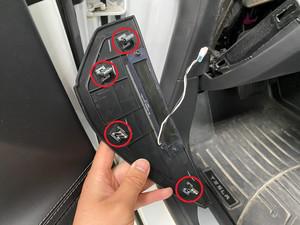

  239. Install LH side IP cover.
    NOTE: 4x clips, 1x connector.
    G00630314Courtesy of TESLA, INC.
    G00630315Courtesy of TESLA, INC.
    G00630316Courtesy of TESLA, INC.
  240. Move RH front seat backward.
    G00630317Courtesy of TESLA, INC.
  241. Install bolts securing both LH front seat front tracks to vehicle.
    NOTE: 1x patch bolt, T40P, 17 N.m, 1x patch bolt, T45P, 34 N.m, Install new bolts.
    G00630318Courtesy of TESLA, INC.
  242. Install RH front seat front track covers.
    NOTE: 2x covers.
    G00630319Courtesy of TESLA, INC.

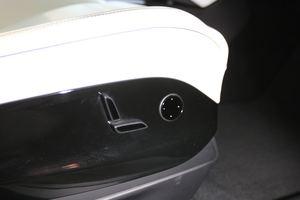

  243. Move RH front seat forward.
    G00630320Courtesy of TESLA, INC.
  244. Install bolts securing both LH front seat rear tracks to vehicle.
    NOTE: 1x patch bolt, T40P, 17 N.m, 1x patch bolt, T45P, 34 N.m, Install new bolts.
    G00630321Courtesy of TESLA, INC.
  245. Install RH front seat rear track covers.
    NOTE: 2x covers.
    G00630322Courtesy of TESLA, INC.
  246. Move RH front seat to original position.
    G00630323Courtesy of TESLA, INC.
  247. Install RH lower A-pillar trim.
    NOTE: The number of clips varies based on vehicle production range.

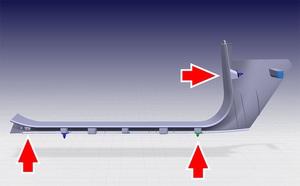

    G00630324Courtesy of TESLA, INC.

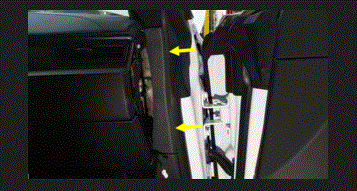

  248. Install RH middle A-pillar trim.
    G00630325Courtesy of TESLA, INC.

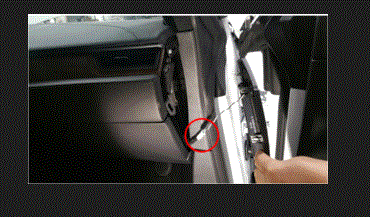

  249. Install RH IP side cover.
    NOTE: 3x clips, 1x connector.
    G00630326Courtesy of TESLA, INC.
    G00630327Courtesy of TESLA, INC.
  250. Reinstall all floor mats.
  251. Overlap from A/C vacuum and leak test.
    NOTE: Full run time: 40 minutes.
  252. Inject oil into the system.
    NOTE: Refill with the amount removed during recovery.
    G00630328Courtesy of TESLA, INC.

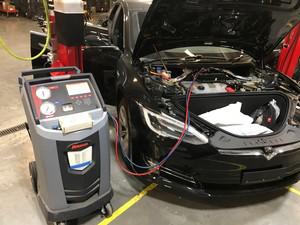

  253. Perform A/C refrigerant refill.
    NOTE: Touch time only, per fluid capacity spec.
    G00630329Courtesy of TESLA, INC.

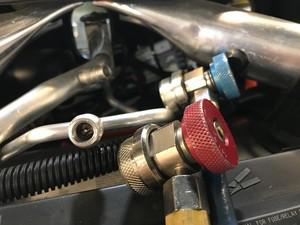

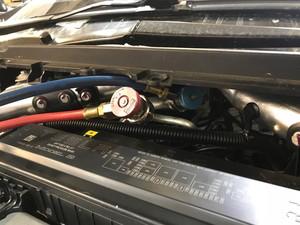

  254. Remove A/C lines from vehicle.
    NOTE: Press clear lines once lines have been removed.
    G00630330Courtesy of TESLA, INC.
    G00630331Courtesy of TESLA, INC.

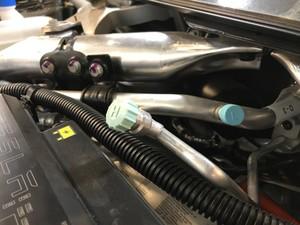

  255. Install caps onto A/C ports.
    NOTE: 2x caps.
    G00630332Courtesy of TESLA, INC.
  256. Test A/C functions in vehicle to ensure cabin cooling functions as designed.
  257. Perform A/C hose flush.
    NOTE: Touch time only. No overlap from this since the machine is disconnected from the vehicle.

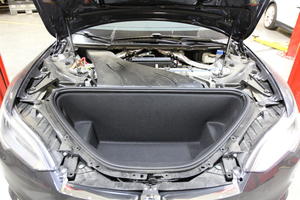

  258. Install HEPA filter outlet duct.
    G00630333Courtesy of TESLA, INC.

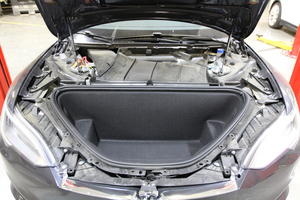

  259. Install HEPA filter inlet duct.
    NOTE: 2x tabs, One on each side.
    G00630334Courtesy of TESLA, INC.
  260. Install clips securing HEPA filter inlet duct to cowl panel.
    NOTE: 3x push clips.

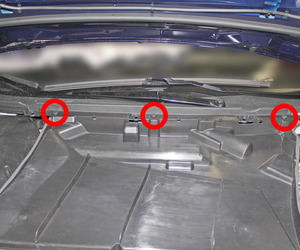

    G00630335Courtesy of TESLA, INC.

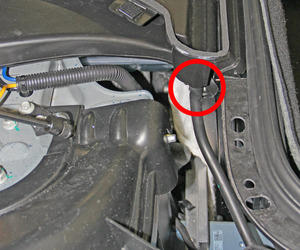

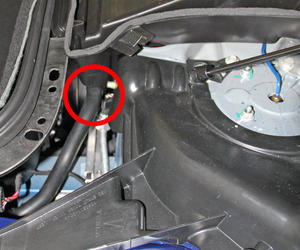

  261. Secure drainage hoses to HEPA filter inlet duct.
    NOTE: 2x hoses.
    G00630336Courtesy of TESLA, INC.
    G00630337Courtesy of TESLA, INC.

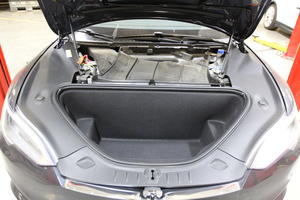

  262. Install RH underhood apron.
    NOTE: 9x clips.
    G00630338Courtesy of TESLA, INC.

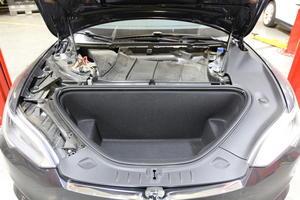

  263. Install LH underhood apron.
    NOTE: 9x clips.
    G00630339Courtesy of TESLA, INC.

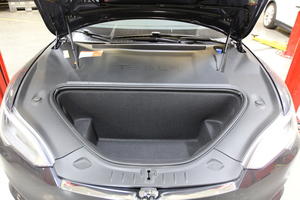

  264. Install rear underhood apron.
    NOTE: 8x clips.
    G00630340Courtesy of TESLA, INC.

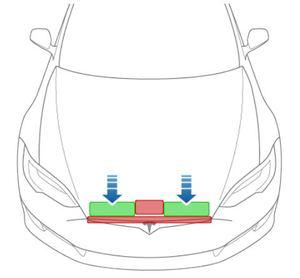

  265. Close hood.
    NOTE: Press firmly in green highlighted areas (see image), Damage may result from pressure elsewhere on hood.
    G00630341Courtesy of TESLA, INC.

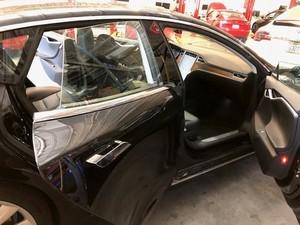

  266. Close both RH side doors.
    NOTE: Ensure door latches have been released by first pulling the interior releases prior to closing.
    G00630342Courtesy of TESLA, INC.
  267. Close LH rear door.
    NOTE: Ensure door latch has been released by first pulling the interior release prior to closing.
  268. Park vehicle on a flat surface.
    NOTE: Set suspension to Standard height and set Jack Mode (if equipped).
  269. Set up the tripod so that the bottom of the target is 3 ft (90 cm) from the ground.
    G00630343Courtesy of TESLA, INC.

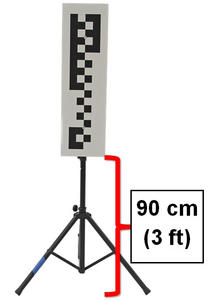

  270. Place the target against the front fascia and centered on the T badge.
    NOTE: This is "Location 1" in the Toolbox Panel.
    G00630344Courtesy of TESLA, INC.

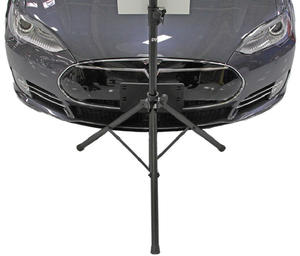

  271. Measure 90 cm back from the rear tripod leg and place marker on ground. This will be second location verification.
  272. Ensure that the target is on flat ground by examining the bubble level on the back of the target.
    G00630345Courtesy of TESLA, INC.

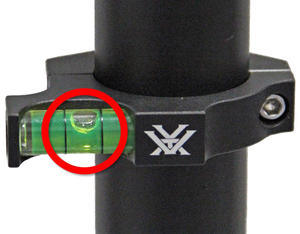

  273. Apply a piece of red tape on the target 130 cm from the ground.

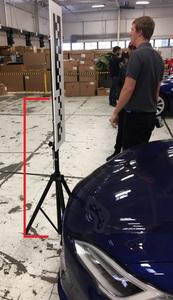

    G00630346Courtesy of TESLA, INC.
  274. Connect laptop running Toolbox to the vehicle.
    G00630347Courtesy of TESLA, INC.

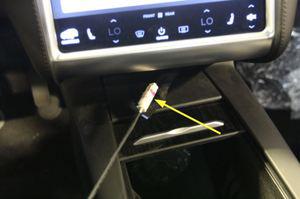

  275. Open the "DAS2 Image Viewer" panel.
    NOTE: Pathway is as follows: Panels-> Driver Assist-> DAS2 Image Viewer.
  276. Click the "Capture Image" button to take an image of the target.
  277. Zoom in on narrow and main cameras and inspect to see if tape at 130 cm from ground is between the red lines.
    NOTE: If tape at 130 cm from ground is between the red lines, continue to 2nd target location. If tape is not between lines, pitch adjustment may need to be performed.
    G00630348Courtesy of TESLA, INC.

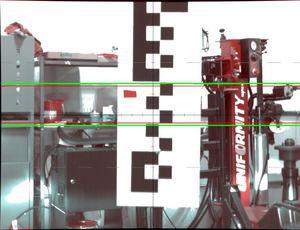

  278. Move target to 2nd marker (90 cm away from fascia).
  279. Click the "Capture Image" button to take an image of the target.
  280. Zoom in on narrow and main cameras and inspect to verify red tape at 130 cm from ground is between the red lines.
    NOTE: If tape is not between lines, pitch adjustment may need to be performed.
    G00630349Courtesy of TESLA, INC.
  281. Disconnect laptop from vehicle and reinstall storage cubby.
    G00630350Courtesy of TESLA, INC.
  282. Raise all four windows.
    G00630351Courtesy of TESLA, INC.
  283. Close LH front door.
    NOTE: Ensure door latch has been released by first pulling the interior release prior to closing.
  284. Perform vehicle road test.
    NOTE: Ensure all vehicle systems function as designed during road test, Ensure steering wheel is level when driving straight, *Per current FRT (00040100) 0.3 hrs.
scientia non olet · About LEMON Manuals
