Grille - Fascia - Front - Remove And Replace: Removal

  1. Remove the front fascia, refer to FASCIA ASSEMBLY - FRONT (REMOVE AND INSTALL) .
  2. Position front fascia assembly at a suitable working height.
  3. Remove retainers (x3) securing grill to front fascia.

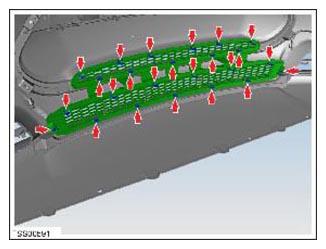

  4. Release clips (x22) securing grill to front fascia and fascia applique.
    G14974712Courtesy of TESLA, INC.
  5. Remove the grill.
