Applique - Fascia - Rear - Remove And Replace: Removal
- Remove the rear fascia assembly. See FASCIA ASSEMBLY - REAR (REMOVE AND INSTALL) .

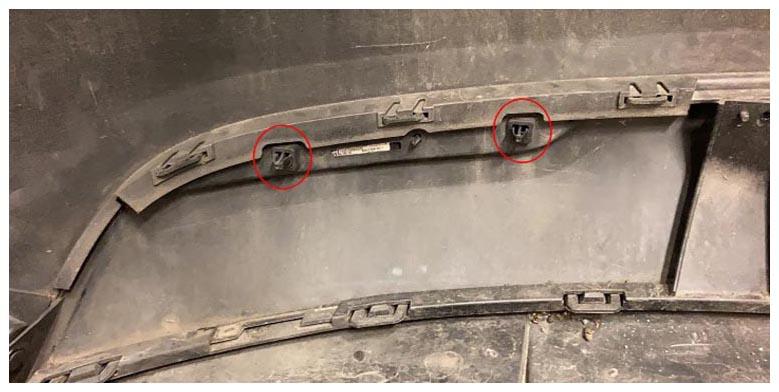

- Loosen the clips that attach the reflectors to the rear fascia applique, and then remove both reflectors.
 Courtesy of TESLA, INC.
|

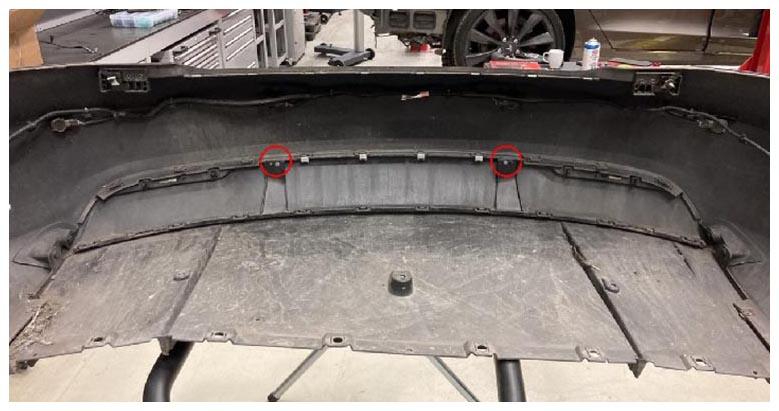

- Remove the screws (x2) that attach the diffuser to the rear fascia (torque 1.5 N.m).
 Courtesy of TESLA, INC.
|

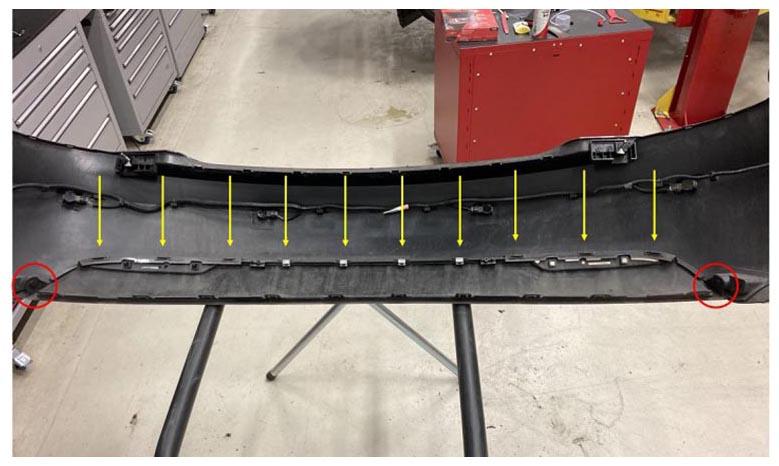

- Loosen the clips (x10) and push clips (x2) that attach the diffuser to the rear fascia and the rear fascia applique, and then remove the diffuser.
 Courtesy of TESLA, INC.
|

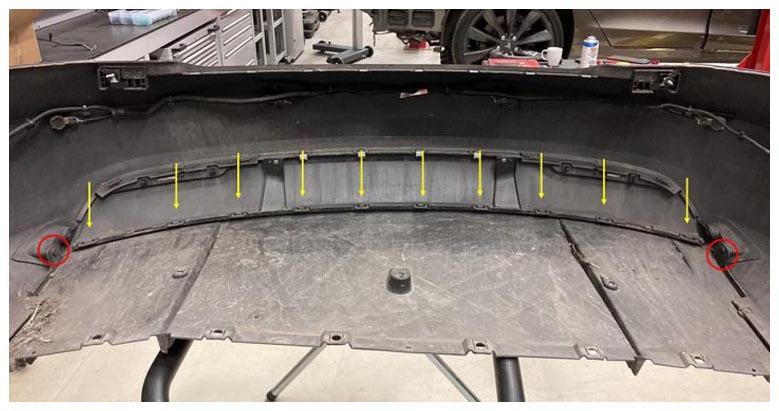

- Loosen the clips (x10) and push clips (x2) that attach the rear fascia applique to the rear fascia, and then remove the rear fascia applique.
 Courtesy of TESLA, INC.
|
