Acoustic Panel - Hood - Remove And Replace: Removal

  1. Open the hood for access.
  2. Carefully release the clips (x14) that secure the hoodliner to the hood.
    WARNING: To avoid personal injury, eye protection must be worn when performing this operation.

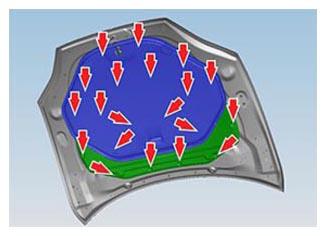

    G14974814Courtesy of TESLA, INC.
  3. Remove the hoodliner from the hood.
  4. Carefully release the clips (x6) that secure the acoustic panel to the hood.
    WARNING: To avoid personal injury, eye protection must be worn when performing this operation.

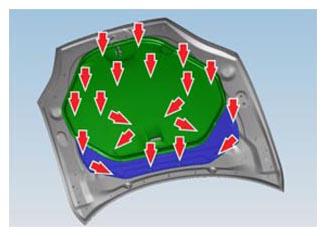

    G14974815Courtesy of TESLA, INC.
  5. Remove the acoustic panel from the hood.
