Speaker - Front Door Premium Audio - LH/RH - Remove And Replace: Removal

  1. Remove door trim panel Panel - Door Trim - Front - LH (Remove And Install)

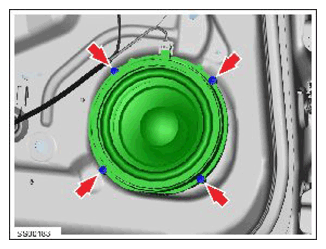

  2. Remove 4 screws securing speaker to spacer ring (torque 1.8 N.m).
  3. Remove connector from door speaker.
  4. Remove front door speaker.
  5. Remove 4 screws securing trim ring to door shell (torque 1.8 N.m).
    G14980004Courtesy of TESLA, INC.
