Trim - Touchscreen Surround - Remove And Replace: Removal

  1. Remove the MCU Media Control Unit (Remove And Install) .
  2. Remove the screws (x6) that secure the touchscreen surround (torque 4 N.m).
  3. Cut the cable tie that secures the Bluetooth antenna to the edge clip on the touchscreen surround.
  4. Remove the touchscreen surround from the MCU.
  5. Remove the screws that secure the switches to the touchscreen surround (1 N.m).
  6. Release the trim from both switches.
    CAUTION: Take care not to damage component(s).

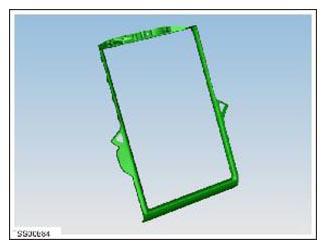

    G14976889Courtesy of TESLA, INC.
