Assembly - Mesh Grille - Defrost - Remove And Replace: Installation
- Installation procedure is the reverse of removal.

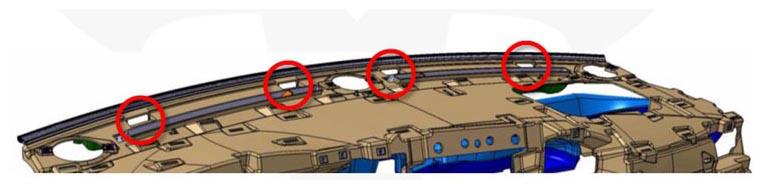

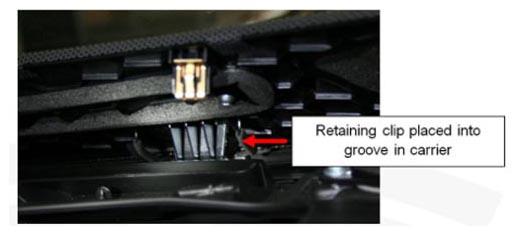

- When installing the new mesh grille, ensure that all 4 retaining clips are positioned in the corresponding grooves in the carrier before securing the trim clips.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Ensure that the passenger's front airbag is reconnected properly when reinstalling the top pad, refer to ASSEMBLY - TOP PAD - INSTRUMENT PANEL (REMOVE AND REPLACE)
- Follow the proper glove box reinstallation procedure, refer to GLOVE BOX (REMOVE AND REPLACE)
- After all procedures are complete, sit in the driver's seat and press the brake pedal to turn on the drive rails. Ensure that the airbag safety indicator light exhibits normal operation: The light displays during vehicle startup, then turns off.
