Assembly - Instrument Panel Side Cover - LH - Remove And Replace: Removal

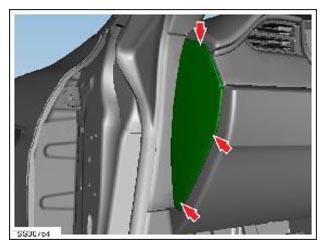

  1. Release clips (x3) securing instrument panel side cover.
    WARNING: Wear cut-resistant gloves when performing this step to avoid personal injury.
    NOTE: Components have been removed in this graphic to aid clarity.
    G14976910Courtesy of TESLA, INC.

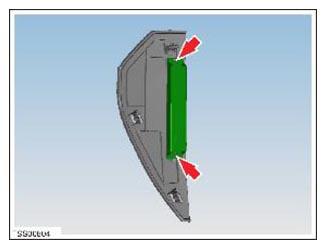

  2. Disconnect harness connector from key antenna.
    G14976911Courtesy of TESLA, INC.
  3. Remove screws (x2) securing antenna to trim (torque 1 N.m).
  4. Remove instrument panel side cover.
    CAUTION: Take care not to damage component(s).
    CAUTION: Replace any broken clips.

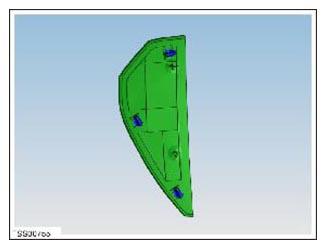

    G14976912Courtesy of TESLA, INC.
