Assembly - Bin - Storage Center Compartment - Remove And Replace: Removal

  1. Remove center console carpet.
    CAUTION: Apply contact adhesive to mating faces if bond has been broken.

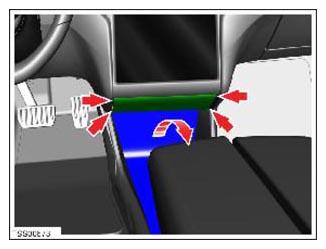

  2. Release clips (x4) securing closing panel to dash.
    CAUTION: Take care not to damage component(s).
    CAUTION: Replace any broken clips.
    G14976906Courtesy of TESLA, INC.

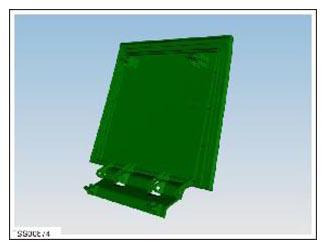

  3. Remove storage center compartment closing panel.
    G14976907Courtesy of TESLA, INC.
