Antenna - GPS - Remove And Replace: Removal

  1. Remove liftgate glazing Liftgate Glass (Remove And Replace) .
  2. Disconnect GPS harness connector.

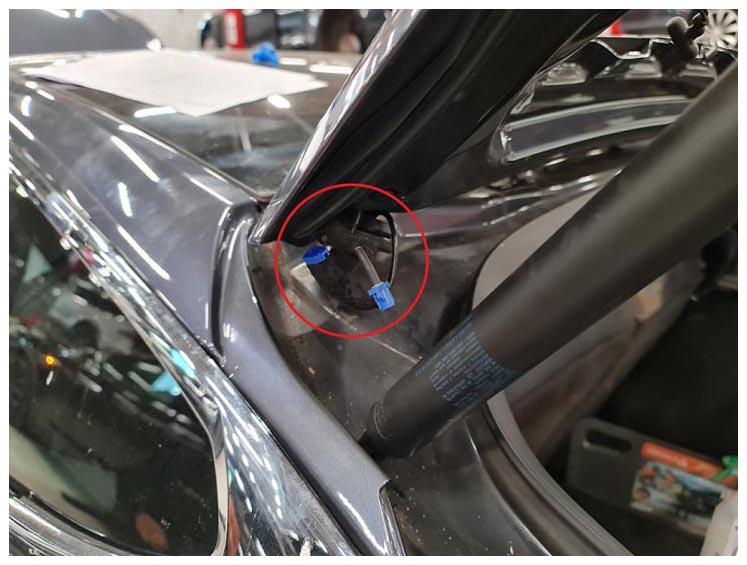

    G14980073Courtesy of TESLA, INC.
  3. Release GPS antenna from adhesive bond.
  4. Release wiring harness from liftgate.
    NOTE: Note installed position of components before removal.
  5. Remove GPS antenna.

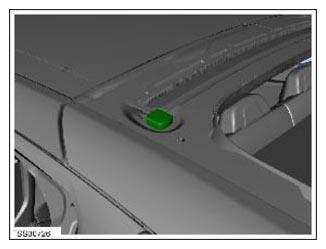

    G14980074Courtesy of TESLA, INC.
