Antenna Amplifier - AM/FM And RKE - Remove And Replace: Removal
- Remove the LH liftgate trim Finisher - Liftgate - Rear Window - Side - LH (Remove And Replace)
.

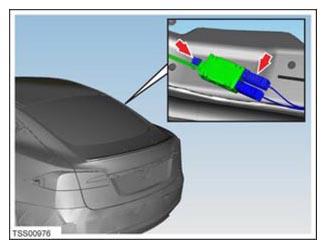

- Remove the screw that secures the amplifier to the liftgate.
- Carefully disconnect the amplifier connector.
- Release the clip that secures the amplifier to the liftgate.
NOTE:
RH side shown.
 Courtesy of TESLA, INC.
|

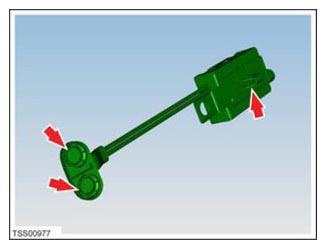

- Carefully release the antenna lead from the glass connectors (x2) and the adhesive strip that secures the amplifier to the liftgate glazing antenna.
NOTE:
RH shown.
 Courtesy of TESLA, INC.
|
- Remove the component from the vehicle.
