Horn Assembly - Remove and Replace: Remove
- Turn the steering wheel fully to the left.

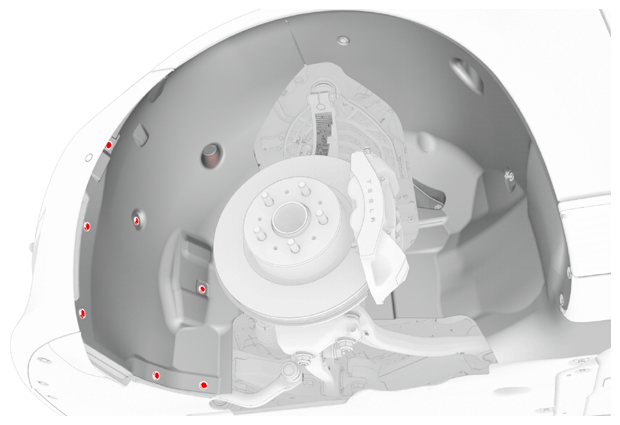

- Release the clips (x7) that attach the front portion of the LH front wheel arch liner to the vehicle, and then move the wheel arch liner towards the rear of the vehicle to perform the following steps.
 Courtesy of TESLA, INC.
|

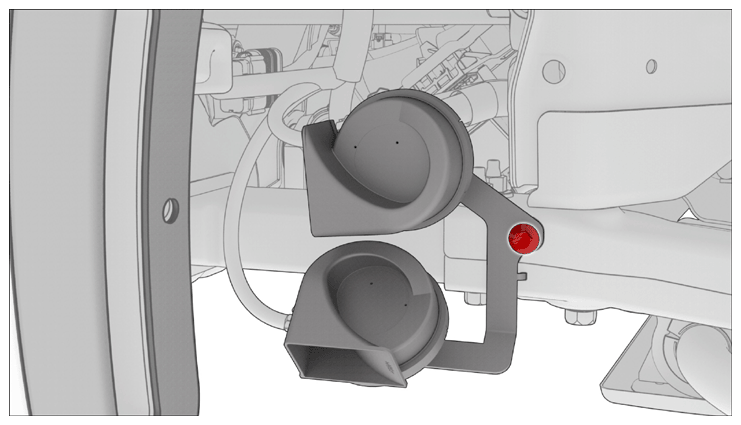

- Remove the bolt that attaches the horn assembly to the front subframe.
NOTE:
Use of the following tool(s) is recommended:
- 10 mm socket
- 6 in extension
 Courtesy of TESLA, INC.
|

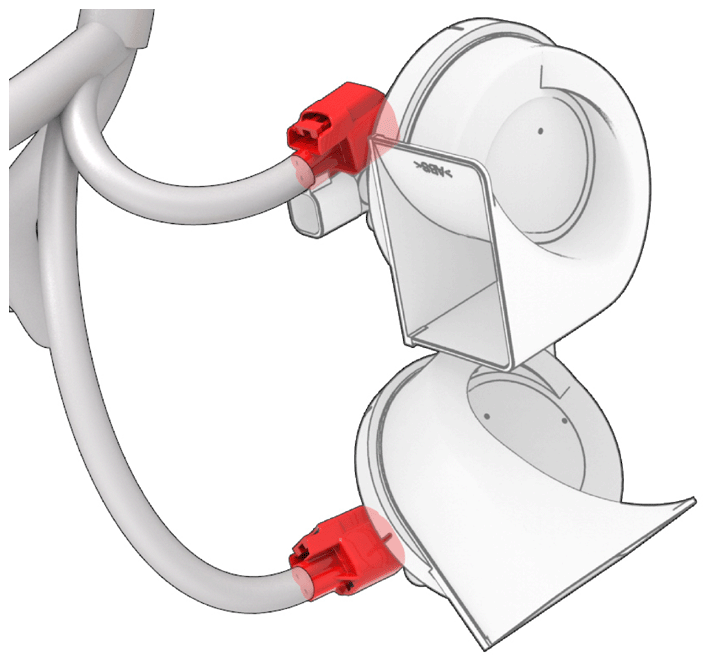

- Disconnect the electrical connectors (x2) from the horn assembly.
 Courtesy of TESLA, INC.
|
- Remove the horn assembly from the vehicle.
