Sensor - Parking Distance - Outer - Front - Remove and Replace: Remove

  1. Remove the front wheel that is closest to the front outer parking sensor that is being serviced. See WHEEL (REMOVE AND INSTALL) .
  2. Raise the vehicle to a comfortable working height.
  3. Remove the front wheel arch liner that is closest to the parking sensor that is being serviced. See WHEEL ARCH LINER - FRONT - LH (REMOVE AND REPLACE) .

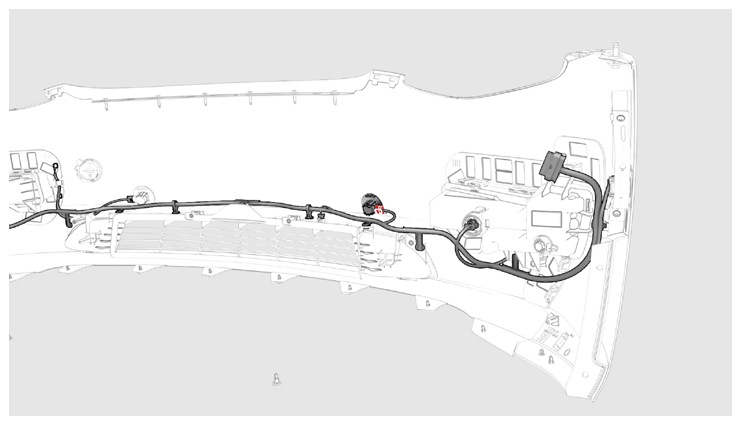

  4. Disconnect the electrical harness from the parking sensor.
    CAUTION: If the connector has a red-colored locking tab, DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
    G14744134Courtesy of TESLA, INC.

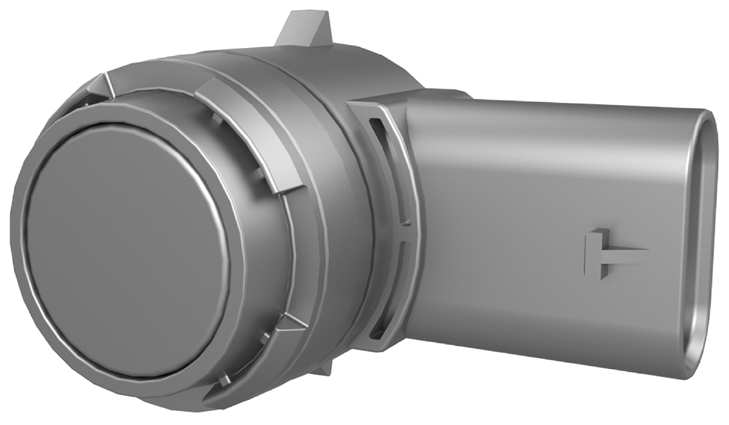

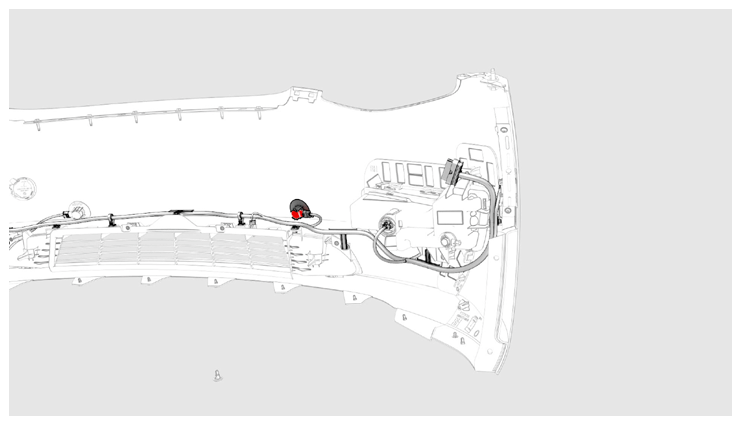

  5. Release the tabs (x2) that attach the front parking distance sensor to the front fascia, and then remove the sensor from the fascia.
    G14744135Courtesy of TESLA, INC.
    G14744136Courtesy of TESLA, INC.
