Frame - Seat Cushion - Driver Seat - Remove and Replace: Remove

  1. Remove the driver seat from the vehicle. See SEAT ASSEMBLY - 1ST ROW (LH) - REMOVE AND REPLACE .
  2. Remove the driver seat headrest trim. See Trim - Headrest - Driver (Remove and Replace) .
  3. Remove the driver seat outboard side shield. See Side Shield - Outboard - Driver Seat (Remove and Replace) .
  4. Remove the driver seat inboard side shield. See Side Shield - Inboard - Driver Seat (Remove and Replace) .
  5. Remove the driver seat back shell. See Shell - Seat Back - Driver (Remove and Replace) .

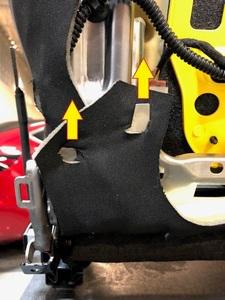

  6. Unhook the lower flaps that cover the LH and RH lower corners of the seat back frame.
    G00622443Courtesy of TESLA, INC.

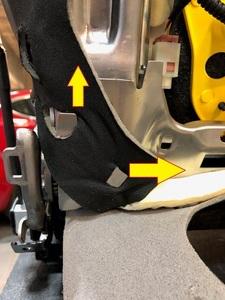

  7. Unhook the upper flaps that cover the LH and RH lower corners of the seat back frame.

    Tip: Pull the lower section of trim away from the retaining tab to release, then pull the trim straight up off of the upper retaining tab

    G00622444Courtesy of TESLA, INC.

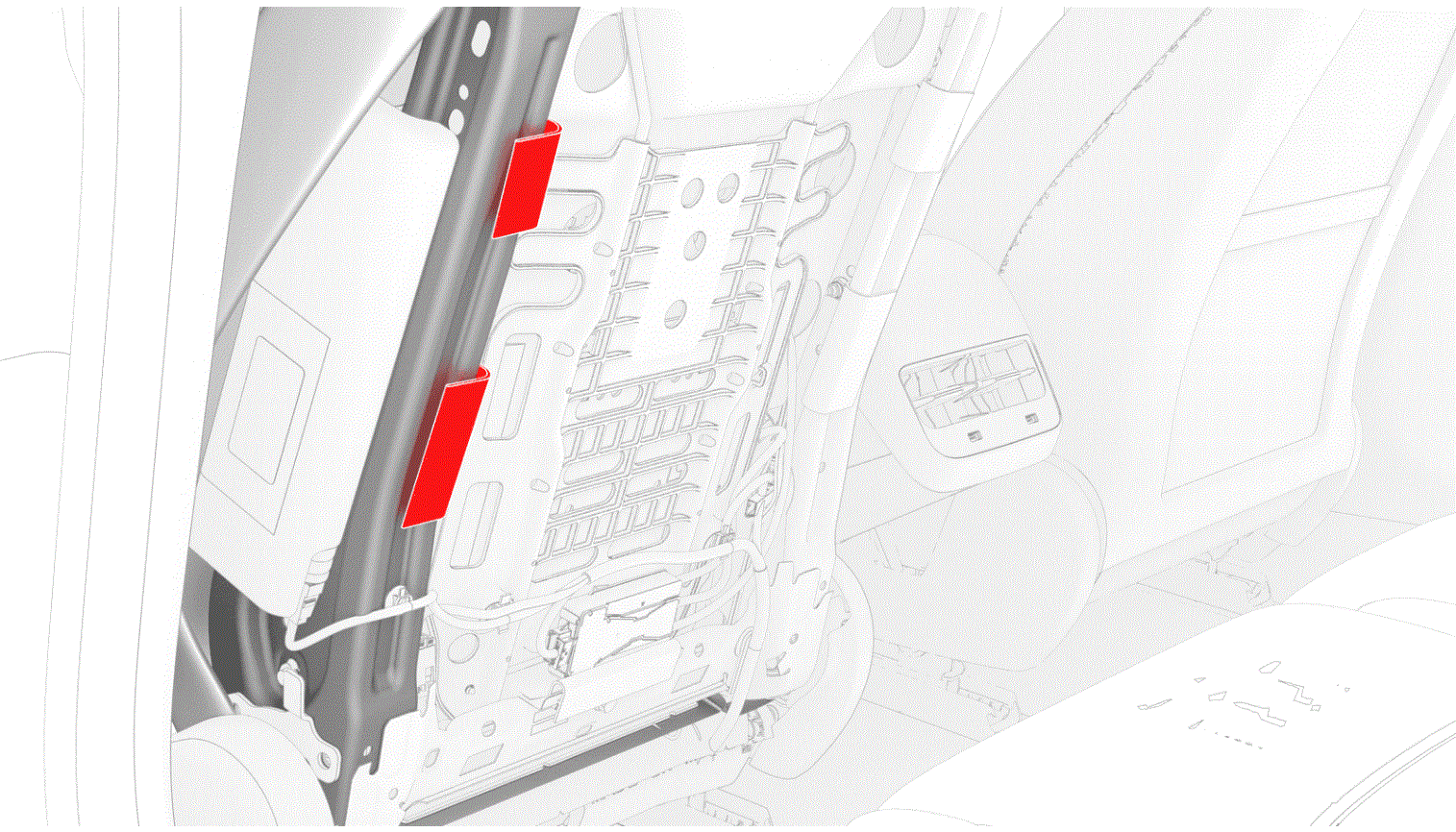

  8. Remove the outer clips securing the seat upholstery to the seat back frame.
    NOTE: 2x clips, To release, rotate the clips off of the frame from the inside out
    G00650737Courtesy of TESLA, INC.

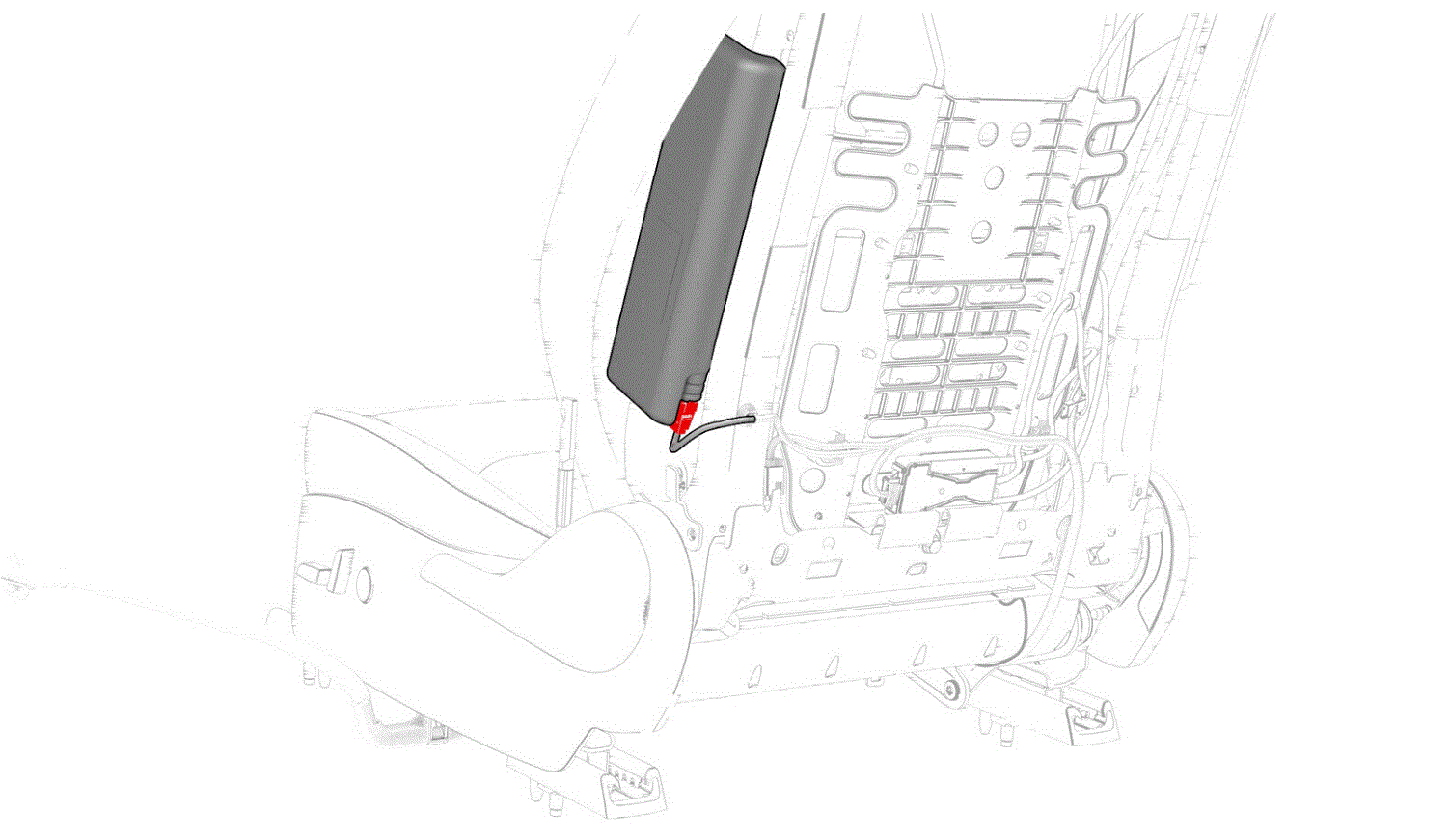

  9. Pull LH front seat upholstery away from the air bag to gain access to the air bag electrical connector.
    NOTE: Pull the orange tabs down to release the connector.
    G00650738Courtesy of TESLA, INC.

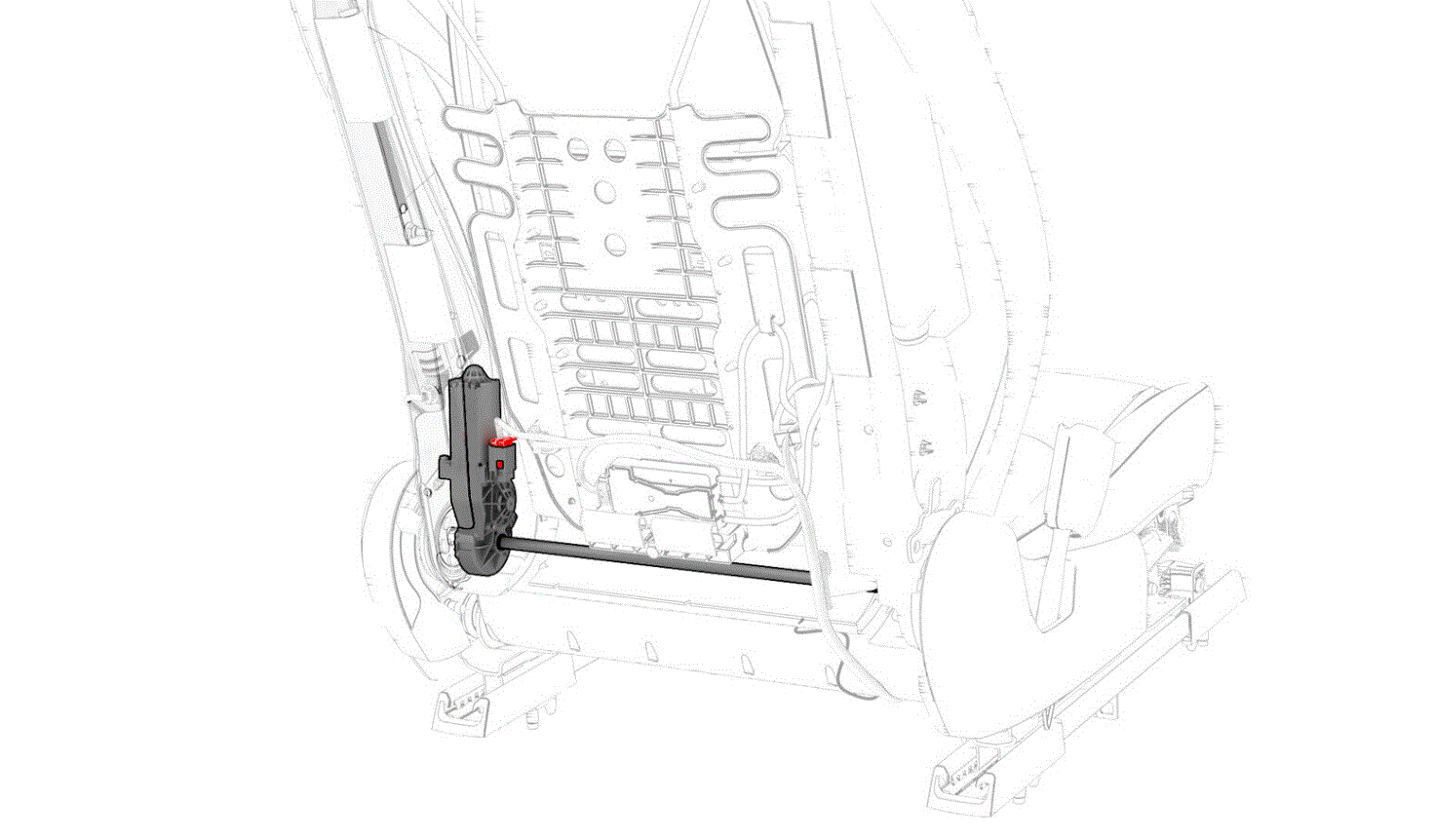

  10. Disconnect the electrical harness from the recliner motor connector.
    G00650739Courtesy of TESLA, INC.

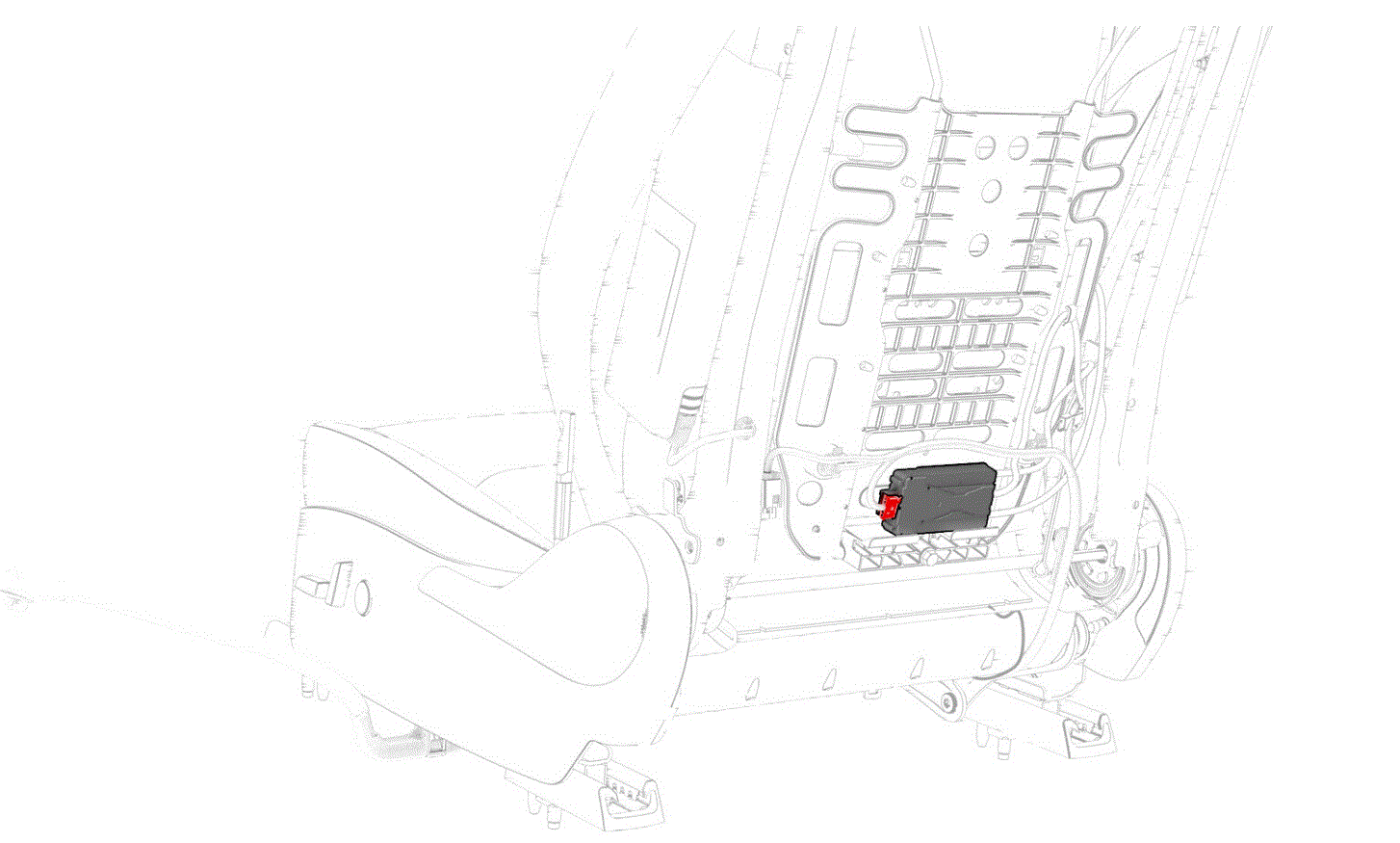

  11. Disconnect the electrical harness from the lumbar valve pack and ECU.
    G00650740Courtesy of TESLA, INC.

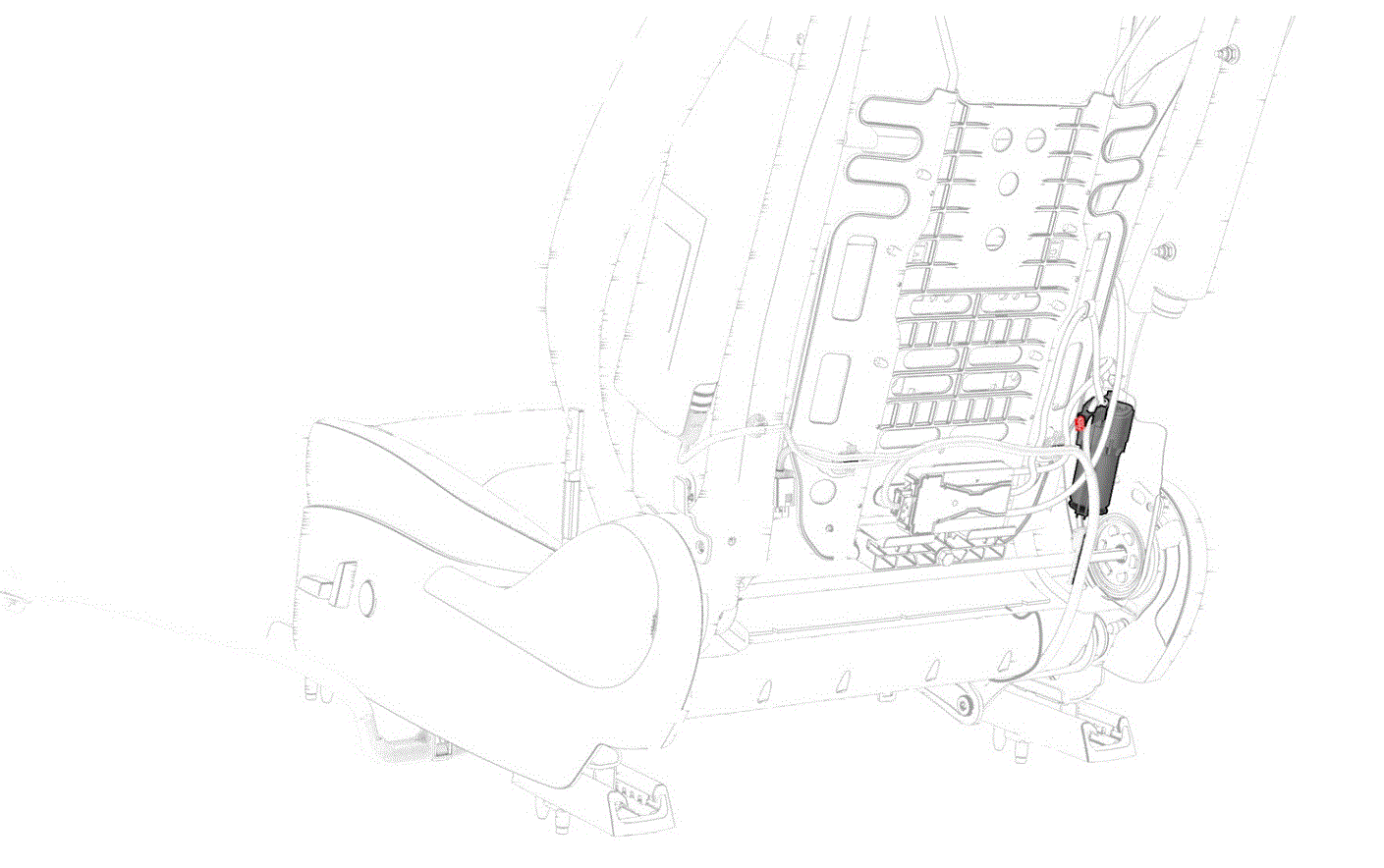

  12. Disconnect the electrical harness from the lumbar pump connector.
    G00650741Courtesy of TESLA, INC.
  13. Release the clips that attach the electrical harness to the seat frame.

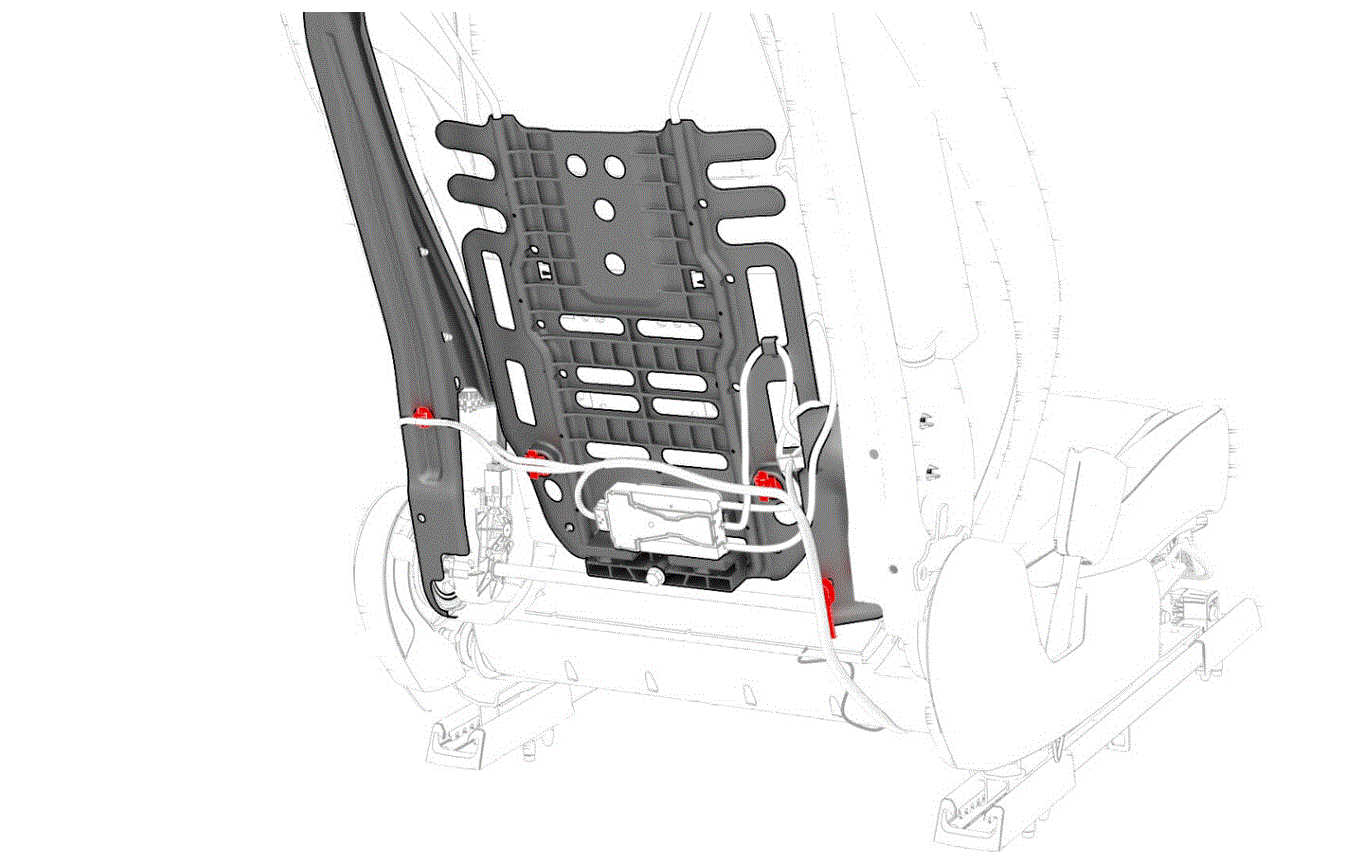

    G00650742Courtesy of TESLA, INC.
  14. Position the seat to gain access to the underside.

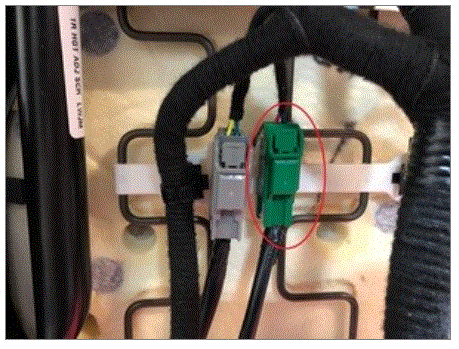

  15. Disconnect the driver seat seat back heater electrical connector.
    G00650743Courtesy of TESLA, INC.

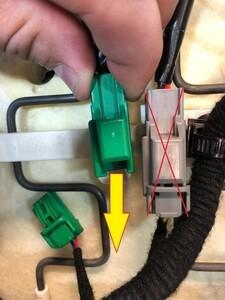

  16. Release driver seat seat back harness connector from the seat bottom.
    G00622459Courtesy of TESLA, INC.

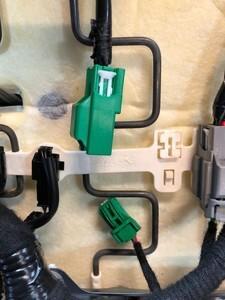

    G00622460Courtesy of TESLA, INC.
  17. Position the seat assembly upright.

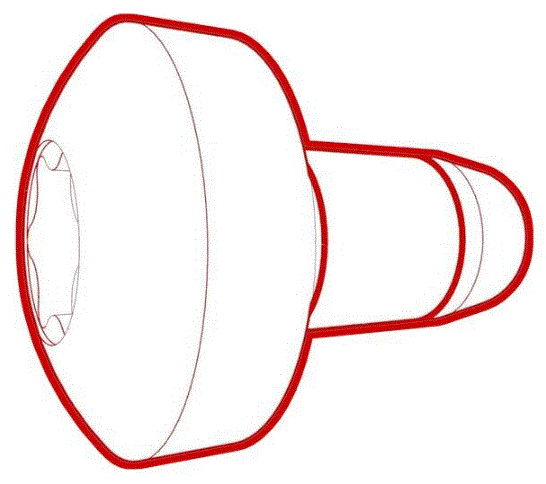

  18. Remove and discard the bolts (x2) that attach the LH side of the driver seat seat back frame to the seat cushion frame.

    43 Nm (31.7 lbs-ft)

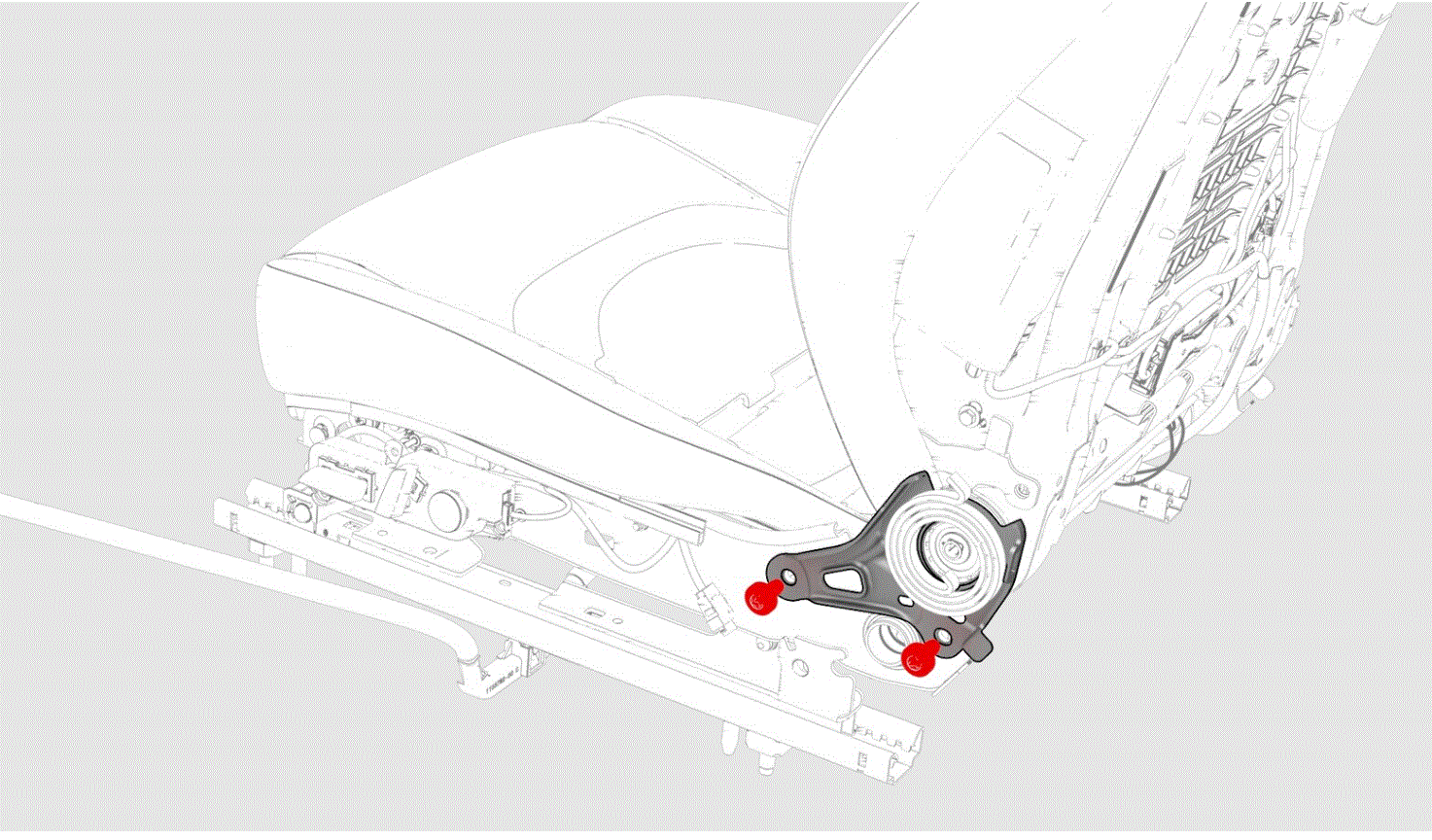

    G00650744Courtesy of TESLA, INC.
  19. Remove and discard the patchbolt that attaches the buckle to the seat track, and then remove the buckle.

    40 Nm (29.5 lbs-ft)

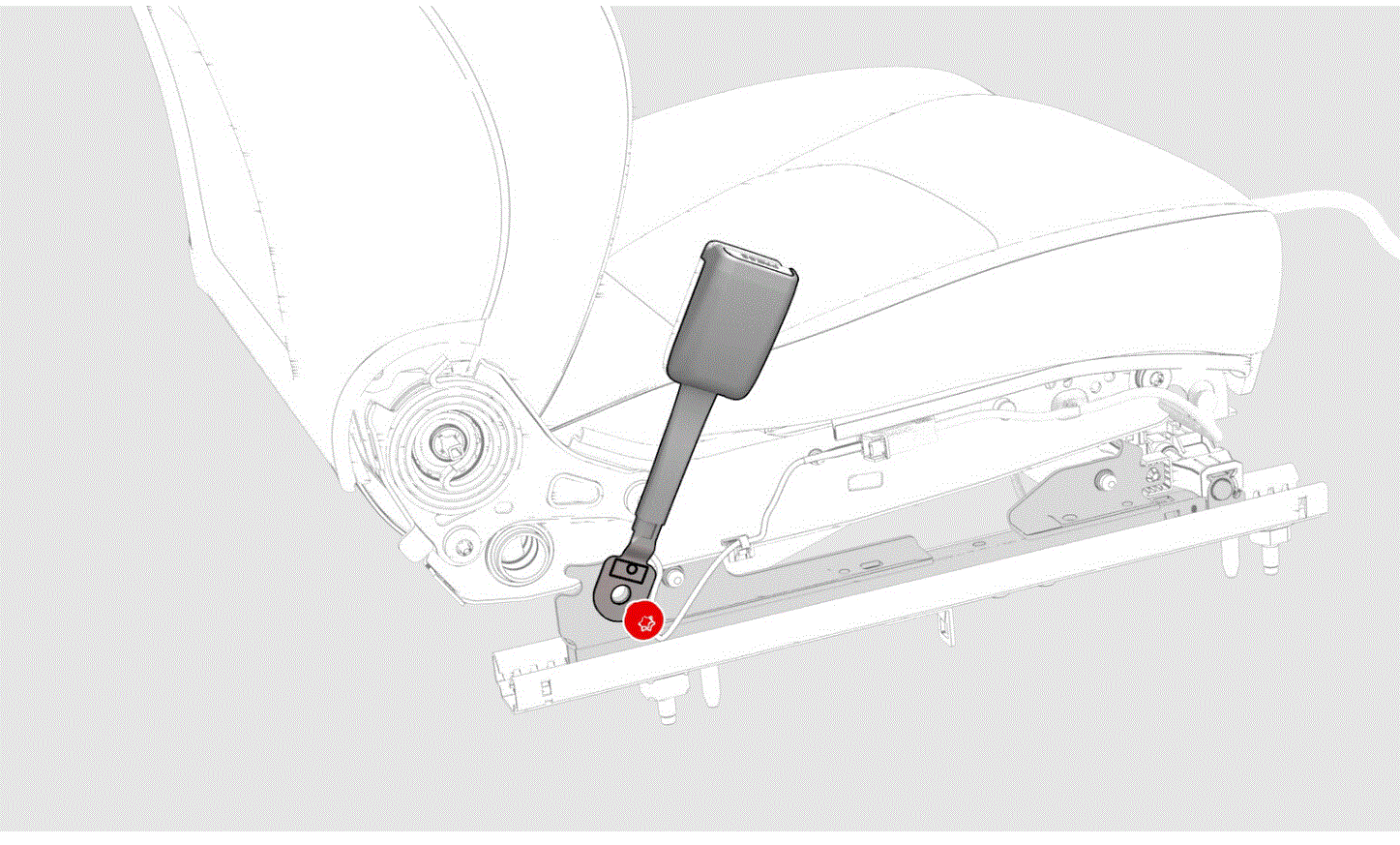

    G00650745Courtesy of TESLA, INC.

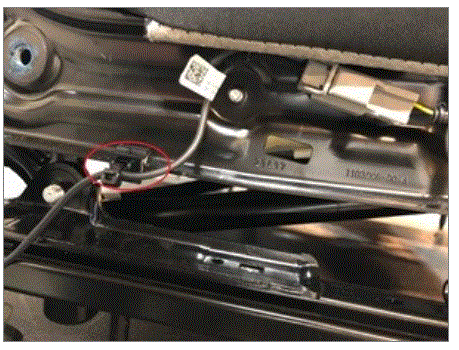

  20. Release the seat belt buckle harness clip from the seat frame.
    G00650746Courtesy of TESLA, INC.

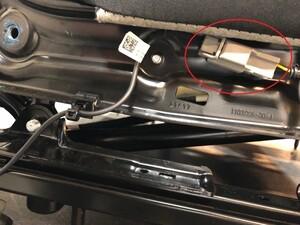

  21. Disconnect the seat belt buckle electrical connector, and then set the seat belt buckle aside.
    G00622465Courtesy of TESLA, INC.

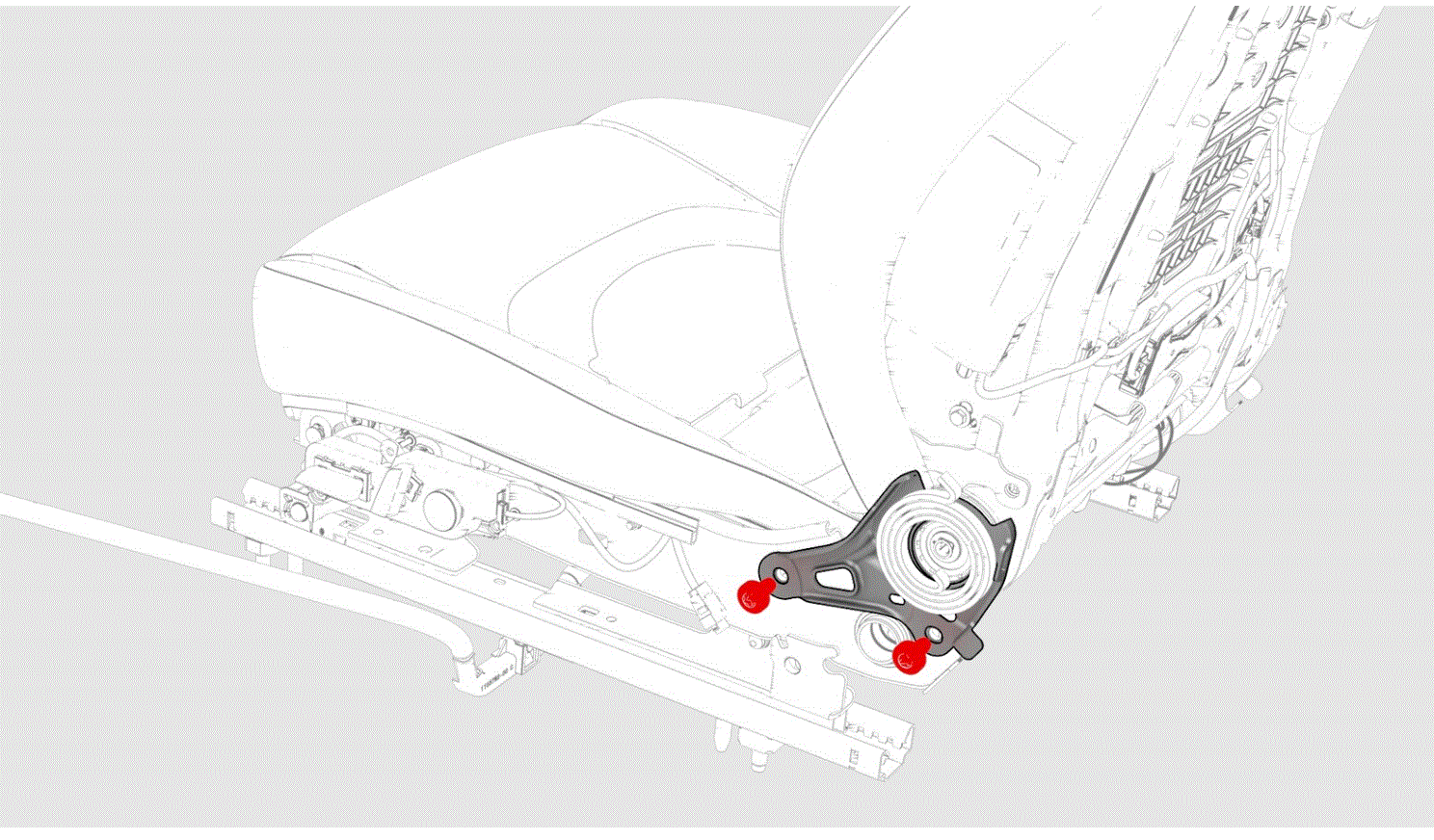

  22. Remove and discard the bolts (x2) that attach the RH side of the driver seat seat back frame to the seat cushion frame.

    43 Nm (31.7 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • T50 socket
    G00650747Courtesy of TESLA, INC.

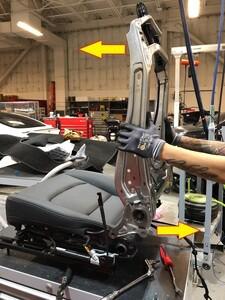

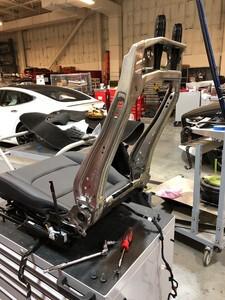

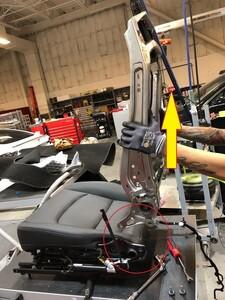

  23. Rotate the seat back frame away from the cushion frame, and then lift the back seat frame upwards to remove it from the cushion frame.
    G00622467Courtesy of TESLA, INC.
    G00622468Courtesy of TESLA, INC.
    G00622469Courtesy of TESLA, INC.
  24. Turn the seat bottom over for access.
    CAUTION: Protect the seat cushion from damage.

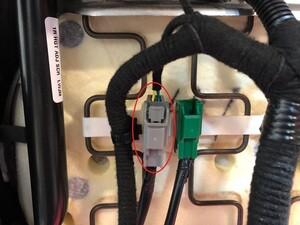

  25. Disconnect the heat pad electrical connector.
    G00622471Courtesy of TESLA, INC.
  26. Release the clip that attaches the heat pad connector to the seat bottom.
    NOTE: Slide connector forward to release from seat bottom
    G00622472Courtesy of TESLA, INC.
    G00622473Courtesy of TESLA, INC.
    G00622474Courtesy of TESLA, INC.

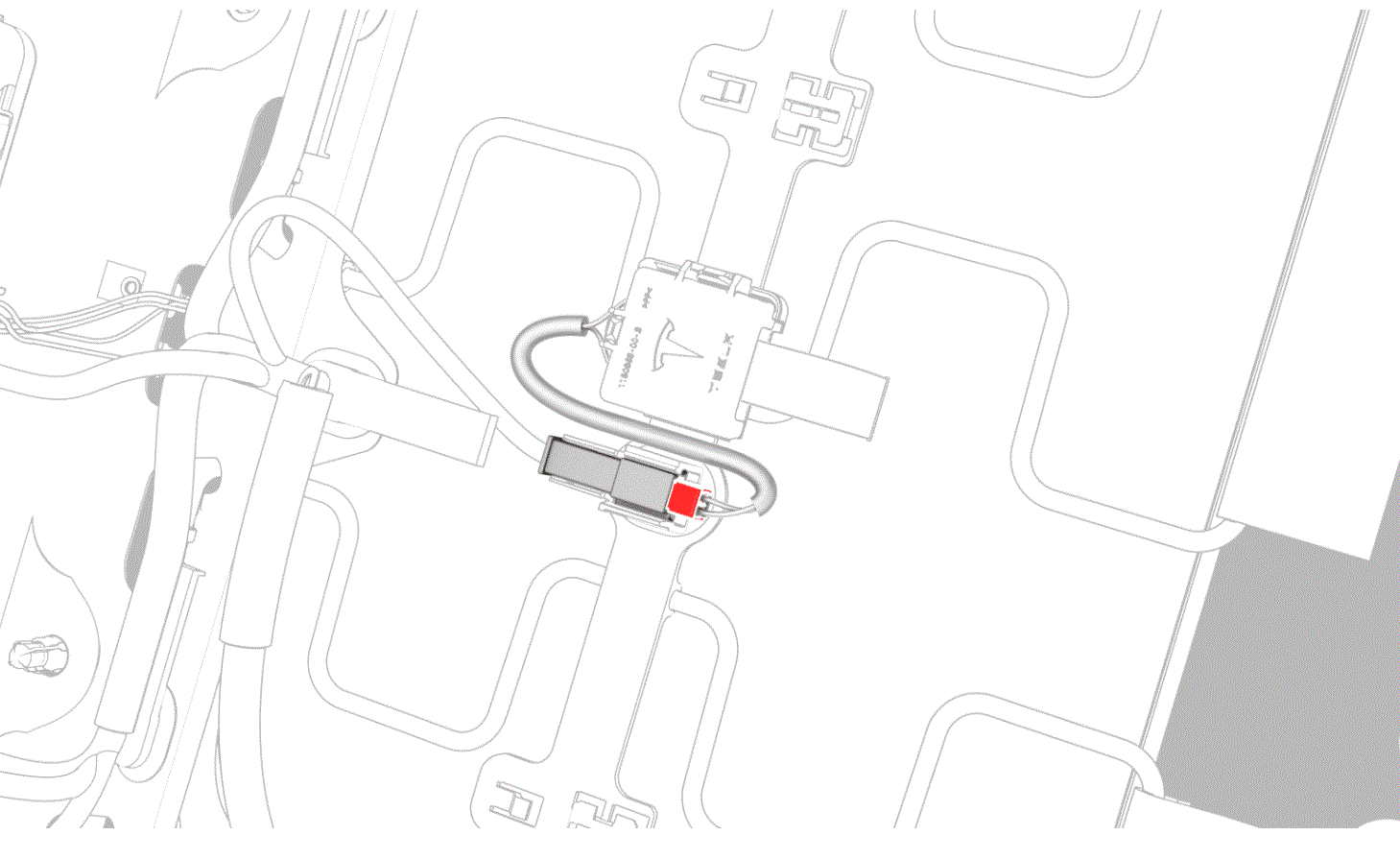

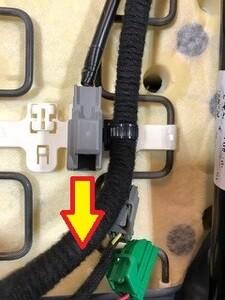

  27. Disconnect the electrical harness from the seat occupied sensor connector.
    G00650748Courtesy of TESLA, INC.
  28. Release the clip that attaches the seat occupied sensor to the seat underside, and then separate the sensor from the seat underside.

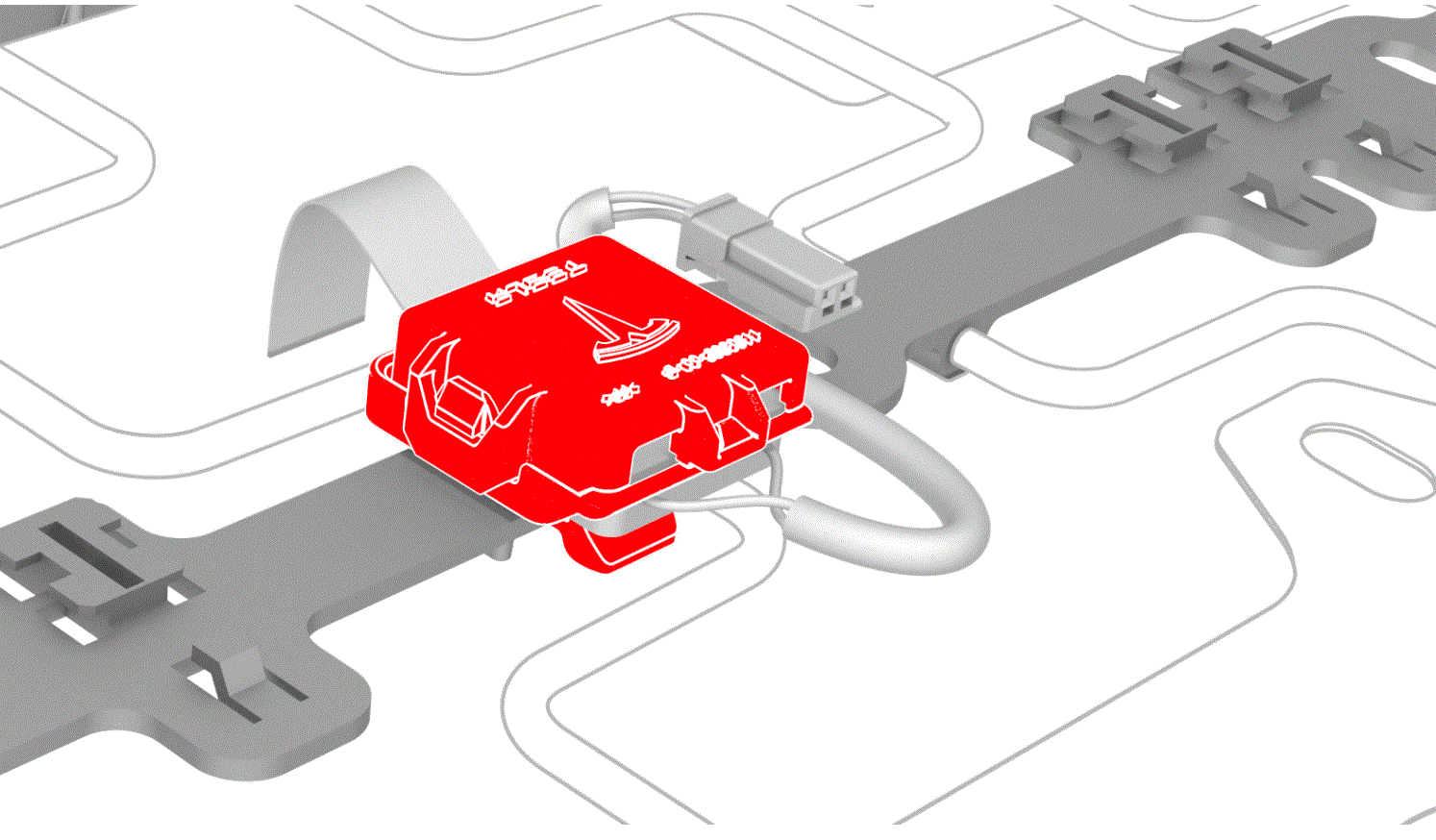

    G00650749Courtesy of TESLA, INC.

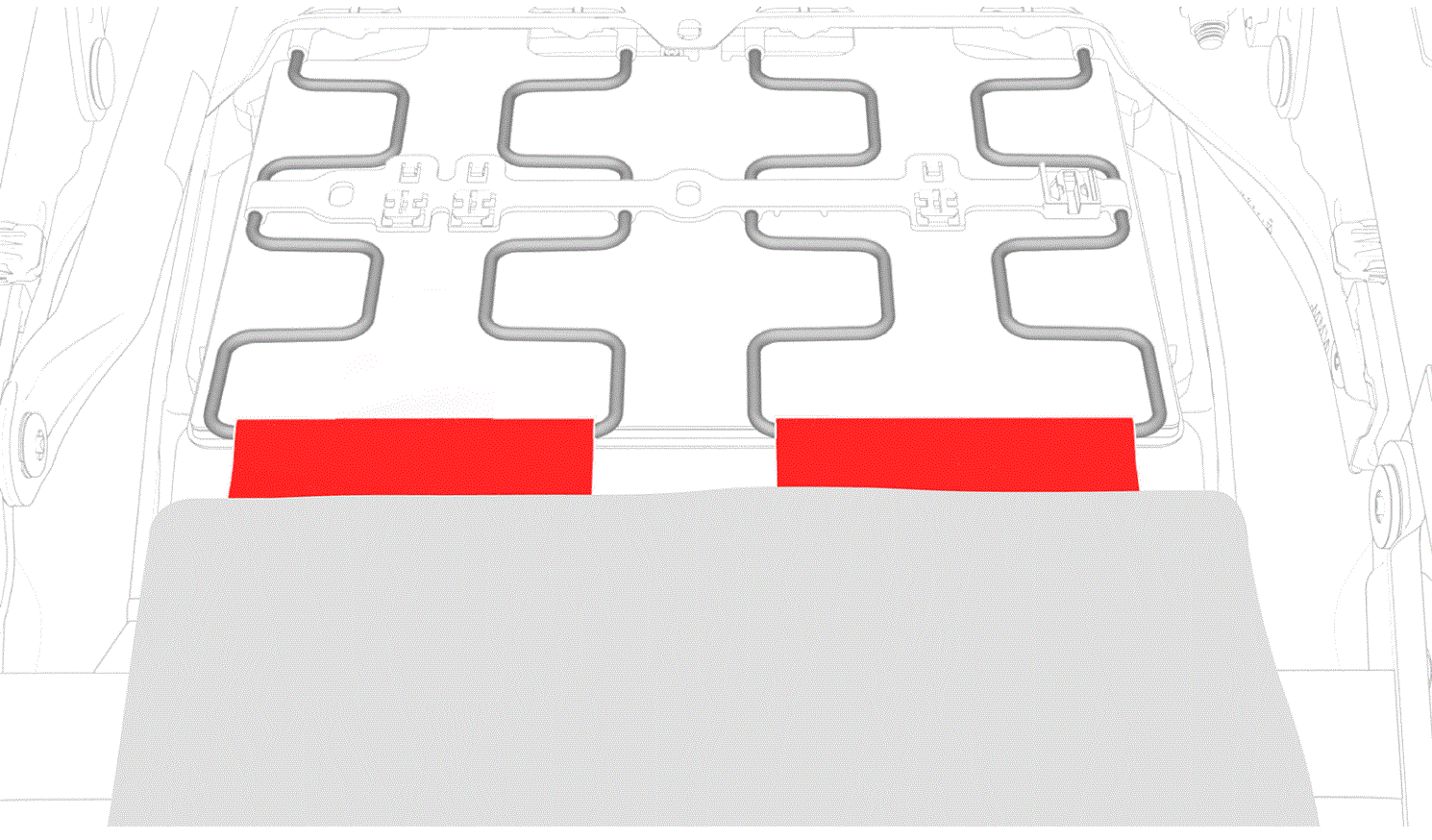

  29. Release the clips (x2) that attach the seat cushion foam to the seat suspension.
    G00650750Courtesy of TESLA, INC.

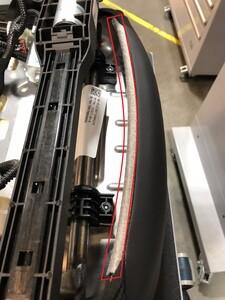

  30. Remove the front retaining clip from the seat cushion frame securing the front of the seat trim to the frame.
    NOTE: 1x clip strip. May need to start with a hook tool. Pull the clip away from the frame to release.

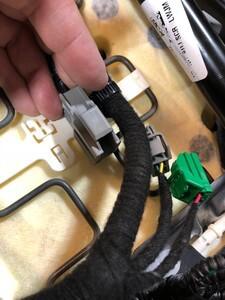

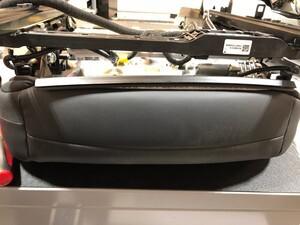

    G00622479Courtesy of TESLA, INC.
    G00622480Courtesy of TESLA, INC.
    G00622481Courtesy of TESLA, INC.

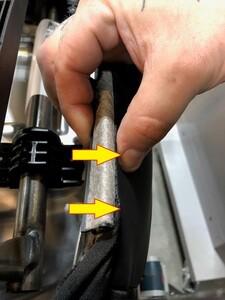

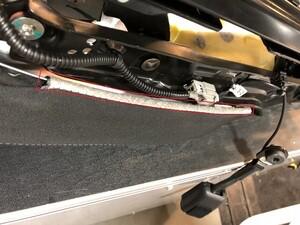

  31. Remove the inboard retaining clip from the seat cushion frame securing the side of the seat trim to the frame
    NOTE: 1x clip strip. May need to start with a hook tool. Pull the clip away from the frame to release.
    G00622482Courtesy of TESLA, INC.
    G00622481Courtesy of TESLA, INC.
  32. Remove the outboard retaining clip from the seat cushion frame securing the side of the seat trim to the frame.
    NOTE: 1x clip strip. May need to start with a hook tool. Pull the clip away from the frame to release.

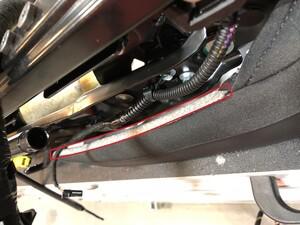

    G00622483Courtesy of TESLA, INC.
    G00622481Courtesy of TESLA, INC.

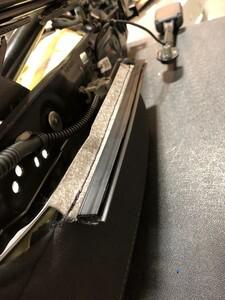

    G00622484Courtesy of TESLA, INC.

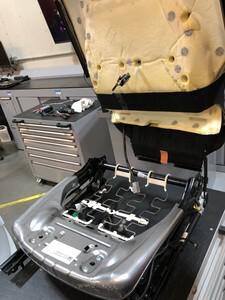

  33. Remove the cushion pad assembly from the seat frame assembly.
    NOTE: Lift the cushion straight off, Ensure the heating pad and seat occupied sensor harnesses are clear of the seat

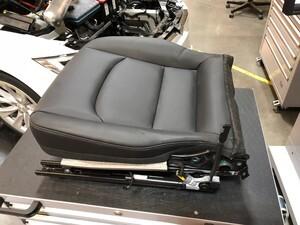

    G00622485Courtesy of TESLA, INC.
    G00622486Courtesy of TESLA, INC.
    G00622487Courtesy of TESLA, INC.

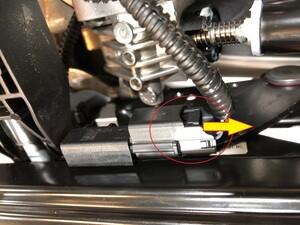

  34. Disconnect seat track position sensor.
    NOTE: 1x connector.
    G00622488Courtesy of TESLA, INC.

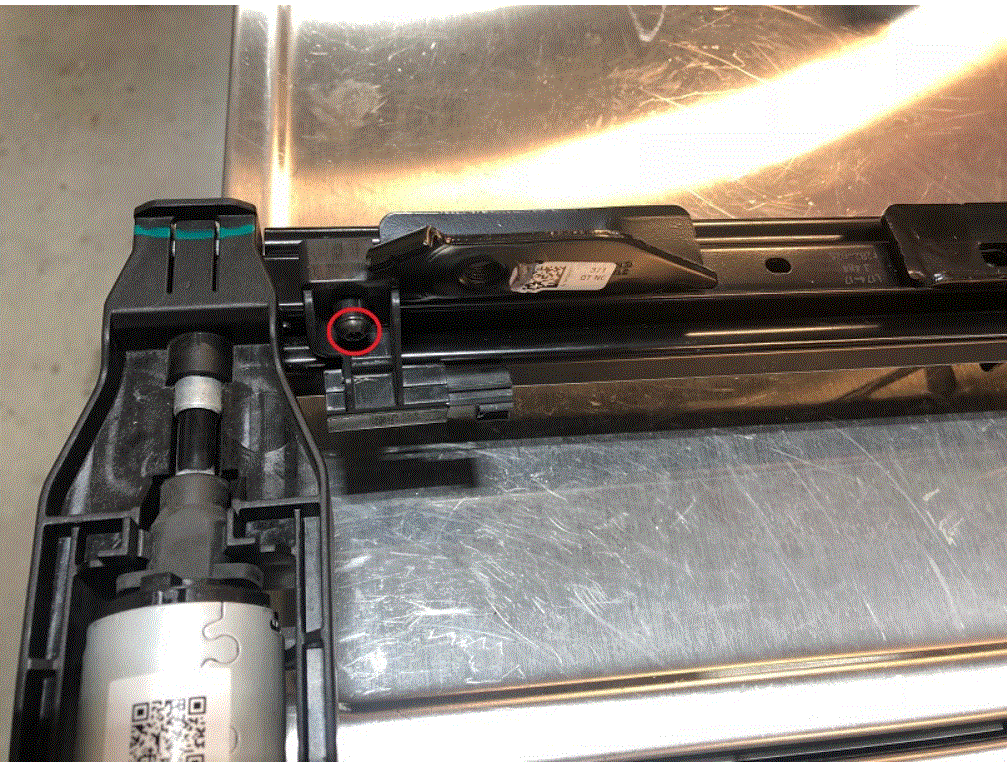

  35. If equipped, remove the screw that attaches the seat track position sensor to the seat track assembly, and then remove the sensor from the seat track assembly.

    Tip: Use of the following tool(s) is recommended:

    • T20 socket

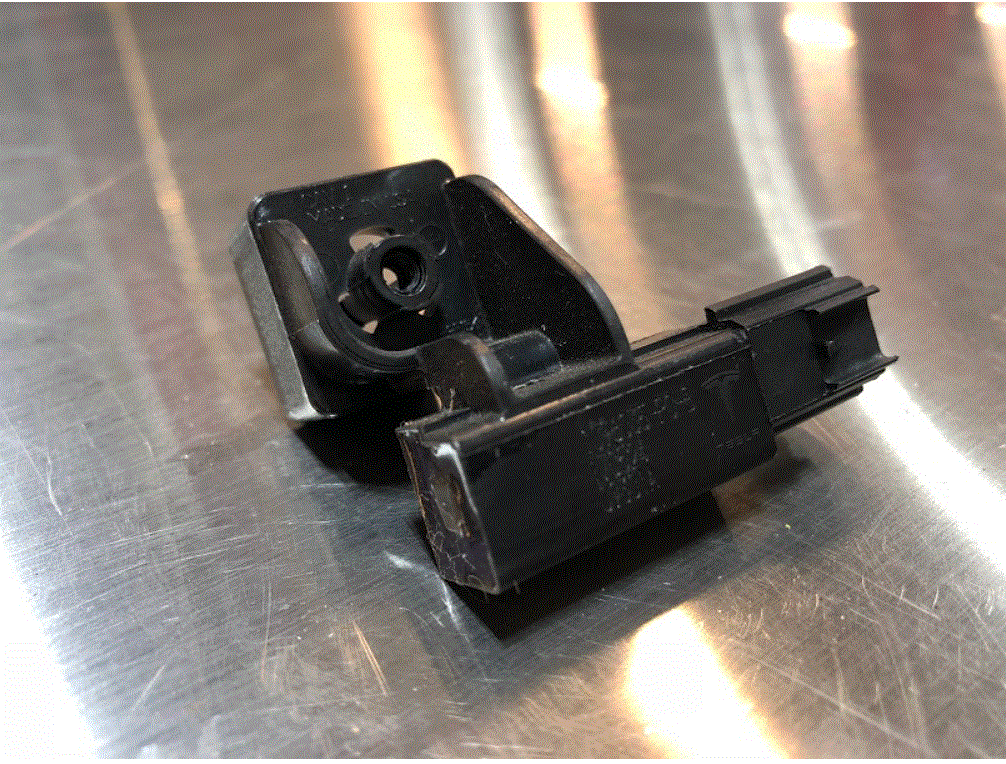

    G00650751Courtesy of TESLA, INC.
    G00650752Courtesy of TESLA, INC.

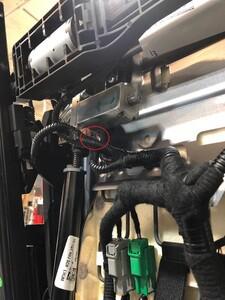

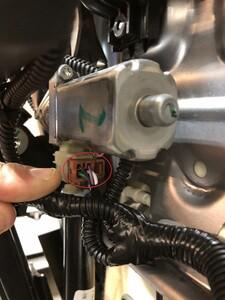

  36. Disconnect the lift motor connector
    NOTE: 1x connector
    G00622489Courtesy of TESLA, INC.
    G00622490Courtesy of TESLA, INC.

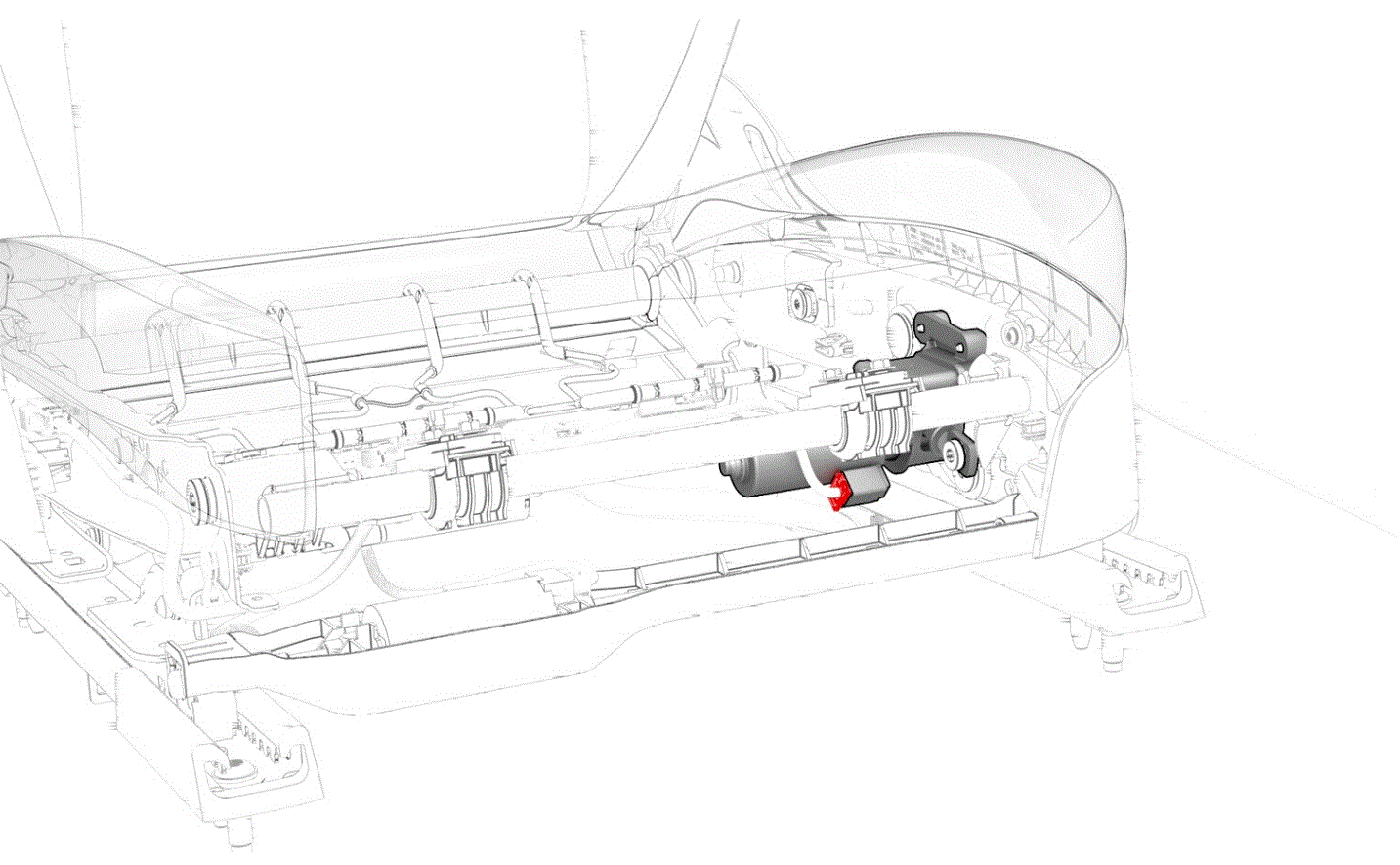

  37. Disconnect the tilt motor connector
    G00650753Courtesy of TESLA, INC.

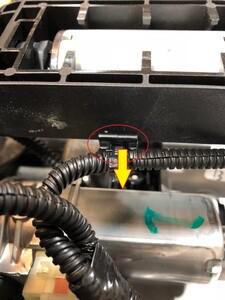

  38. Remove the harness clip from the seat track motor
    NOTE: 1x clip
    G00622572Courtesy of TESLA, INC.

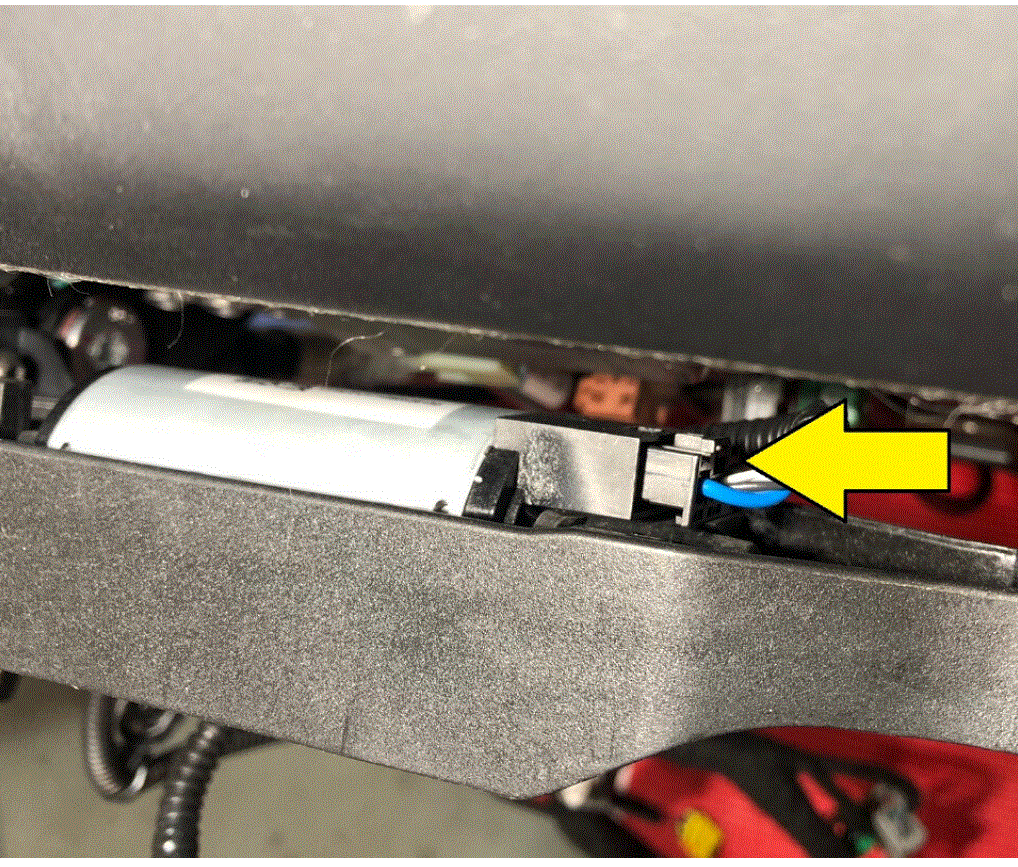

  39. Disconnect the electrical harness from the seat track motor connector.
    G00650754Courtesy of TESLA, INC.
  40. Disconnect the electrical harness from the pretensioner connector.

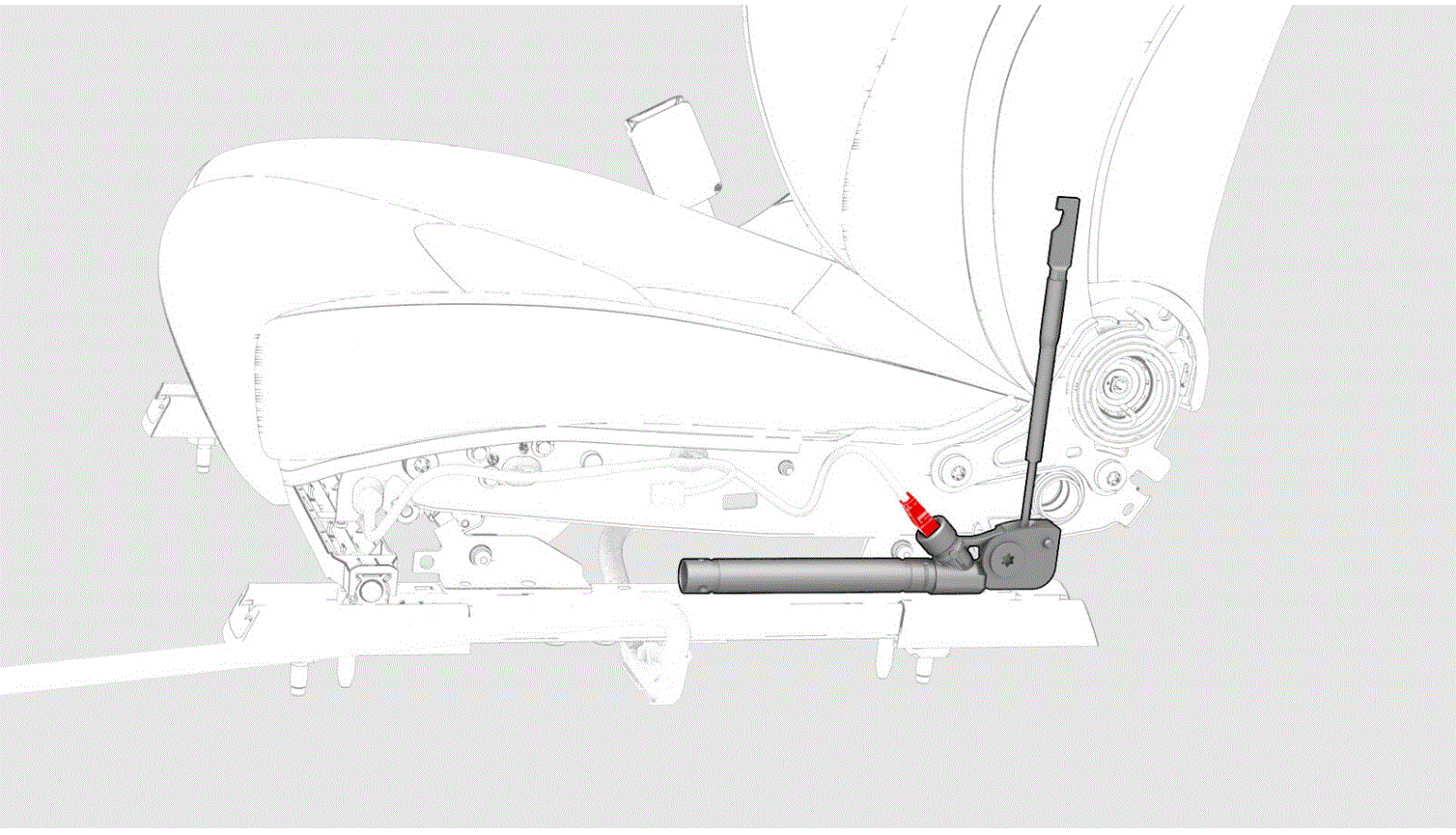

    G00650755Courtesy of TESLA, INC.

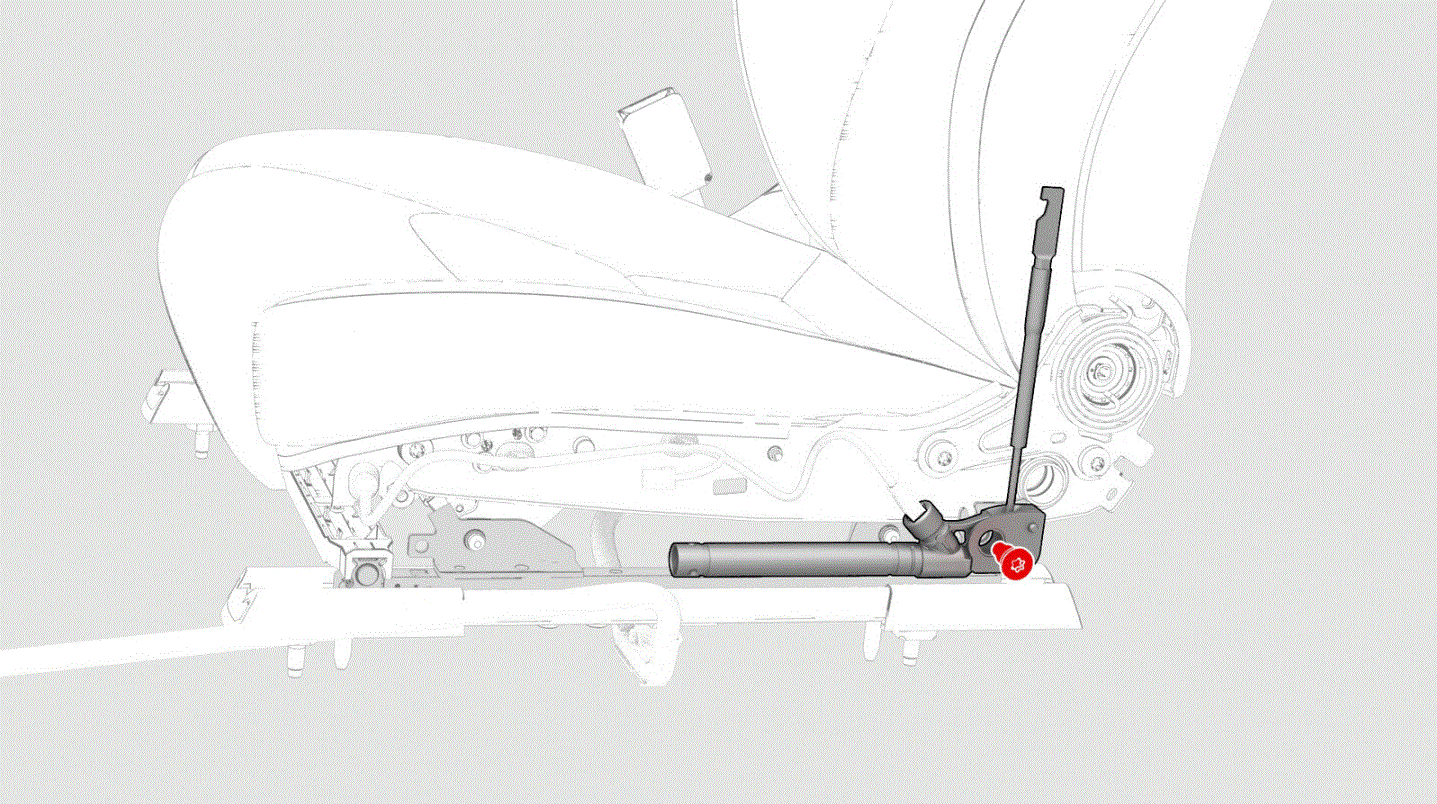

  41. Fully loosen the bolt that attaches the pre-tensioner to the seat track, and then remove the pre-tensioner and bolt as a single assembly from the seat track.

    Tip: Use of the following tool(s) is recommended:

    • Torx T50 socket
    • 3/8 in std ratchet
    • 3/8 in torque wrench (installation only)
    • 3 in extension
    G00658689Courtesy of TESLA INC
  42. Release the clips (x3) that attach the electrical harness along the seat cushion frame.
    NOTE: Older harnesses are clipped directly to the seat frame, while newer harnesses are attached to a harness guide that is clipped to the seat rail. See images.

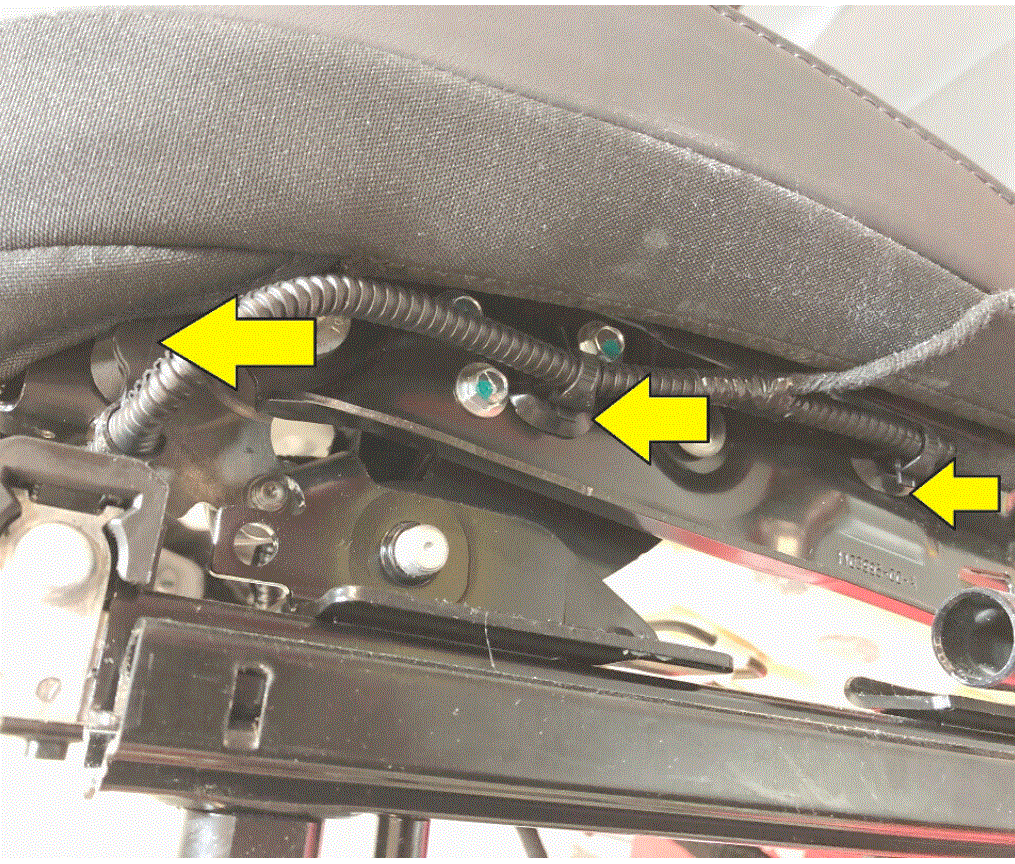

    Harness clipped to seat frame

    G00650756Courtesy of TESLA, INC.

    Harness guide clipped to seat rail

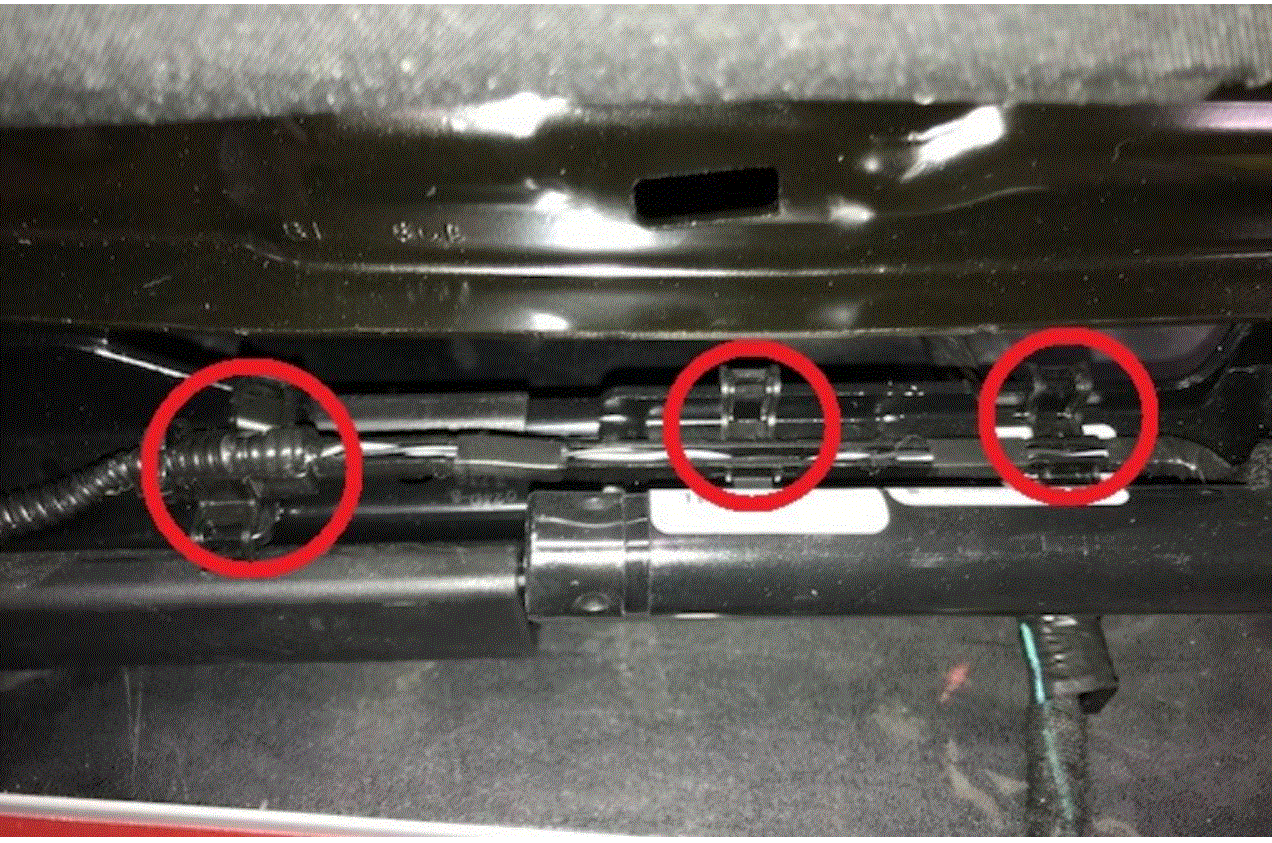

    G00650757Courtesy of TESLA, INC.

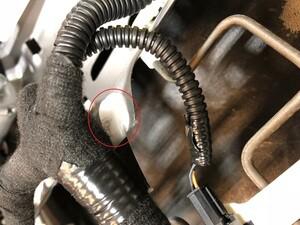

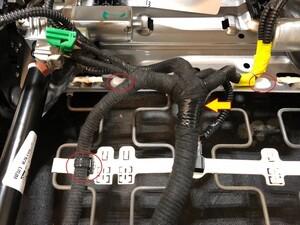

  43. Remove clips securing the driver seat harness on the under side of the seat frame
    NOTE: 4x clips

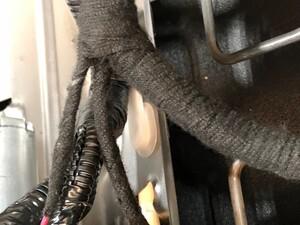

    G00622576Courtesy of TESLA, INC.
    G00622577Courtesy of TESLA, INC.
    G00622578Courtesy of TESLA, INC.

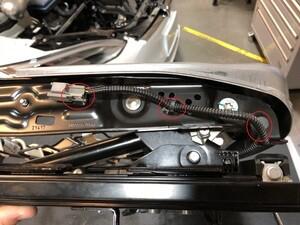

  44. Remove clips securing the driver seat harness on the inboard side of the seat frame
    NOTE: 3x clips
    G00622579Courtesy of TESLA, INC.

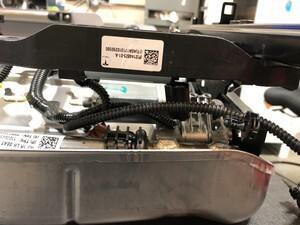

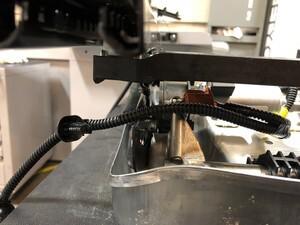

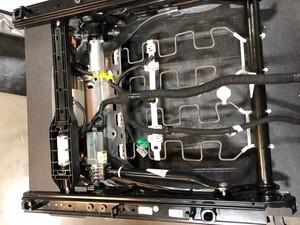

  45. Remove harness from seat frame
    G00622580Courtesy of TESLA, INC.
    G00622581Courtesy of TESLA, INC.
    G00622582Courtesy of TESLA, INC.
