Trim - Seat Back - Driver Seat - Remove and Replace: Remove

Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
Remove the driver seat from the vehicle. See SEAT ASSEMBLY - 1ST ROW (LH) - REMOVE AND REPLACE .
Remove the driver headrest trim. See TRIM - HEADREST - DRIVER (REMOVE AND REPLACE) .
Remove the driver seat back shell from the seat. See SHELL - SEAT BACK - DRIVER (REMOVE AND REPLACE) .

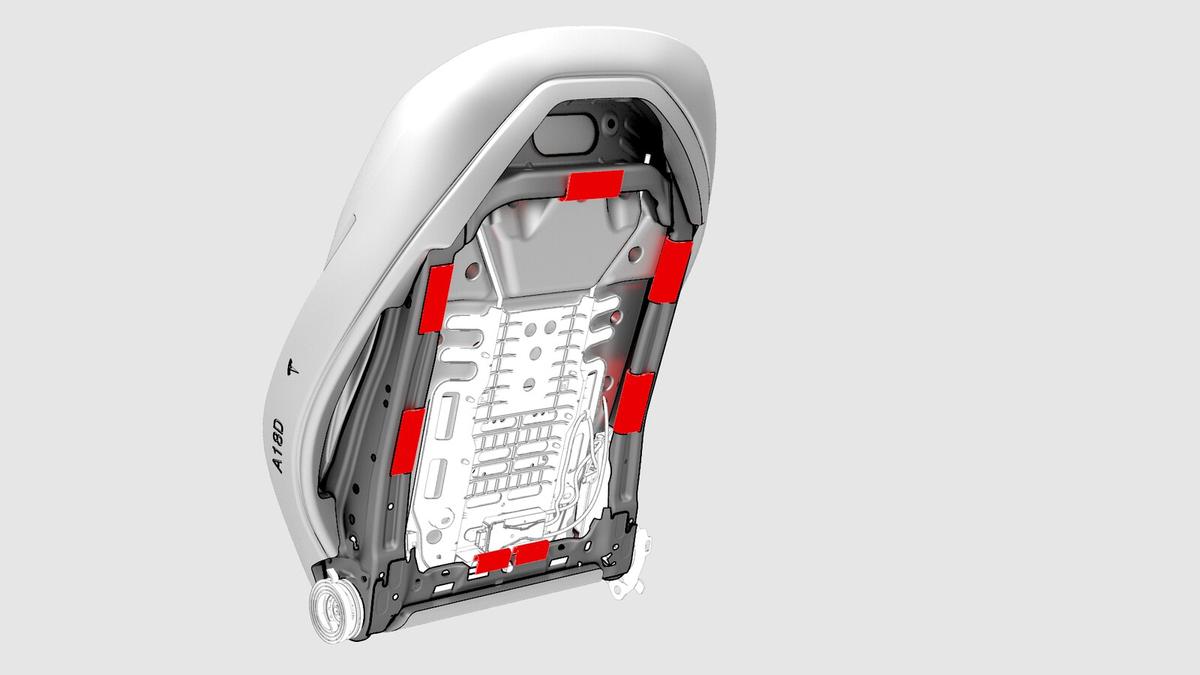

Remove the driver seat back trim retainers (x7) from the driver seat back frame.

Courtesy of TESLA, INC.

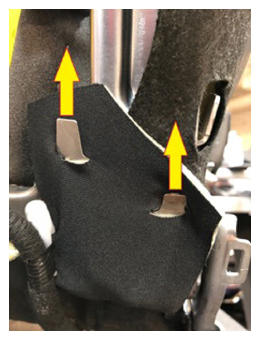

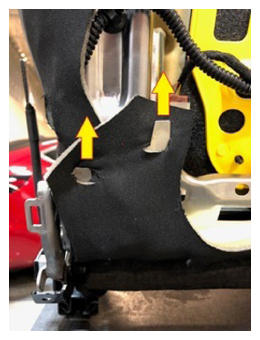

Remove the lower flap that covers the outboard corner of the driver seat seat back frame.
NOTE: Pull the trim straight up, off of the retaining tabs to release it.

Courtesy of TESLA, INC.

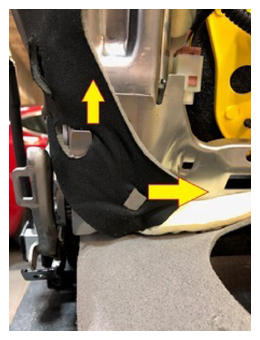

Remove the upper flap that covers the outboard corner of the driver seat seat back frame.
NOTE: Pull the lower section of trim away from the retaining tab to release it, then pull the trim straight up off of the upper retaining tab.

Courtesy of TESLA, INC.
Remove the lower flap covering the inboard corner of the driver seat seat back frame.
NOTE: Pull the trim straight up, off of the retaining tabs to release it.

Courtesy of TESLA, INC.

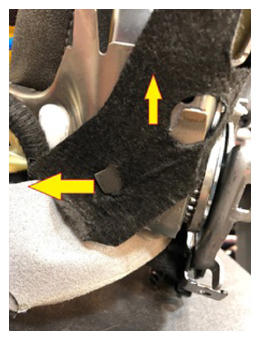

Remove the upper flap that covers the inboard corner of the driver seat seat back frame.
NOTE: Pull the lower section of trim away from the retaining tab to release it, and then pull the trim straight up off of the upper retaining tab.

Courtesy of TESLA, INC.

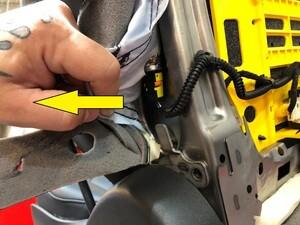

Pull the driver seat seat back trim away from the driver seat side airbag to gain access to the air bag electrical connector.

Courtesy of TESLA, INC.

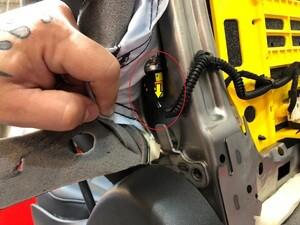

Disconnect the driver seat side airbag and pull the orange tabs(x2) down to release the connector.

Courtesy of TESLA, INC.

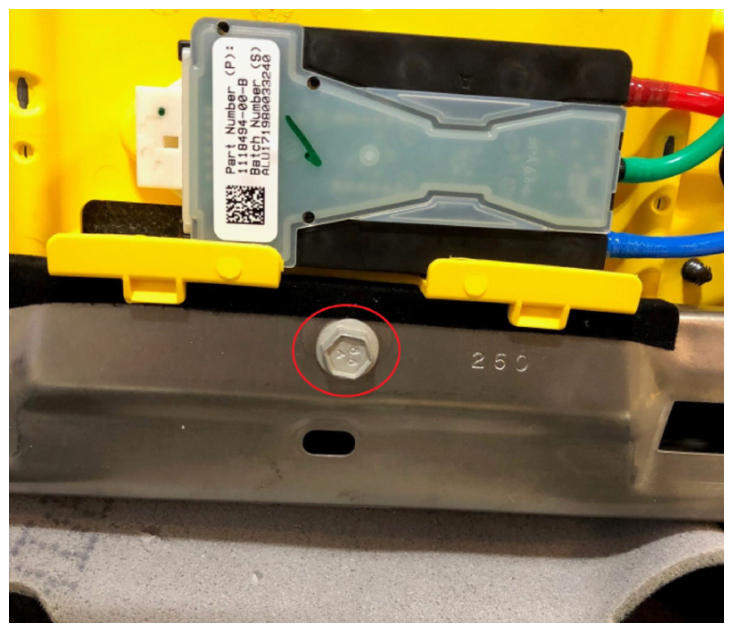

Remove the bolt that attaches the bottom of the lumbar support to the back frame.
5 N.m (3.7 ft-lbs)

NOTE: The bolt is located below the lumbar ECU. Removing this bolt allows ease of access for the following step.

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- 2 in extension
- Ratchet/torque wrench
Courtesy of TESLA, INC.

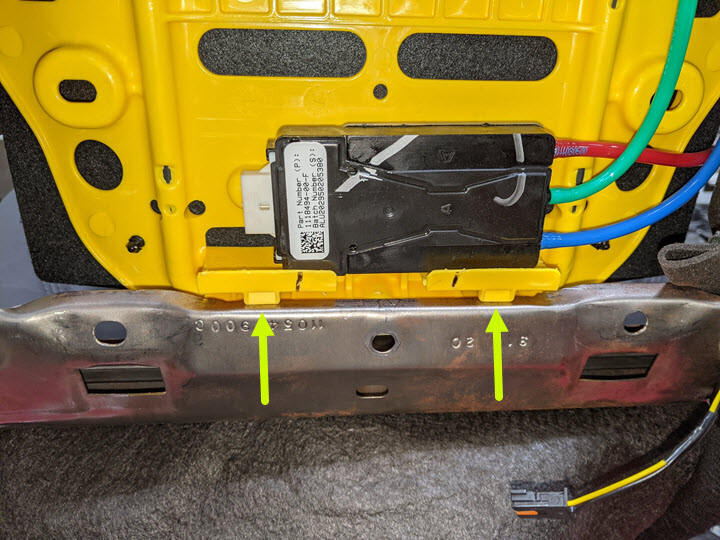

Release the tabs(x2) that attach the bottom of the lumbar support to the seat back frame.

Courtesy of TESLA, INC.

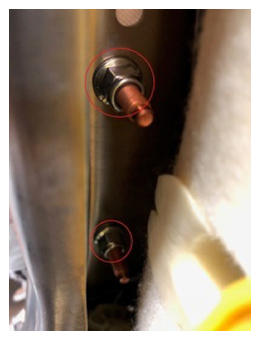

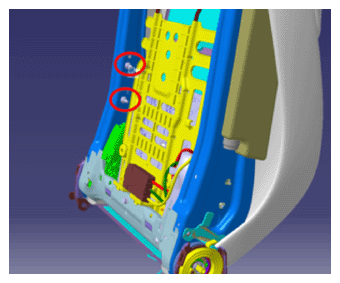

Remove the nuts (x2) that attach the driver seat side airbag to the seat back frame.
5.4 N.m (4.0 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Ratchet/torque wrench
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

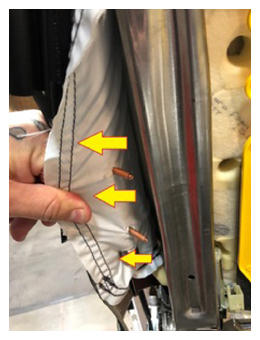

Carefully pull the driver seat side airbag chute from the seat back frame.
CAUTION: Do not remove the airbag from the airbag chute.

Courtesy of TESLA, INC.

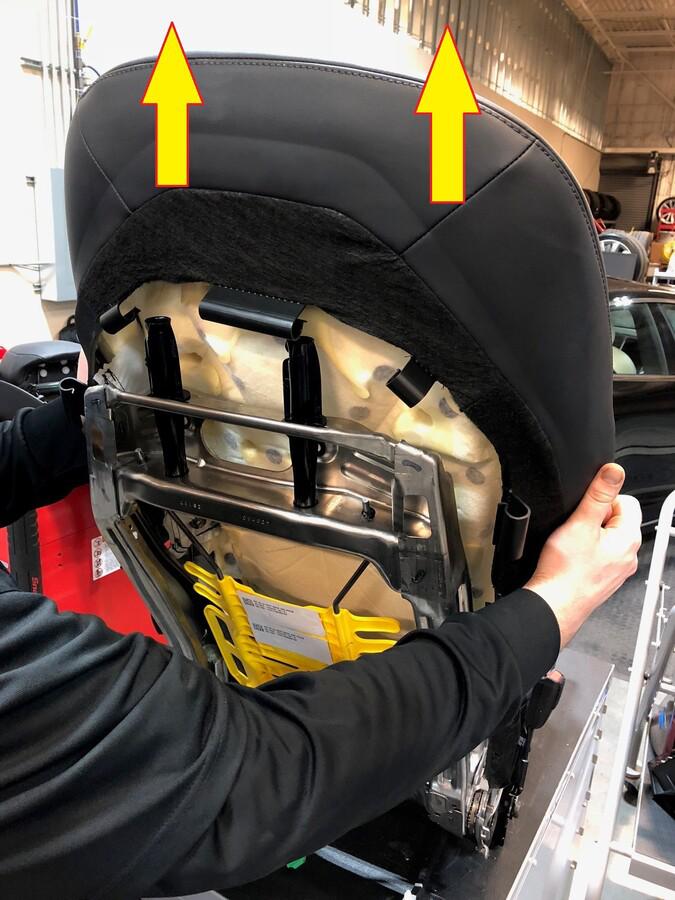

Remove the seat upholstery by pulling the bottom of the seat back trim away from the seat back frame.
NOTE: Make sure the heater harness and the seat back trim is clear of the seat back frame.

Courtesy of TESLA, INC.

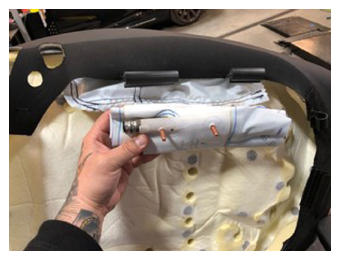

Slide the airbag chute with the airbag still inside through the seatback foam, and then carefully remove the airbag from the airbag chute.
CAUTION: Make sure that the driver side airbag mounting studs do not catch in the holes of the airbag chute.

CAUTION: Handle the airbag with extreme care when removing it from the airbag chute. The airbag is configured/folded in a specific manner and will need to be replaced if it is dropped, altered or manipulated in any way.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

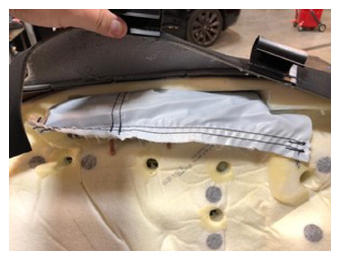

Release the strap that attaches the driver seat seat back trim to the seat back foam.
CAUTION: Be careful when releasing the strap to avoid damage.

Courtesy of TESLA, INC.
Release the clips (x2) that attach the driver seat seat back trim to the seat back foam.

Courtesy of TESLA, INC.
Remove the driver seat seat back trim from the seat back foam.

Courtesy of TESLA, INC.
