Seal - Trunk Flip - Backlight - Remove and Replace: Remove

  1. Open the trunk.

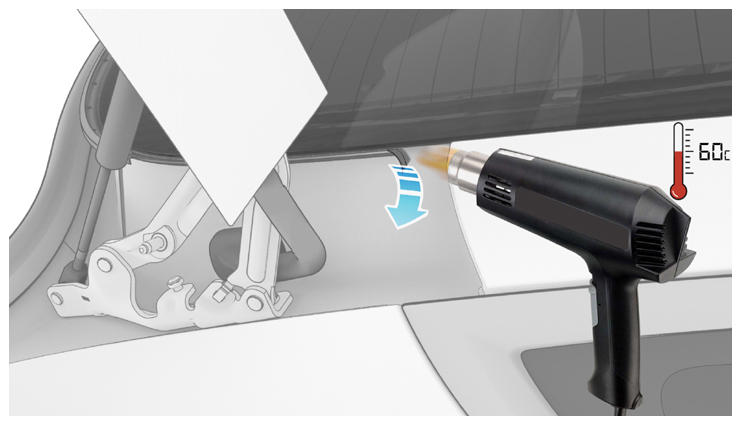

  2. Starting at one of the ends of the trunk flip seal, heat up the area surrounding the trunk flip seal to a temperature of approximately 60°C (140°F), and then pull on the flip seal to remove it from the body.
    CAUTION: Do not use too much heat to avoid damage to vehicle components.
    G14739260Courtesy of TESLA, INC.
  3. Work your way around until you reach the other end of the trunk flip seal.
  4. Use a plastic trim tool to remove any adhesive residue in the trunk flip seal area on the backlight.
  5. Clean the trunk flip seal area on the backlight using IPA wipes.
