Windshield (Reuse Humidity and Temperature Sensor) - Remove and Replace: Remove

  1. Open the LH front door and lower all the windows.
  2. Remove the cowl screen panel. See PANEL - COWL SCREEN (REMOVE AND REPLACE) .

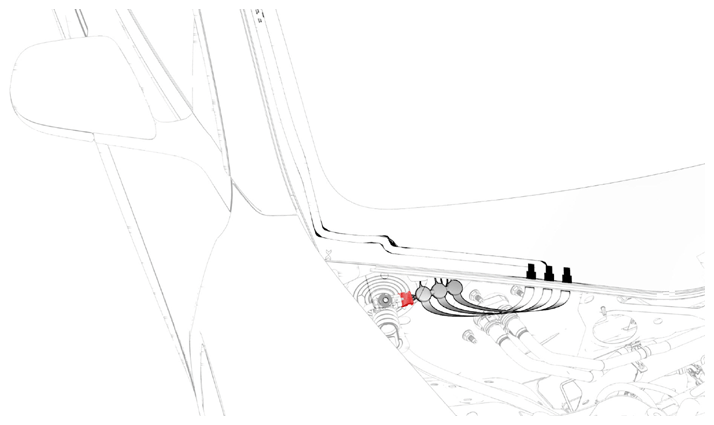

  3. Disconnect the electrical harness from the windshield heater connector.
    G14739274Courtesy of TESLA, INC.
    G00649438Courtesy of TESLA, INC.
    NOTE:

    Model 3 vehicles built with an Info-Ryzen car computer are equipped with a windshield that may have a different windshield heater connector than on vehicles Pre-Info-Ryzen. Perform this step only if a windshield jumper harness is present.

  4. Remove the driver sun visor check base. See Check Base - Sun Visor - LH (Remove and Replace) .
  5. Remove the forward facing triple camera. See CAMERA - TRIPLE - FORWARD FACING (REMOVE AND REPLACE) .
  6. Remove the GPS antenna. See ANTENNA - GPS (REMOVE AND REPLACE) .
  7. Open the RH front door.
  8. Remove the RH mid A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  9. Remove the RH upper A-pillar trim. See TRIM - A-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  10. Remove the passenger sun visor. See Sun Visor - LH (Remove and Replace) .
  11. Remove the passenger sun visor check base. See Check Base - Sun Visor - LH (Remove and Replace) .

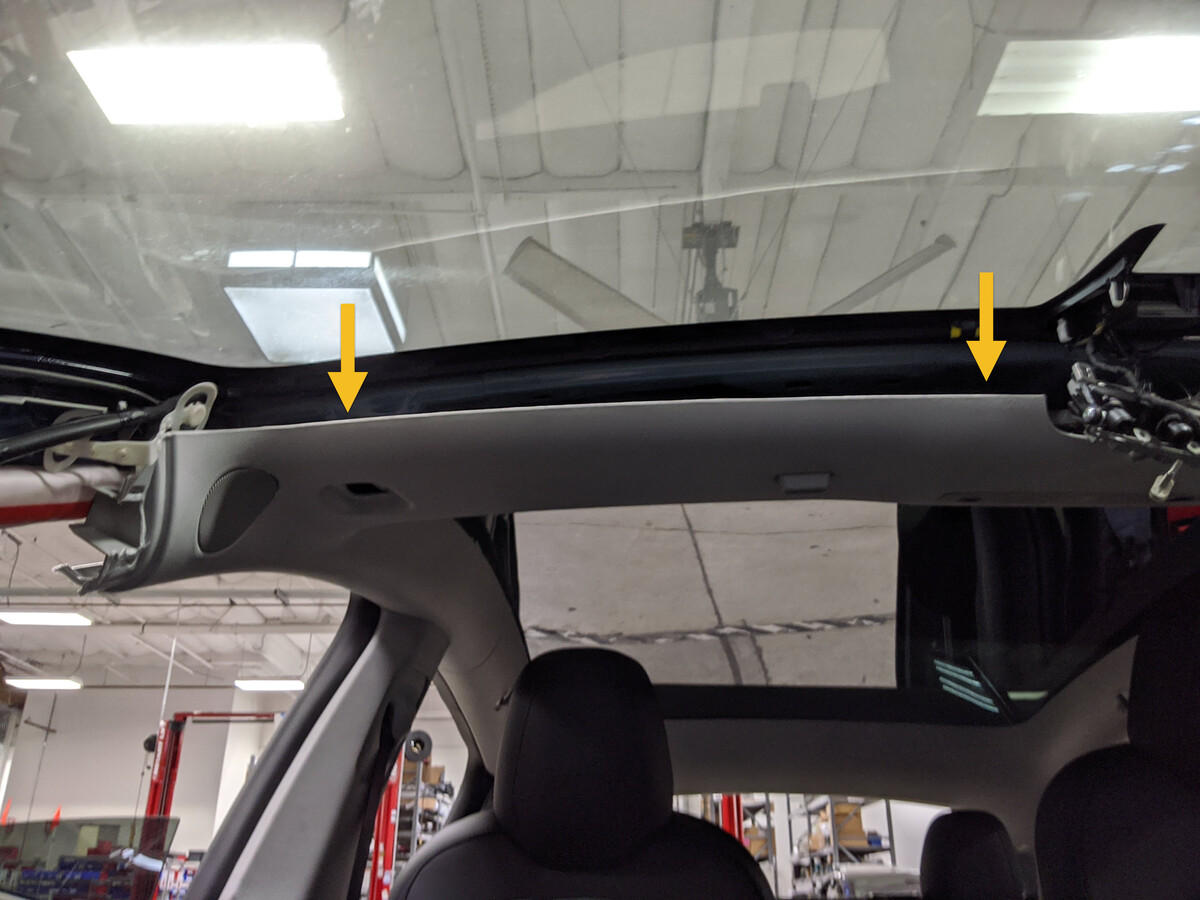

  12. Release the clips (x4) that attach the front of the headliner to the body, and then separate the headliner from the body.
    G00622709Courtesy of TESLA, INC.

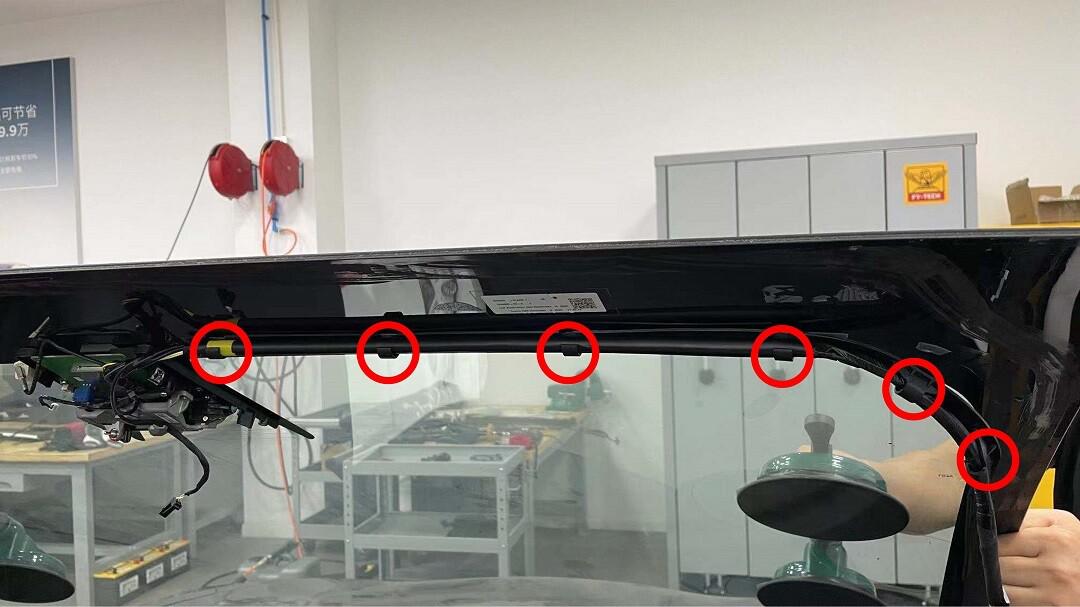

  13. Release the clips (x6) that attach the windshield harness to the fastener track, and then release the harness from the track.
    G00622710Courtesy of TESLA, INC.

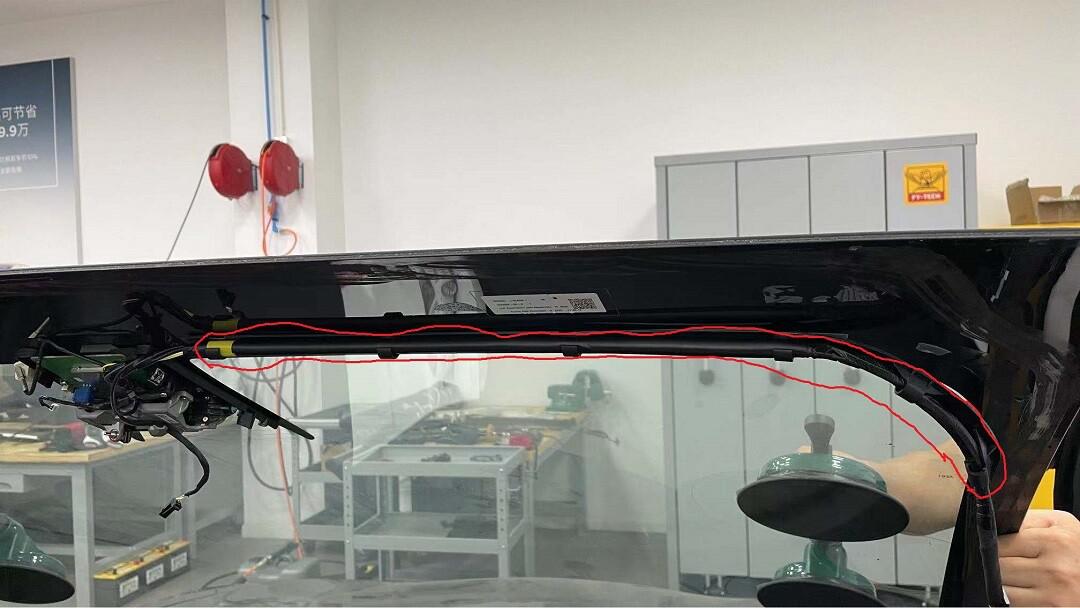

  14. Remove the windshield fastener track.
    G00622711Courtesy of TESLA, INC.
  15. Prepare the WRD Spider 3 glass removal kit.

    Tip: Use of the following tool(s) is recommended:

    • WRD Spider 3 - 1571168-00-A

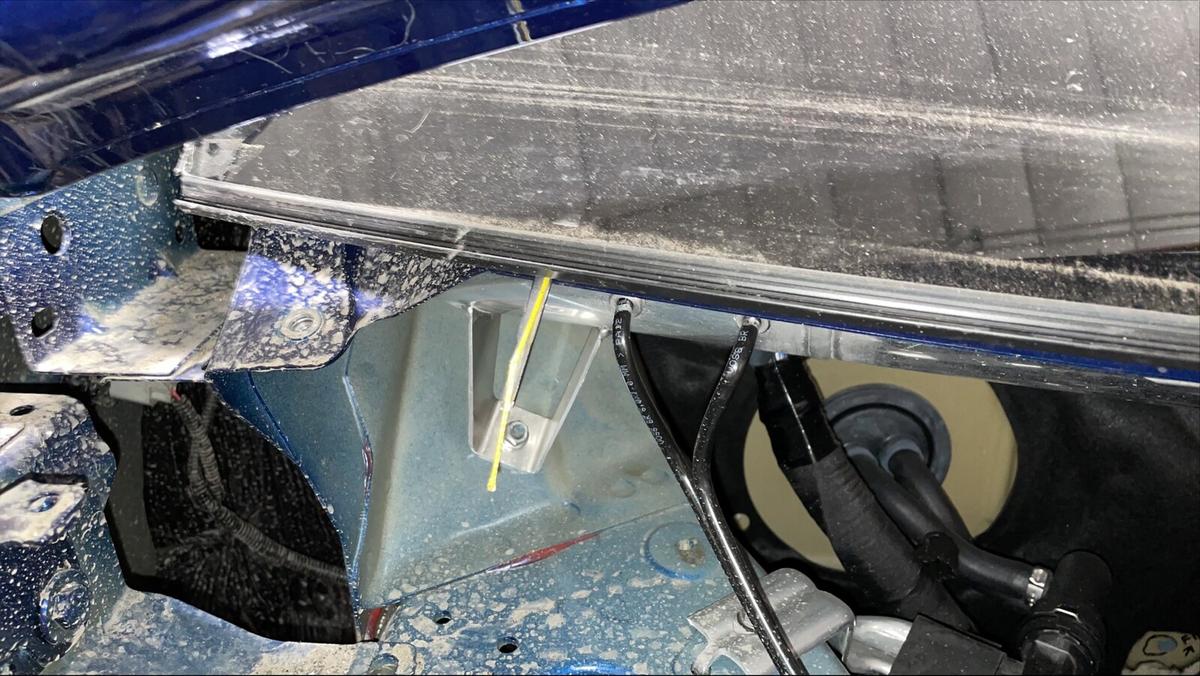

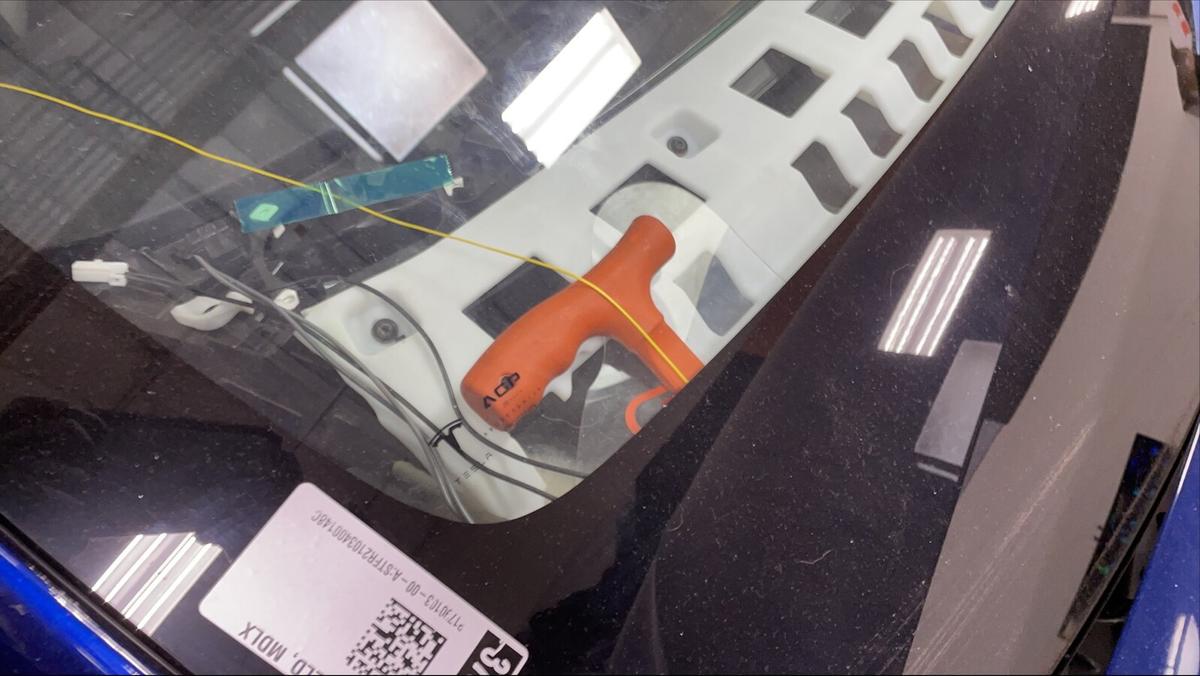

  16. Secure the wire to the starter tool and push the tool through the urethane at the RH lower side of the windshield assembly.
    CAUTION: Use the guard to prevent damage to the dash pad while using the starter tool.
    G00622712Courtesy of TESLA, INC.
    G00622713Courtesy of TESLA, INC.

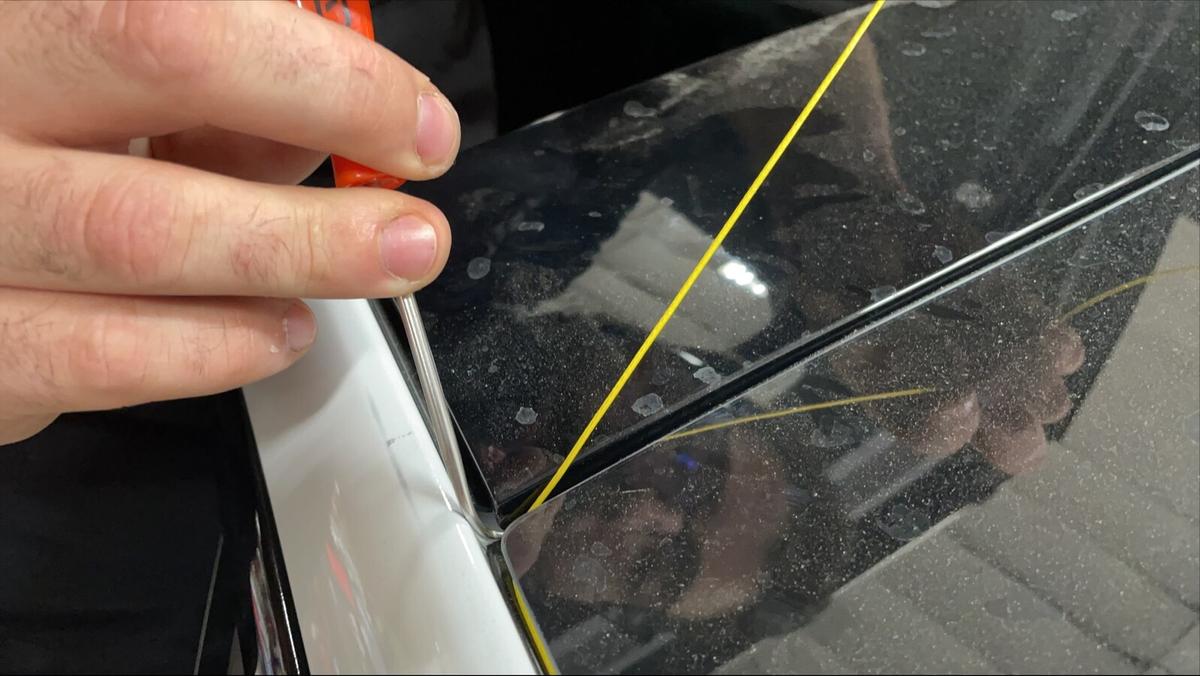

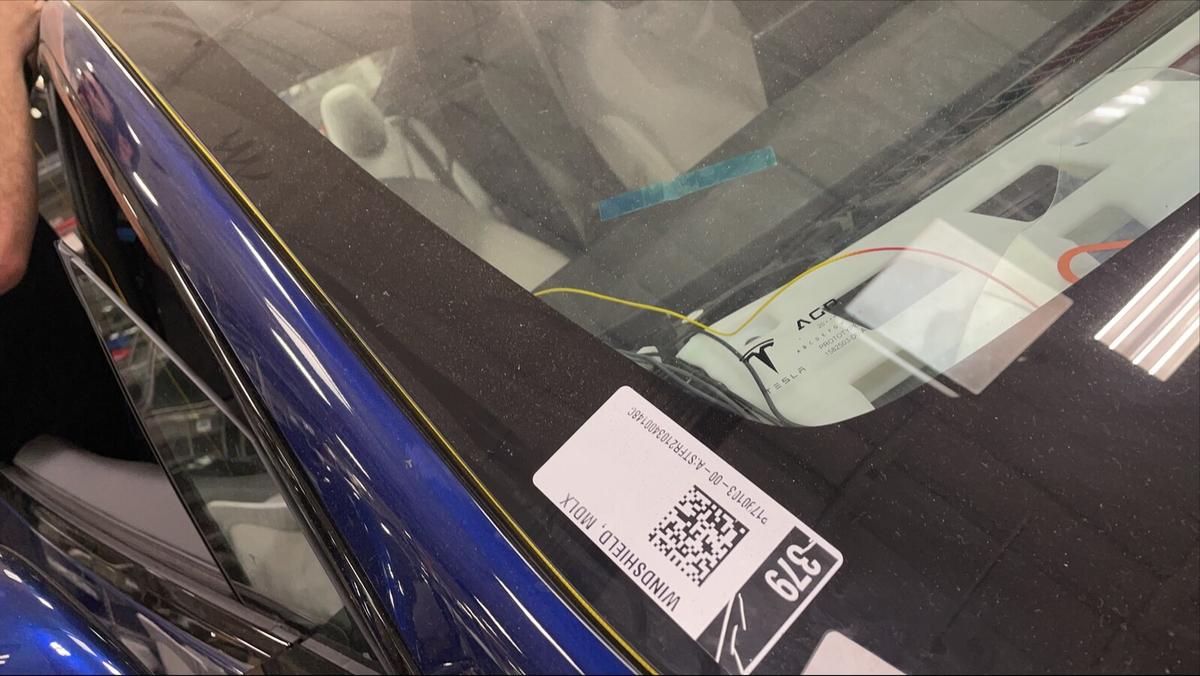

  17. Release the line from the starter tool and wrap the line around the exterior of the windshield.
    NOTE: Pull the line away from the starter tool. Make sure enough length is pulled through.
    NOTE: Verify the line sits underneath the glass
    G00622714Courtesy of TESLA, INC.
    G00622715Courtesy of TESLA, INC.
    G00622716Courtesy of TESLA, INC.

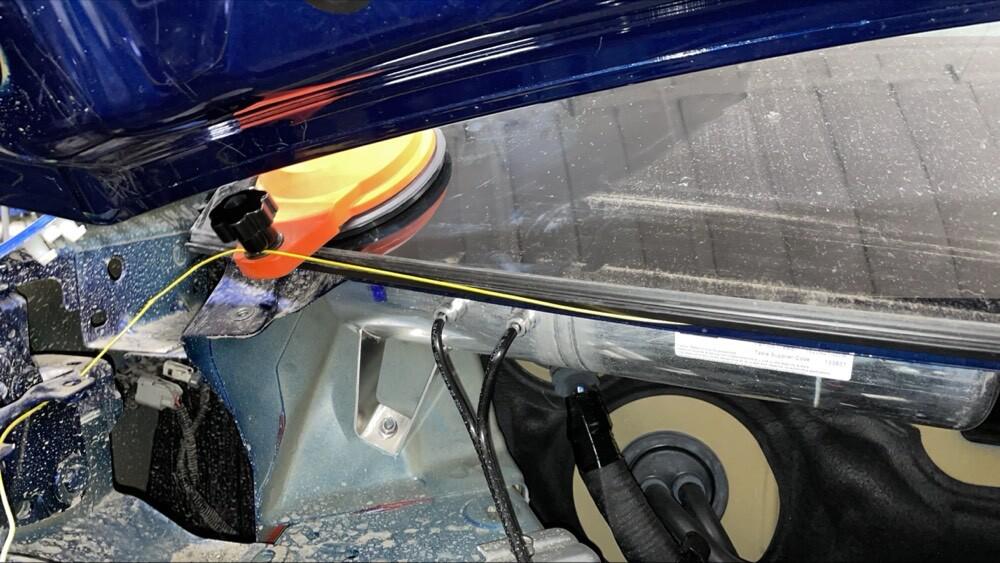

  18. Attach the anchor point to the exterior of the windshield near the starting point of the handle tool, and then secure the line to the anchor.
    G00622717Courtesy of TESLA, INC.

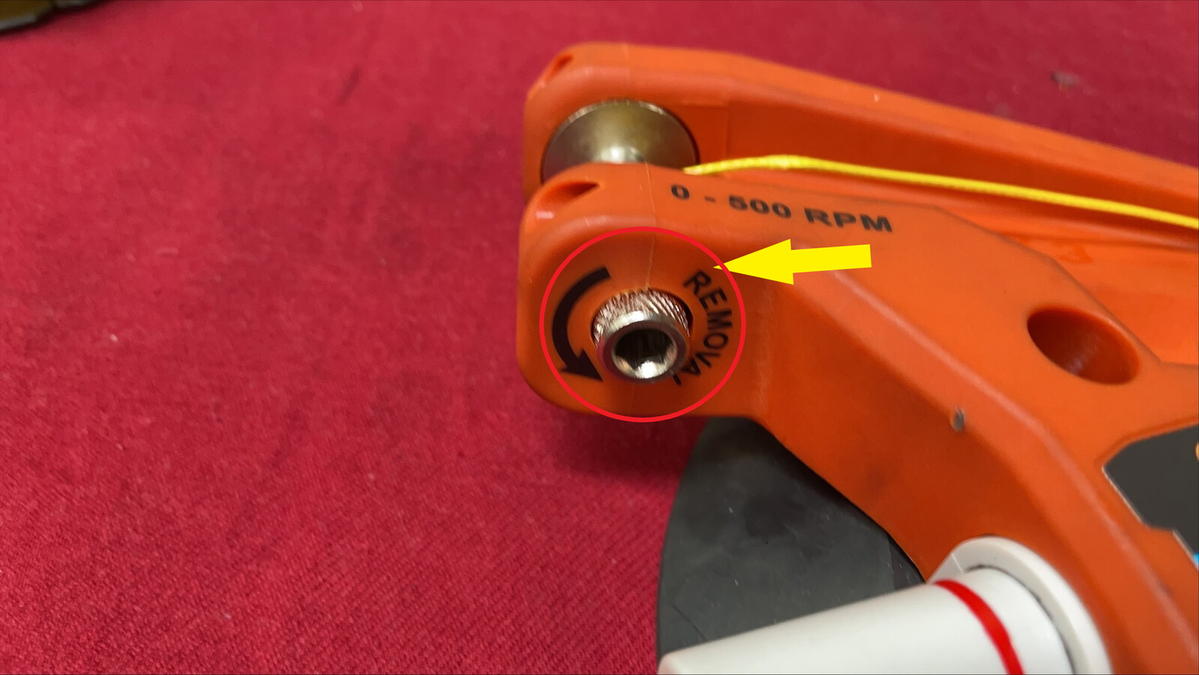

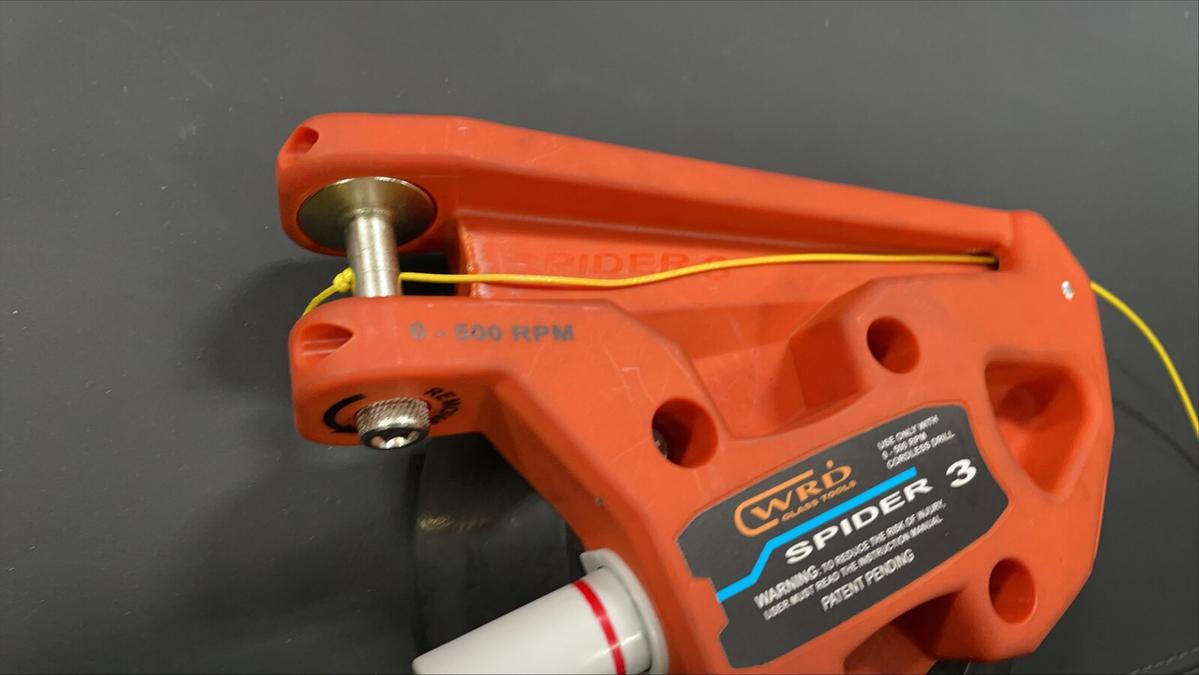

  19. Secure the interior side of the line to the Spider cutting tool.
    NOTE: Follow the instructions on the Spider tool. Feed the line through the opening of the cutting tool and tie a knot to secure the line in place. If the spindle is not turned the proper direction, the cutting tool will be damaged.
    G00622718Courtesy of TESLA, INC.
    G00622719Courtesy of TESLA, INC.

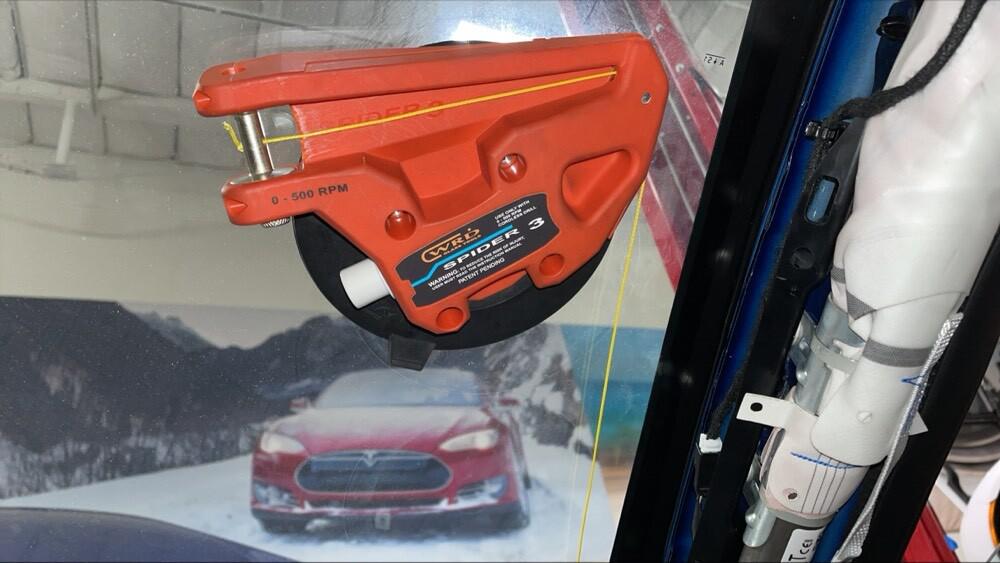

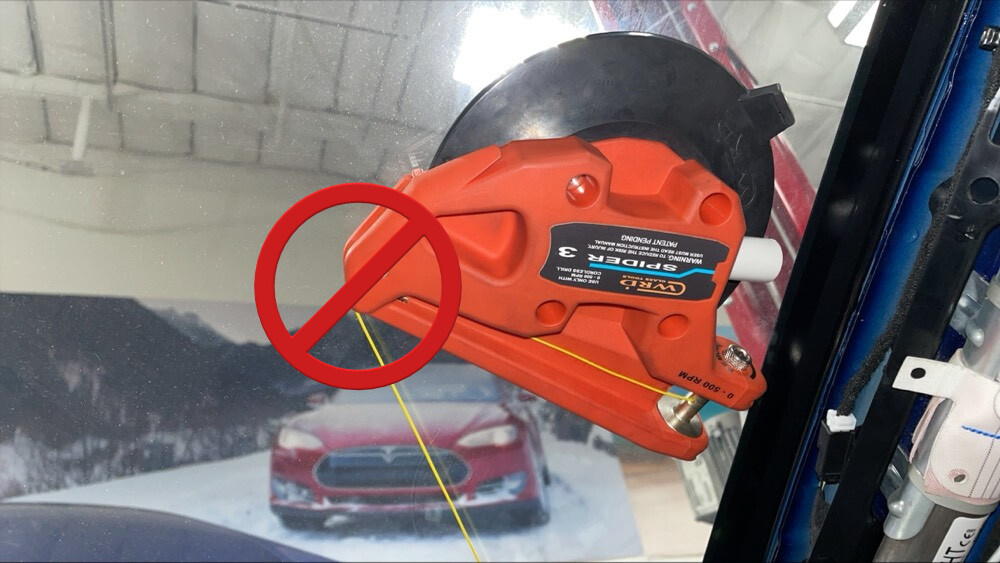

  20. Secure the Spider cutting tool to the interior side of the windshield.
    NOTE: Note the orientation of the cutting line. Make sure the line wraps over the large pulley and holds a 90 degree angle.
    G00622720Courtesy of TESLA, INC.
    G00622721Courtesy of TESLA, INC.

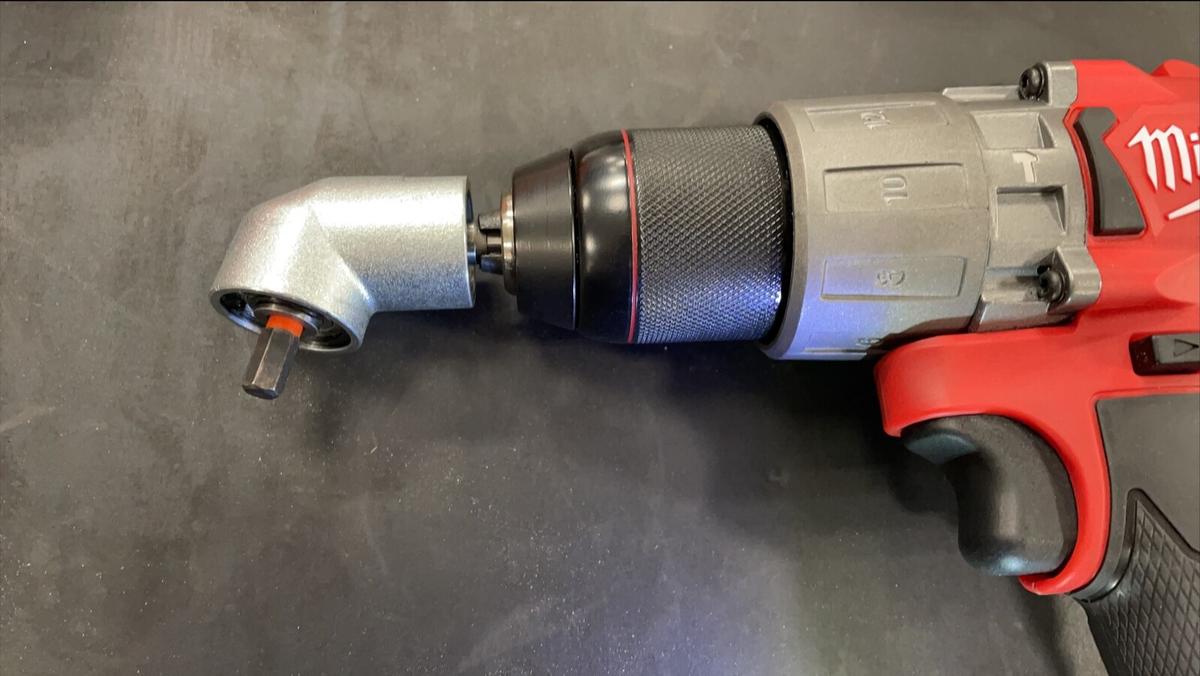

  21. Secure the angle driver to the electric drill.
    G00622722Courtesy of TESLA, INC.

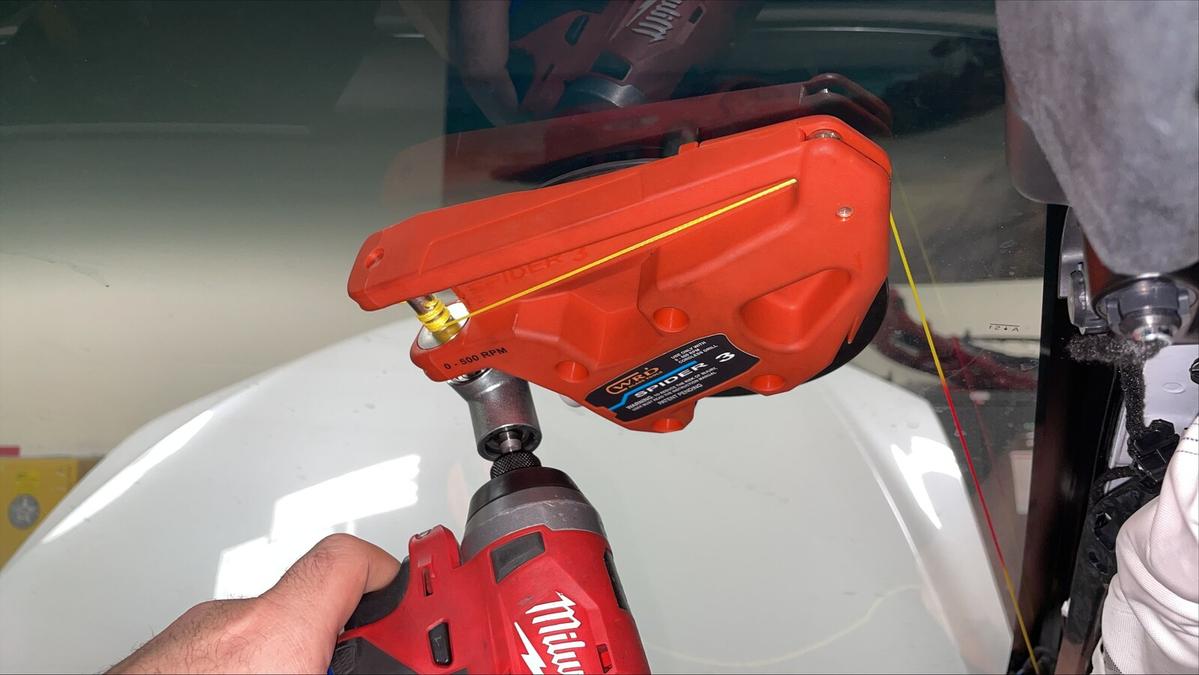

  22. Turn the spindle on the cutting tool with the drill to start remove the windshield.
    NOTE: Move the cutting tool as needed, keeping the line close to a 90 degree angle.
    CAUTION: When passing the VIN plate, use the guard to guide the line over the plate to prevent damage.

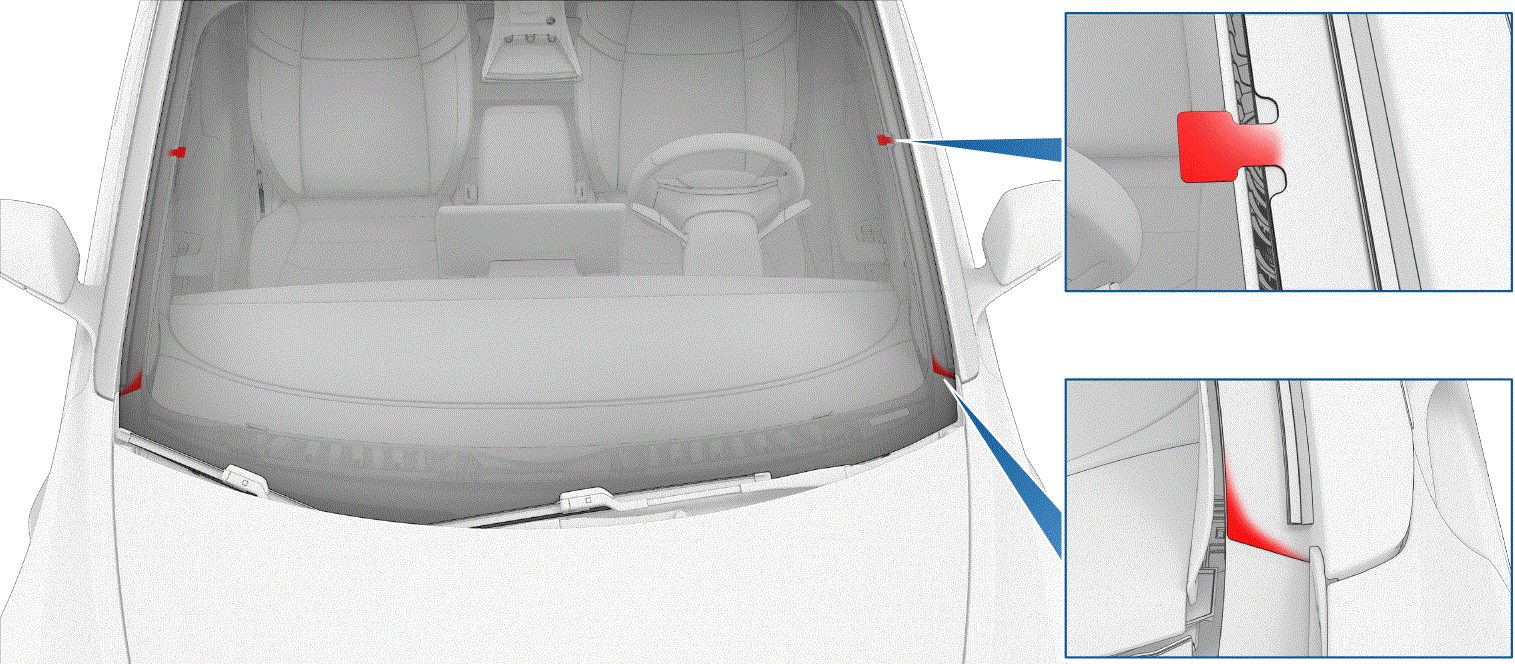

    CAUTION:

    Take special care in the four areas identified that have overlapping panels and/or tabs to prevent damage.

    G00649439Courtesy of TESLA, INC.
    G00622723Courtesy of TESLA, INC.
  23. Attach suction cups (x4) to the LH and RH sides of the windshield assembly.

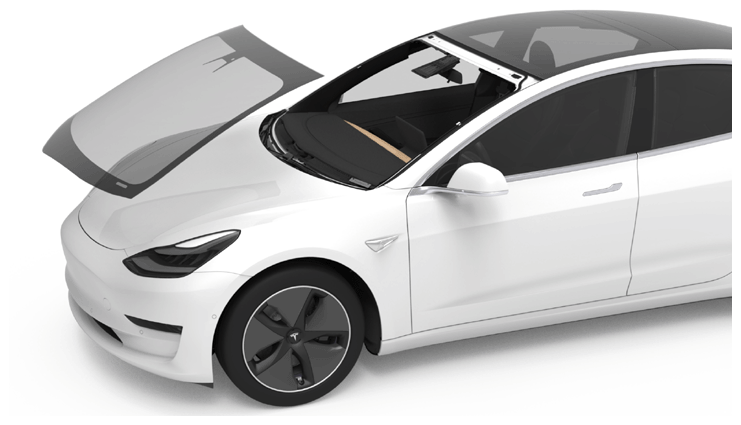

  24. With an assistant, remove the windshield assembly from the vehicle.
    G14739277Courtesy of TESLA, INC.

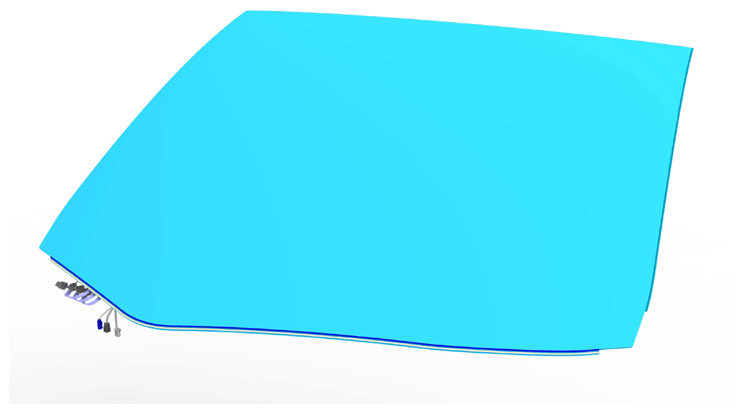

  25. Remove the suction cups from the windshield assembly.
    G14739278Courtesy of TESLA, INC.
  26. Use a razor blade to remove the old urethane from the windshield flange on the vehicle.

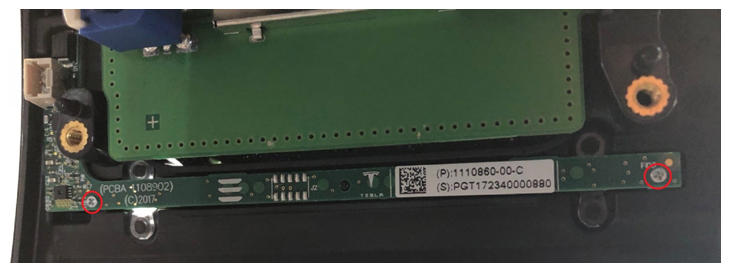

  27. Release temperature and humidity sensor from windshield bracket
    G14739279Courtesy of TESLA, INC.

    0.12 N.m (1 lbs-in)

    CAUTION: Ensure the correct Phillips screwdriver is used. If the screwdriver is too large the fastener will round out.
    CAUTION: The fasteners are very small. Take care not to drop or misplace them.

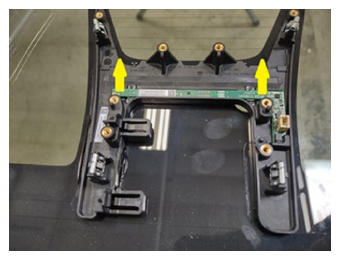

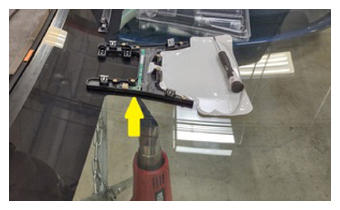

  28. Remove temperature and humidity sensor from windshield bracket
    NOTE: Use heat gun on outside of windshield to release the adhesive as shown. Gently Pry board up as heat is applied, Angle board up and over plastic alignment pin and move board upward to clear retaining plastic
    G14739280Courtesy of TESLA, INC.
    G14739281Courtesy of TESLA, INC.
