Glass - Body - Rear Quarter - LH - Remove and Replace: Remove

  1. Open the LH rear door.
  2. Fully lower the LH rear window.
  3. Open the trunk.

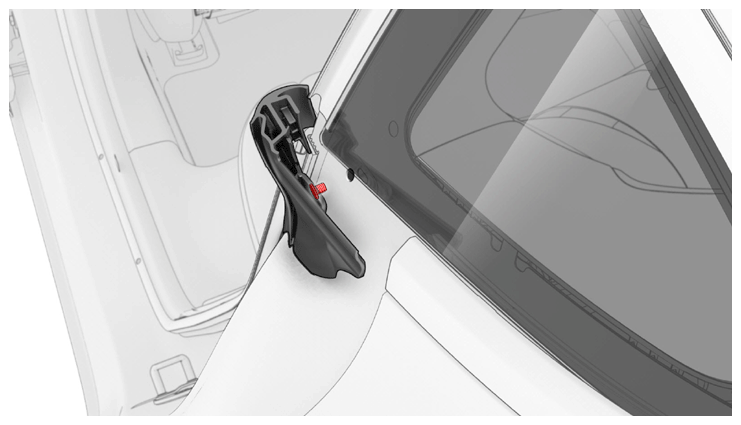

  4. Release the clip that attaches the rear primary seal to the C-pillar using a clip prytool.
    G14739249Courtesy of TESLA, INC.
  5. Pull the LH rear primary seal from the rear quarter glass area by pulling towards the front of the vehicle.
  6. Remove the LH 2nd row seat side bolster. See BOLSTER - SIDE - SEAT - 2ND ROW - LH (REMOVE AND REPLACE) .
  7. Remove the LH side rail trim. See TRIM - SIDE RAIL - LH (REMOVE AND INSTALL) .
  8. Remove the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  9. Break the locating posts on the interior side of the LH rear quarter body glass using diagonal cutters and a flat head screwdriver to assist with the removal of the glass.

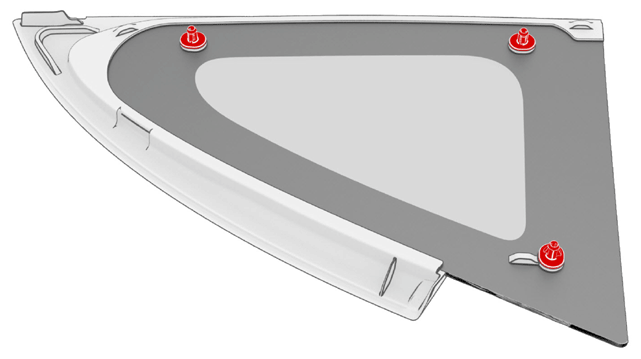

    G14739250Courtesy of TESLA, INC.
  10. Clean the exterior area of the LH rear quarter body glass.
  11. Apply masking tape to the rear around the LH rear quarter body glass to protect the body and paint.

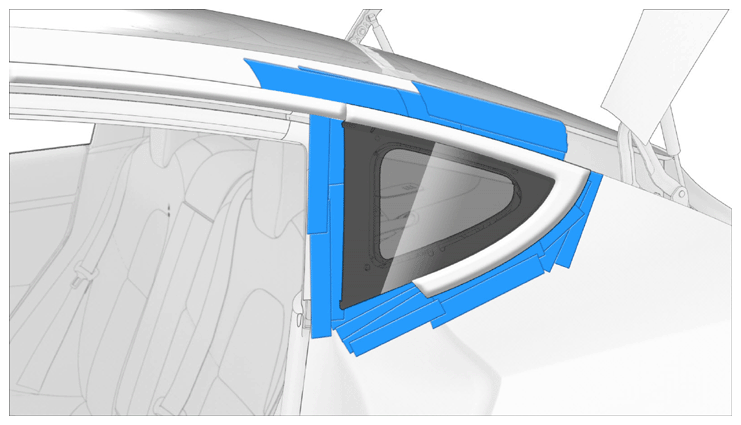

    G14739251Courtesy of TESLA, INC.
  12. Using a plastic trim tool, pry out the rear edge of the LH quarter brightwork from the LH rear quarter body glass, and then use a retractable blade to cut the urethane that attaches brightwork to the vehicle to remove the trim from the vehicle.
    WARNING: Always wear cut-resistant gloves when using cutting tools.
    CAUTION: Use caution with the clip that attaches the rear quarter brightwork to the LH upper body side brightwork.
    G14739252Courtesy of TESLA, INC.
  13. Remove any remaining clip parts from the upper portion of the LH quarter brightwork.
  14. Using a retractable blade knife, cut down the rubber seal around the LH rear quarter body glass to allow greater access when removing the glass.
    WARNING: Always wear cut-resistant gloves when using cutting tools.
    NOTE: This action will avoid causing damage to the body and keep the wire from getting stuck in the seal when cutting the LH rear quarter body glass.
  15. Set up a pair of T-handles with square wire 6 feet long.
  16. Wrap the square wire around the rear edge of the LH rear quarter body glass between the body the seal.

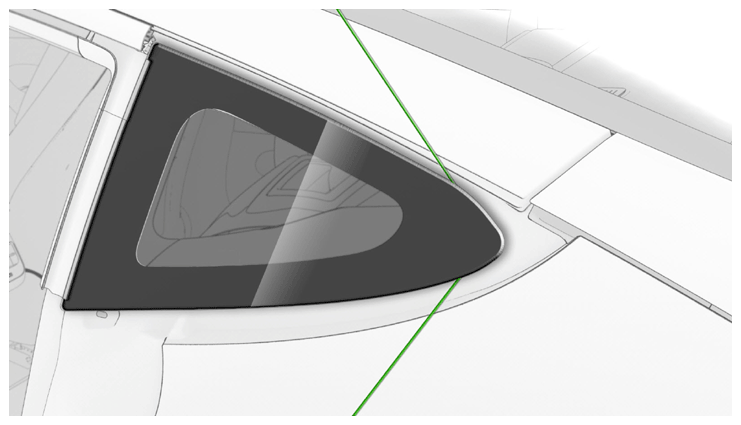

    G14739253Courtesy of TESLA, INC.
  17. Cut the LH rear quarter body glass from the body, and then remove glass from the vehicle.

    Tip: Use a sawing motion to cut through the urethane.

  18. Clean the remaining urethane from the body using a winged scraper set.
  19. Remove the masking tape from the rear quarter glass area.
  20. Clean the body around the urethane path with an isopropyl alcohol (IPA) wipe. Allow the area to dry for at least 1 minute.

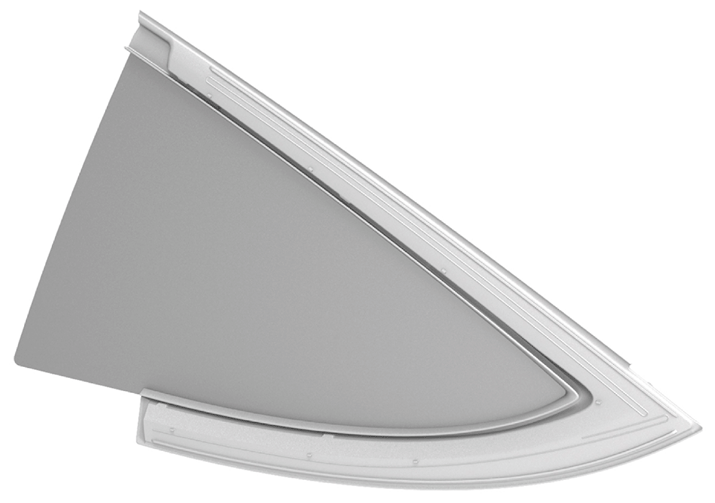

    G14739254Courtesy of TESLA, INC.
