Liner Stiffener- Front Wheel House - LH - Remove and Replace: Remove

  1. Turn steering wheel fully to the right.
  2. Remove push clips (x3) that attach LH front wheel arch liner to vehicle.
  3. Pull front portion of LH wheelhouse liner away from front fascia.
  4. Remove the LH front wheel housing liner reinforcement from the front fascia.

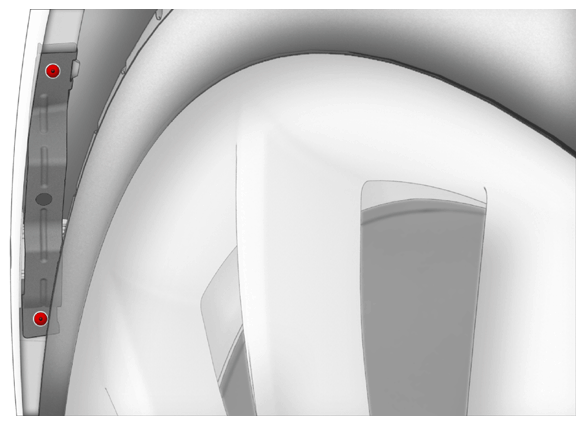

    G14738873Courtesy of TESLA, INC.

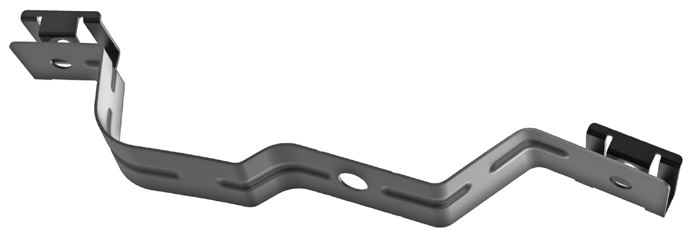

    G14738874Courtesy of TESLA, INC.
