Liner Stiffener- Front Wheel House - LH - Remove and Replace: Install

  1. Install the LH front wheel housing liner reinforcement from the front fascia.
  2. Move LH wheelhouse liner back into installed position.

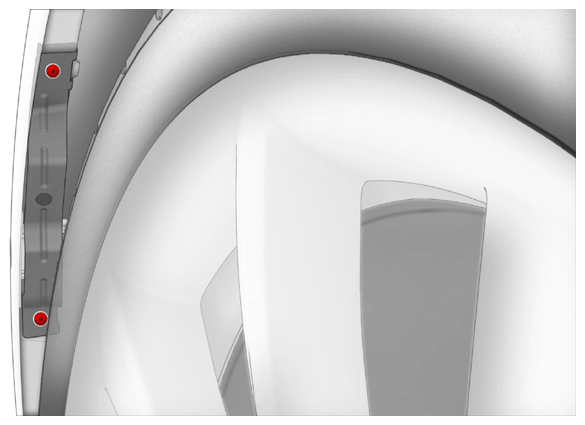

  3. Install the push clips (x3) that attach LH front wheel arch liner to vehicle.
    G14738875Courtesy of TESLA, INC.
  4. Turn steering wheel fully to center.
