Extrusion - Bumper Beam - Active Hood - Front - Remove and Replace: Remove

  1. Remove the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
  2. Remove the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .
  3. Disconnect the electrical harness from the LH and RH ped pro pressure tube sensor connectors.
    NOTE: Pull the red tab, and then pull the red tab again to disconnect the connector.
  4. Remove the LH and RH front bumper impact accelerometer sensors. See SENSOR - PRESSURE - DOOR - FRONT - LH (REMOVE AND REPLACE) .
  5. Remove the center front bumper impact accelerometer sensor. See SENSOR - IMPACT ACCELEROMETER - FRONT BUMPER - CENTER (REMOVE AND REPLACE) .
  6. Remove the front bumper beam foam from the front bumper beam.

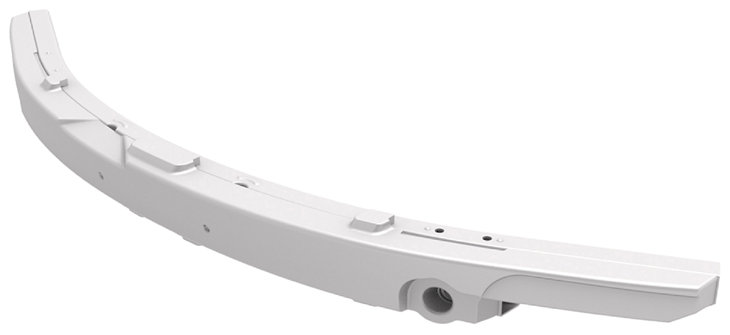

    G14738772Courtesy of TESLA, INC.
  7. Remove the bolts (x4) that attach the front bumper beam to the LH and RH crush cans.
  8. Use a pry bar to separate the front bumper beam from the LH and RH crush cans, and then remove the bumper beam from the vehicle.
    NOTE: Lightly tap the bumper beam with a dead blow hammer to assist with removal, as needed.

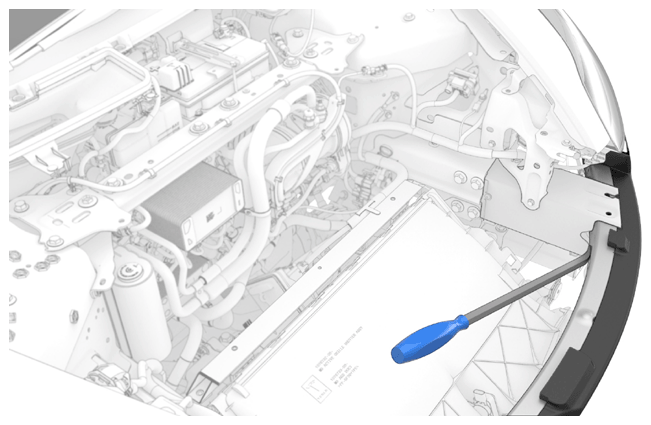

    G14738773Courtesy of TESLA, INC.
