Extrusion - Bumper Beam - Active Hood - Front - Remove and Replace: Install

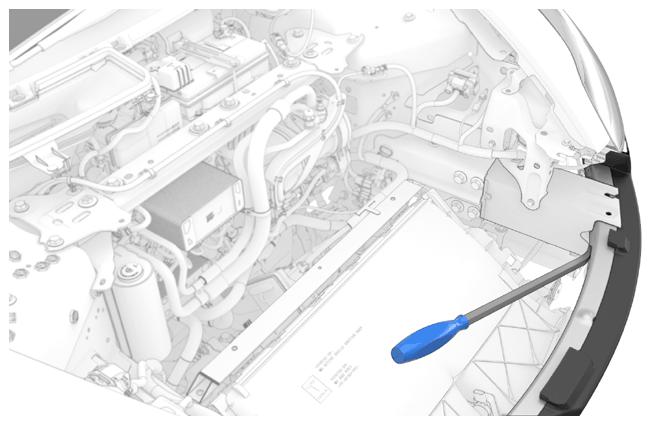

  1. Install the front bumper beam into the LH and RH crush cans.
    NOTE: Lightly tap the bumper beam with a dead blow hammer to assist with removal, as needed.
    G14738774Courtesy of TESLA, INC.
  2. Install the bolts (x4) that attach the front bumper beam to the LH and RH crush cans.

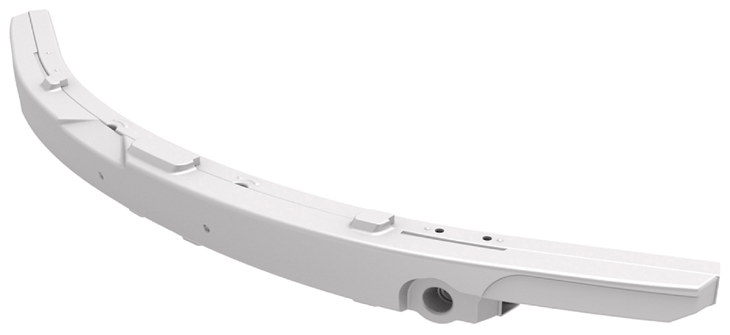

  3. Install the front bumper beam foam from the front bumper beam.
    G14738775Courtesy of TESLA, INC.
  4. Install the center front bumper impact accelerometer sensor. See SENSOR - IMPACT ACCELEROMETER - FRONT BUMPER - CENTER (REMOVE AND REPLACE) .
  5. Install the LH and RH front bumper impact accelerometer sensors. See SENSOR - PRESSURE - DOOR - FRONT - LH (REMOVE AND REPLACE) .
  6. Connect the electrical harness from the LH and RH ped pro pressure tube sensor connectors.
    NOTE: Push the red tab in to secure the connector.
  7. Install the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .
  8. Install the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
