Crush Can - Upper - Front - LH - Remove and Replace: Install

Install the LH front crush can into the LH front inner rail.
NOTE: Lightly tap the crush can with a dead blow harmer to assist with installation into the inner rail.

Courtesy of TESLA, INC.
Install the bolt that attaches the LH front fender support to the LH front crush can.
30 N.m (22.1 lbs-ft)

Courtesy of TESLA, INC.

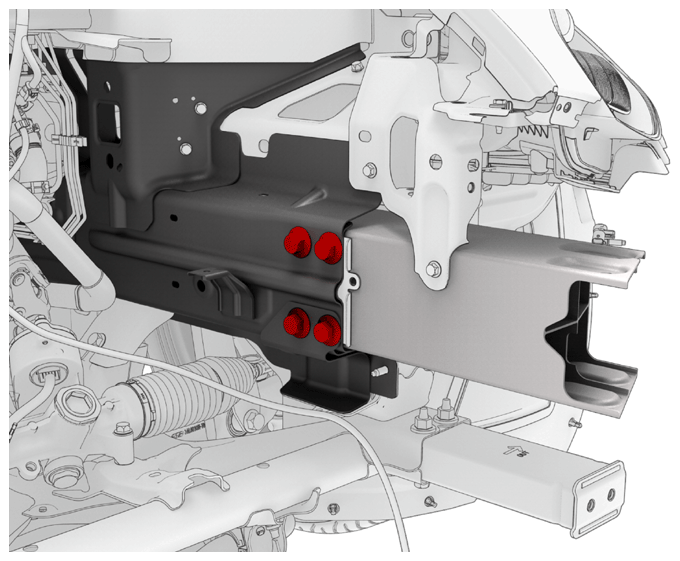

Install the bolts (x4) that attach the LH front crush can to the LH front inner rail.
90 N.m (66.4 ft-lbs)

Courtesy of TESLA, INC.
Fasten the clips (x3) that attach the electrical harness to the LH front crush can.

Courtesy of TESLA, INC.
Lift the condenser fan module off of the front subframe, and then install the bolts (x2) that attach the bottom of the condenser fan module to the ankle catcher.
10 N.m (7.4 ft-lbs)

NOTE: Lift the condenser fan module up to ease installation of the bolts.

Courtesy of TESLA, INC.
Install the front bumper with energy absorbers into the LH and RH crush cans, and then install the bolts (x4) that attach the front bumper to the crush cans.
75 N.m (55.3 ft-lbs)

Courtesy of TESLA, INC.
Connect the electrical harness to the RH front airbag sensor connector.

Courtesy of TESLA, INC.
Connect the electrical harness to the center front airbag sensor connector.

Courtesy of TESLA, INC.
Connect the electrical harness to the LH front airbag sensor connector.

Courtesy of TESLA, INC.
Install the front fascia assembly. See FASCIA - FRONT (REMOVE AND INSTALL) .
Install the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .
Install the hood latch cover. See COVER - HOOD LATCH (REMOVE AND REPLACE) .
Install the cabin intake duct. See DUCT - CABIN INTAKE (REMOVE AND REPLACE) .
Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
Remove the vehicle from the lift.
