Bracket - Fascia Side to Fender - LH - Remove and Replace: Remove

  1. Remove the LH and RH front wheels. See WHEEL (REMOVE AND INSTALL) .

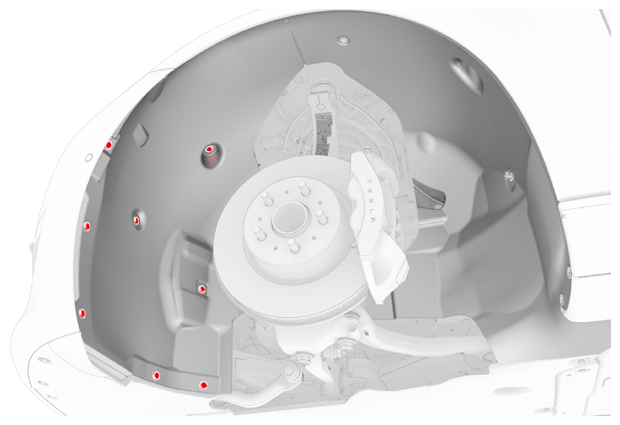

  2. Release the clips (x9) that attach the front portion of the LH wheel arch liner to the vehicle, and then move the liner aside to perform the following steps.
    NOTE:

    LH Shown, RH Similar; One Clip Is Behind Knuckle

    G14738741Courtesy of TESLA, INC.

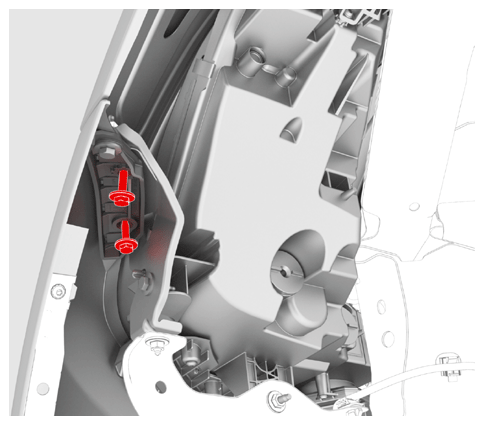

  3. Loosen the bolts that attach the front fascia to the LH front fender.

    4 N.m (2.9 ft-lbs)

    NOTE: LH shown, RH similar.
    G14738742Courtesy of TESLA, INC.

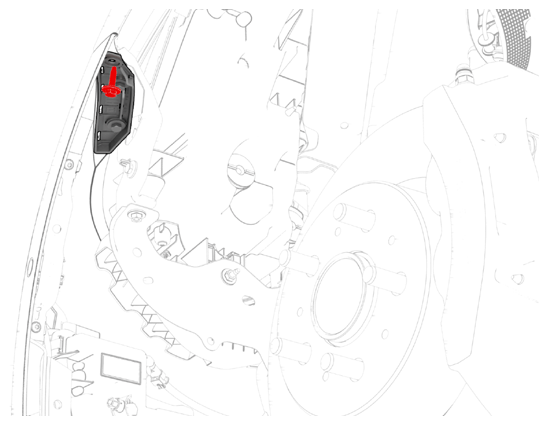

  4. Remove the bolt that attaches the front fascia to the LH front fender.

    3 N.m (2.2 ft-lbs)

    NOTE: LH shown, RH similar.
    G14738743Courtesy of TESLA, INC.
  5. Carefully pull aside the corner of the front fascia to gain access to the LH fascia side to fender bracket.

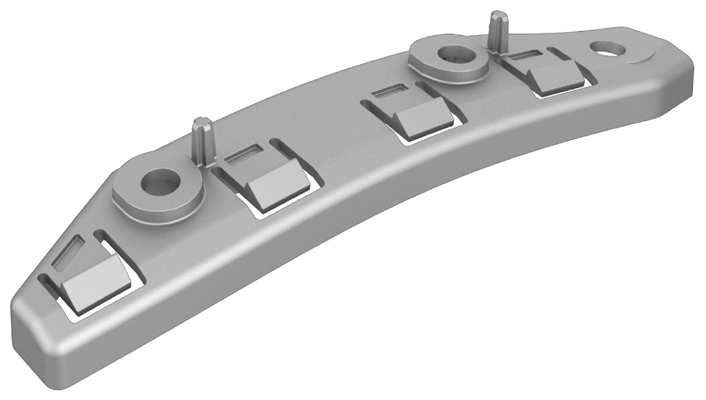

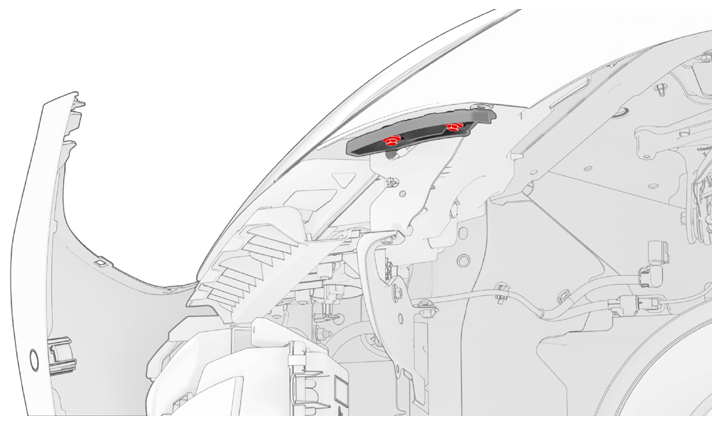

  6. Remove the bolts that attach the LH fascia side to fender bracket to the LH front fender, and then remove the bracket from the vehicle.
    NOTE: LH shown, RH similar.
    G14738744Courtesy of TESLA, INC.
    G14738745Courtesy of TESLA, INC.
