Power Trunk - Remove and Replace: Remove

  1. Remove the rear license plate and license plate bracket.
  2. Open the trunk.
  3. Disconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT)
  4. Remove power trunk trim. See TRIM - LID - POWER TRUNK (REMOVE AND REPLACE) .
  5. Remove the LH and RH rear fog/reverse lights. See LIGHT - FOG/REVERSE - REAR - LH (REMOVE AND REPLACE) .
  6. Remove the trunk exterior release switch. See SWITCH - EXTERIOR RELEASE - TRUNK (REMOVE AND REPLACE) .
  7. Remove the LH and RH license plate lights. See LIGHT - LICENSE PLATE (REMOVE AND REPLACE) .
  8. Remove the trunk latch. See LATCH - TRUNK (REMOVE AND REPLACE) .
  9. Remove and discard the bolts (x2) that attach the trunk electrical harness ground straps to the trunk lid.

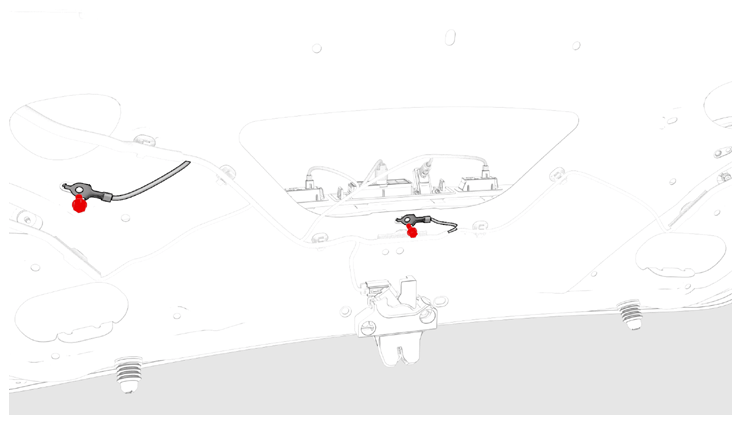

    G14739049Courtesy of TESLA, INC.
  10. Release the clips that attach the trunk electrical harness to the trunk lid.

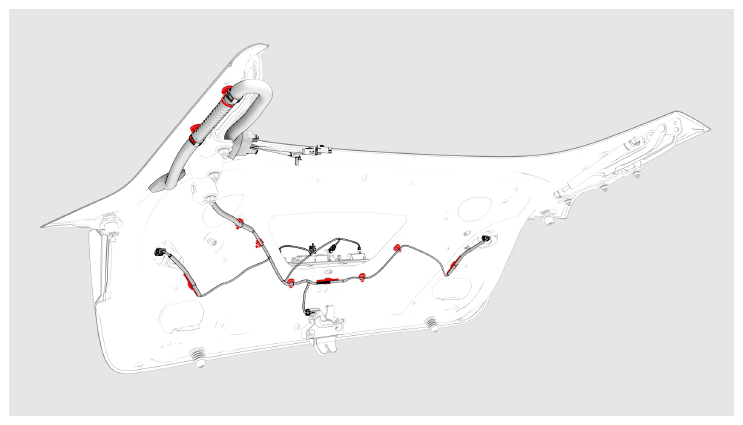

    G14739050Courtesy of TESLA, INC.
  11. Release the electrical harness boot, and then move the trunk electrical harness through the trunk lid bulkhead and out of the trunk lid.

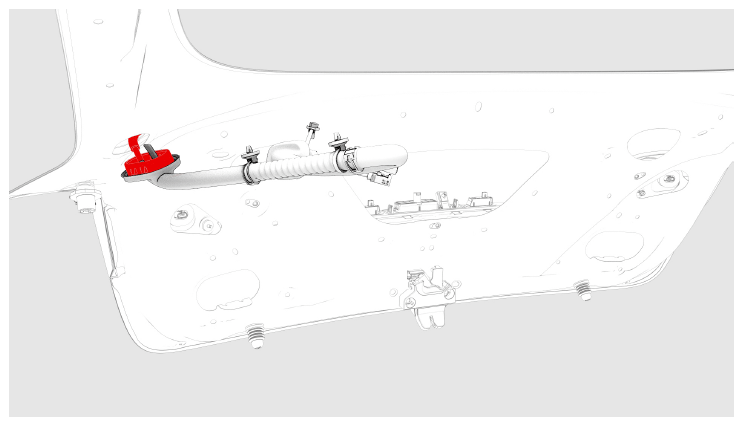

    G14739051Courtesy of TESLA, INC.
  12. Release the clips that attach the LH and RH bump stops to the trunk lid, and then remove the stops from the trunk lid.
    G14739052Courtesy of TESLA, INC.
  13. Unscrew the LH and RH over-slam bumpers from the trunk lid.

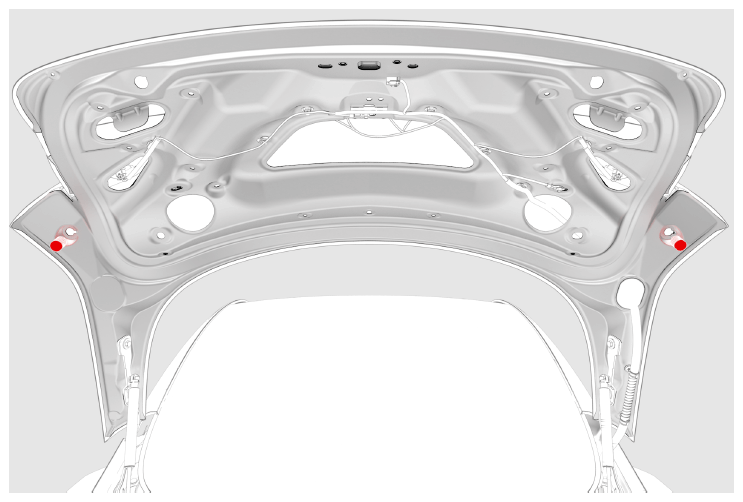

    G14739053Courtesy of TESLA, INC.
  14. With assistance, remove the bolts that attach the trunk lid to the trunk hinges, and then remove the trunk from the hinges.
    CAUTION: Remove the bolts furthest from the body first, lift up on the trunk lid, and while doing so, remove the bolts closest to the body.
    NOTE: LH Side Bolts Shown Below.

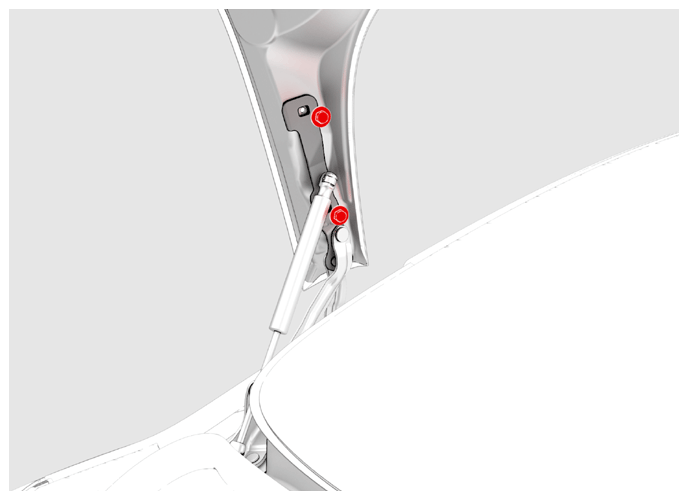

    G14739054Courtesy of TESLA, INC.
    NOTE: RH Side Bolts Shown Below.

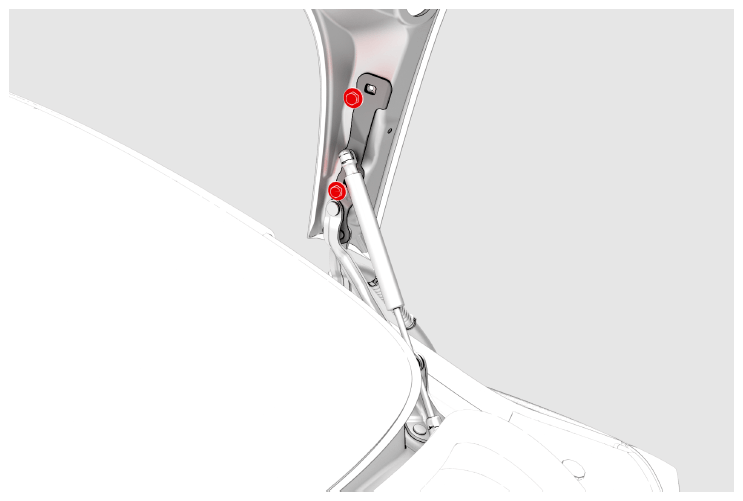

    G14739055Courtesy of TESLA, INC.

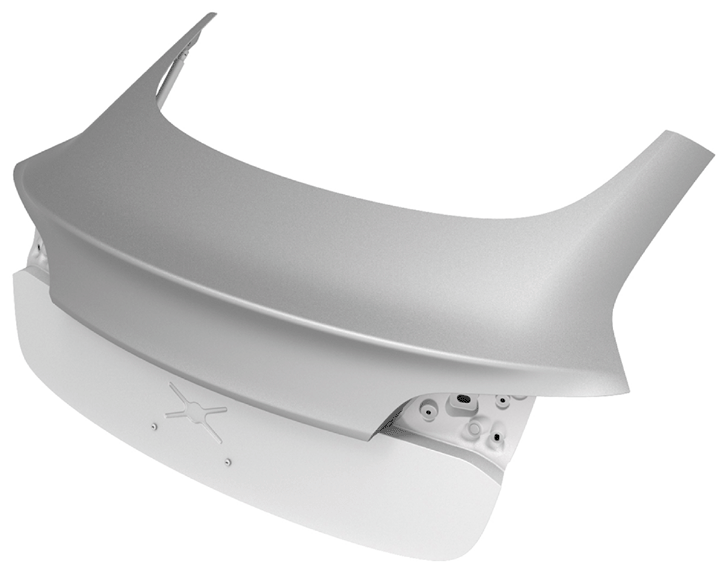

    G14739056Courtesy of TESLA, INC.
