Power Trunk - Remove and Install: Install

With assistance, install the trunk to the trunk hinges, and then install the bolts that attach the trunk lid to the trunk hinges.
CAUTION: Install the bolts closest to the body first, and then install the bolts furthest from the body.

NOTE: Hand tighten, but do not torque the bolts at this time.

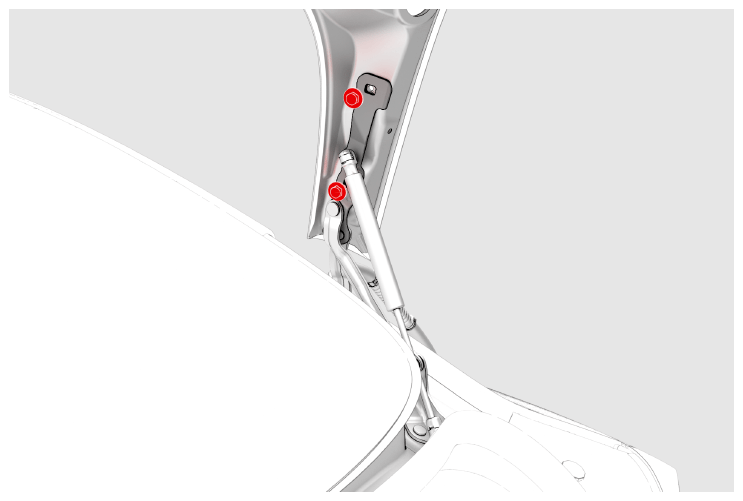

NOTE: LH Side Bolts Shown Below.

Courtesy of TESLA, INC.

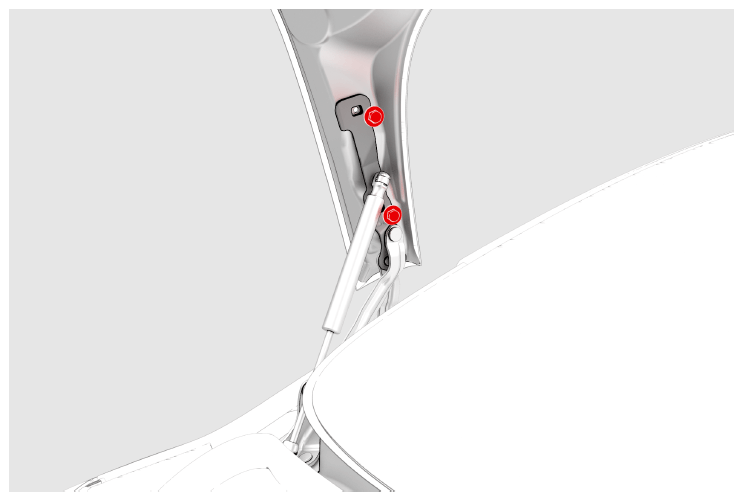

NOTE: RH Side Bolts Shown Below.

Courtesy of TESLA, INC.

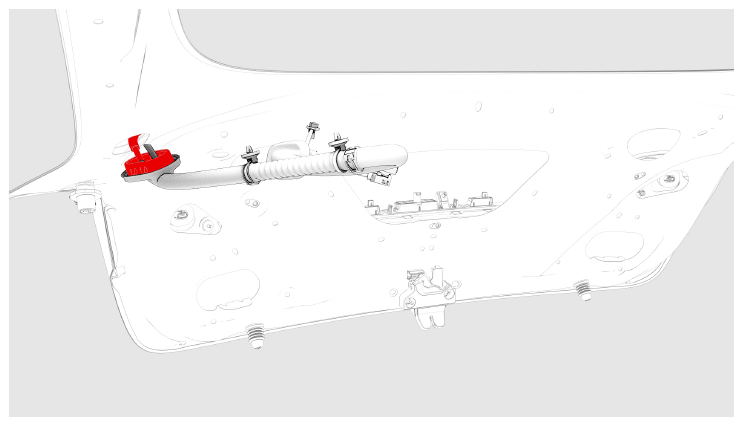

Move the electrical harness in through the trunk lid bulkhead, and attach the harness boot to the trunk lid.

Courtesy of TESLA, INC.

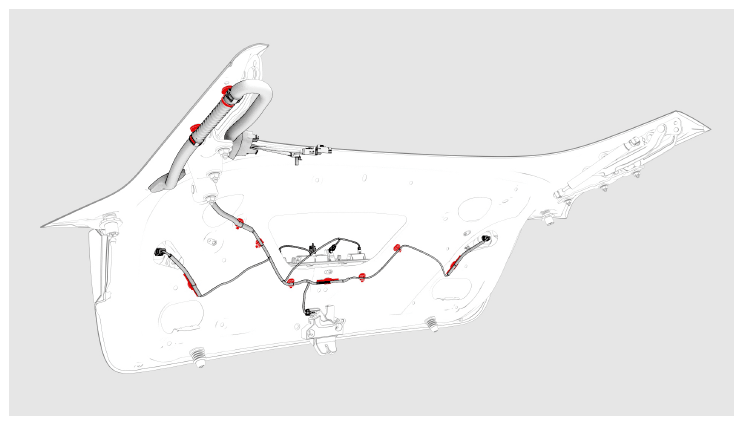

Fasten the clips that attach the trunk electrical harness to the trunk lid.

Courtesy of TESLA, INC.

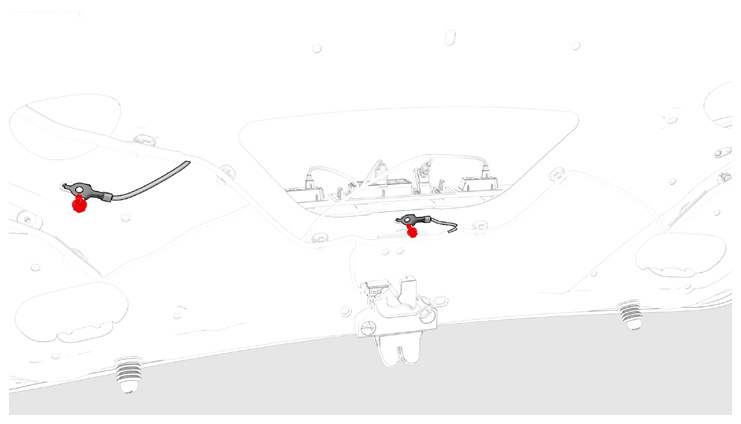

Install new bolts (x2) to attach the trunk electrical harness ground straps to the trunk lid.
8 N.m (5.9 ft-lbs)

Courtesy of TESLA, INC.
Install the LH and RH license plate lights. See LIGHT - LICENSE PLATE (REMOVE AND REPLACE) .
Install the trunk exterior release switch. See SWITCH - EXTERIOR RELEASE - TRUNK (REMOVE AND REPLACE) .
Torque the hinge bolts to specification.
24 N.m (17.7 ft-lbs)
Install the power trunk lid trim. See TRIM - LID - POWER TRUNK (REMOVE AND REPLACE) .
Use IPA wipes to thoroughly clean these locations on the trunk lid:
- Hinge bolts, washers and surrounding area
- Area between the trunk lid lower lip and trunk latch
- Trunk lid badge area above license plate location
Vigorously shake the vehicle color touch-up paint applicator for several minutes.
Apply a coat of touch-up paint to the discolored areas of the hinge bolts and washers, and allow at least 20 minutes to dry.
NOTE: Perform the remainder of this procedure while the touch-up paint dries.
