Hood - Remove and Install: Remove

  1. Remove the LH and RH hood gas struts. See GAS STRUT - HOOD - LH (REMOVE AND REPLACE) .
  2. Use tape to mark the mounting locations of the LH and RH hood hinges on the hood.

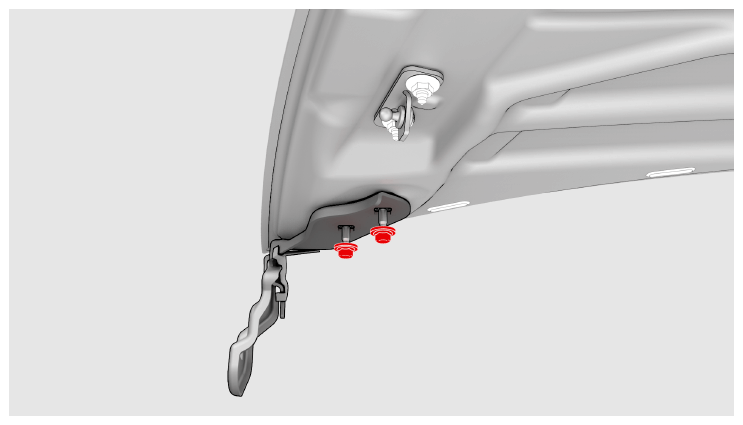

  3. With an assistant, remove the nuts that attach the hood assembly to the LH and RH hood hinges.
    G14739020Courtesy of TESLA, INC.

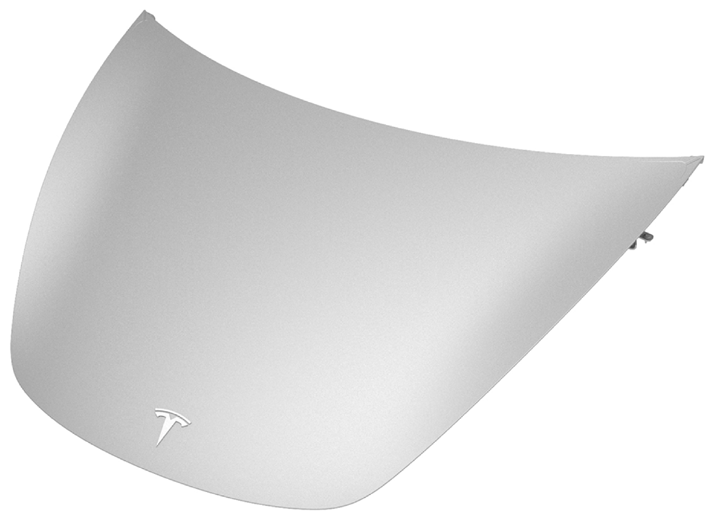

  4. With an assistant, remove the hood assembly from the vehicle and place it on a padded surface.
    G14739021Courtesy of TESLA, INC.
