Brace - Shock Tower (Heat Pump) - Remove and Replace: Install

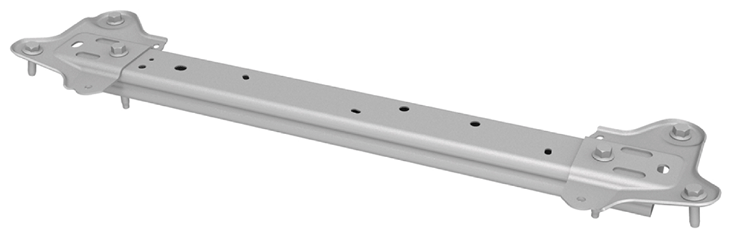

Install the shock tower brace.

Courtesy of TESLA, INC.

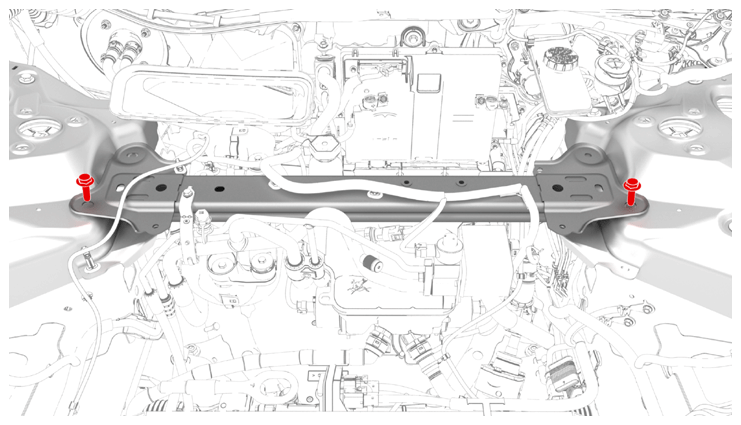

Install the LH and RH outer bolts that attach the shock tower brace to the body, and then remove the shock tower brace from the vehicle.
62 N.m (45.7 ft-lbs)

Courtesy of TESLA, INC.

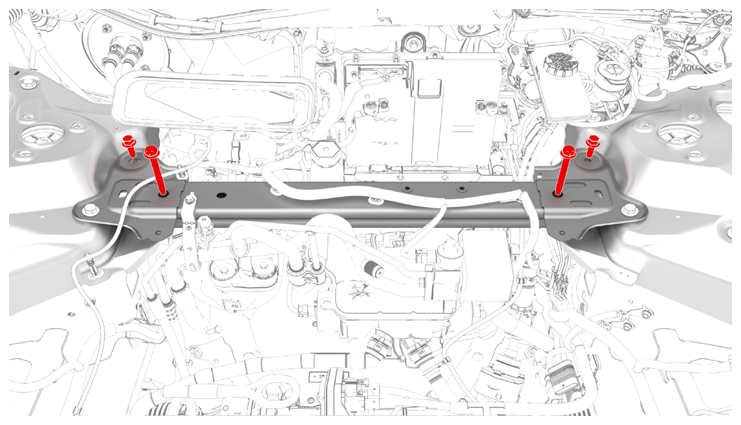

Install the LH and RH bolts that attach the shock tower brace to the body.
55 N.m (40.6 ft-lbs)

55 N.m (40.6 ft-lbs)

Courtesy of TESLA, INC.
Install the bolts securing the supermanifold to the shock tower brace.

Courtesy of TESLA, INC.
Install the compressor and the compressor assembly from the shock tower brace. See BRACKET - COMPRESSOR (HEAT PUMP) (REMOVE AND REPLACE) .
Install the 12V auxiliary battery. See 12V/LV BATTERY (REMOVE AND REPLACE) .
