Splash Guard - LH - Remove and Replace: Install

  1. Secure the new LH splash guard to the LH mud flap:

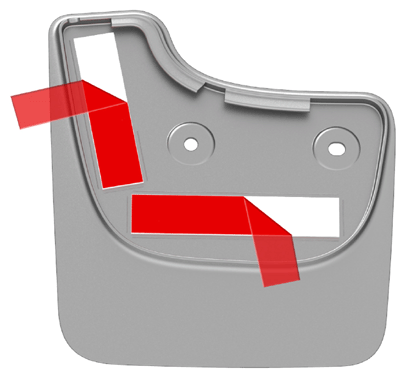

    1. Remove the adhesive backing from the new splash guard.
      G14739927Courtesy of TESLA, INC.

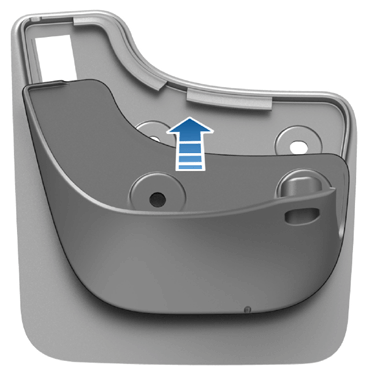

    2. Align the splash guard with the mud flap so that the holes are aligned.
      G14739928Courtesy of TESLA, INC.
    3. Apply pressure along the mud flap to ensure it is adhered to the splash guard.
  2. Install the LH splash guard and mud flap as an assembly (1st GENERATION KITS  ):

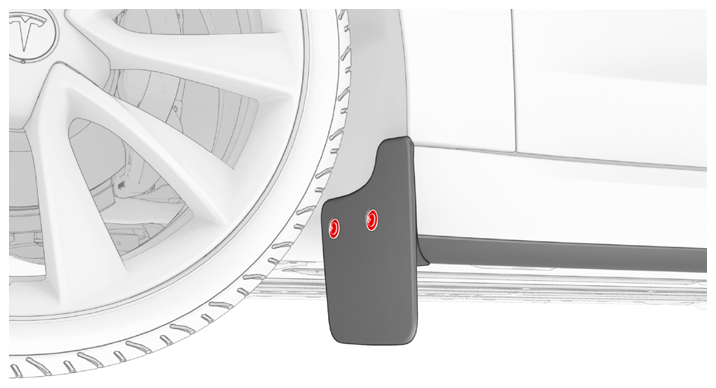

    1. Place washers over the screws, then install the screws and washers that secure the splash guard to the U-nuts in the front LH wheel arch liner.

      1.5 N.m (1.1 ft-lbs)

      G14739929Courtesy of TESLA, INC.

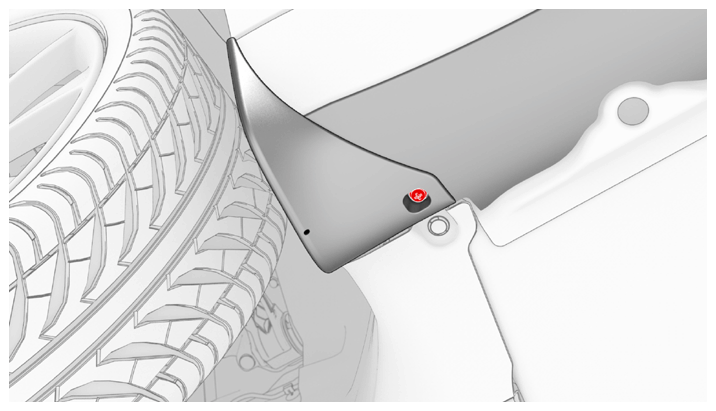

    2. Install the bolt that attaches the bottom of the mud flap to the lower rocker panel cover.

      5 N.m (3.7 ft-lbs)

      G14739930Courtesy of TESLA, INC.
  3. Install the LH splash guard and mud flap as an assembly (2nd GENERATION KITS  ):

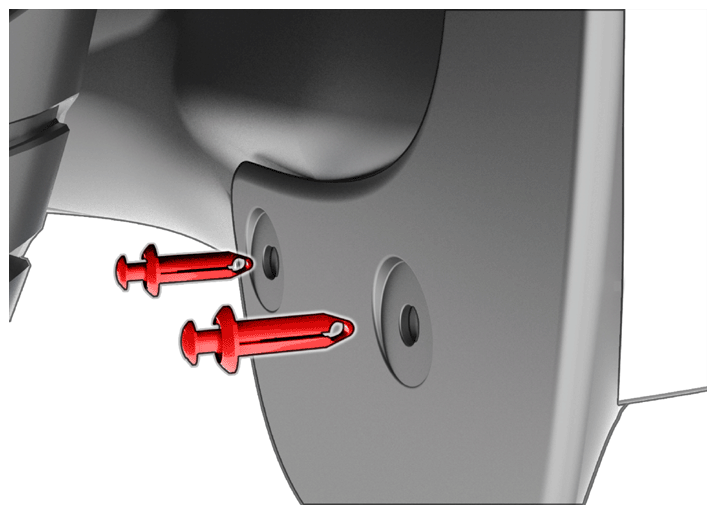

    1. Align the holes in the mud flap/splash guard to the holes in the front wheel arch liner, and then insert the opened (plastic rivet pulled out) push clips into the holes. Once the push clips are fully inserted, push the plastic rivets in to close the push clips and lock the mud flap/splash guard in place.
      G14739931Courtesy of TESLA, INC.
    2. Install the bolt that attaches the bottom of the mud flap to the lower rocker panel cover.

      5 N.m (3.7 ft-lbs)

      G14739932Courtesy of TESLA, INC.
  4. Ensure the splash guard is aligned with the body. Make adjustments as necessary.
