Strut Reinforcement - Hood - LH - Remove and Replace: Remove

  1. Remove the LH hood gas strut. See GAS STRUT - HOOD - LH (REMOVE AND REPLACE) .

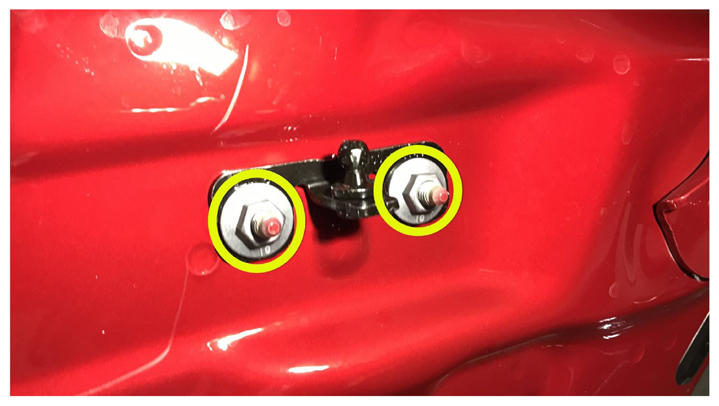

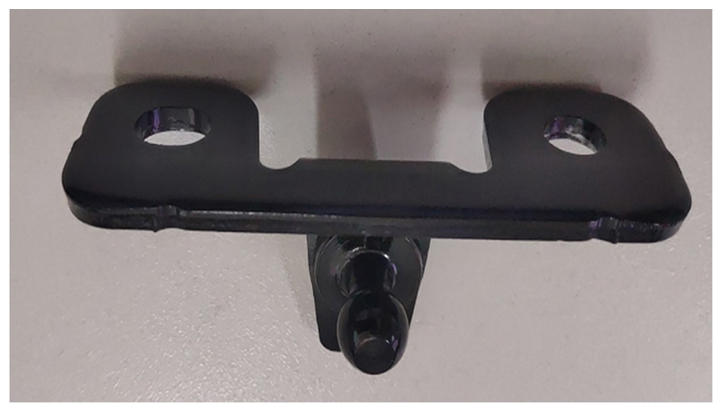

  2. Remove nuts that attach the LH hood strut bracket to hood, then remove the strut.
    G14739473Courtesy of TESLA, INC.
    G14739474Courtesy of TESLA, INC.
