C-Clips - Strut - Trunk - LH - Remove and Replace: Install

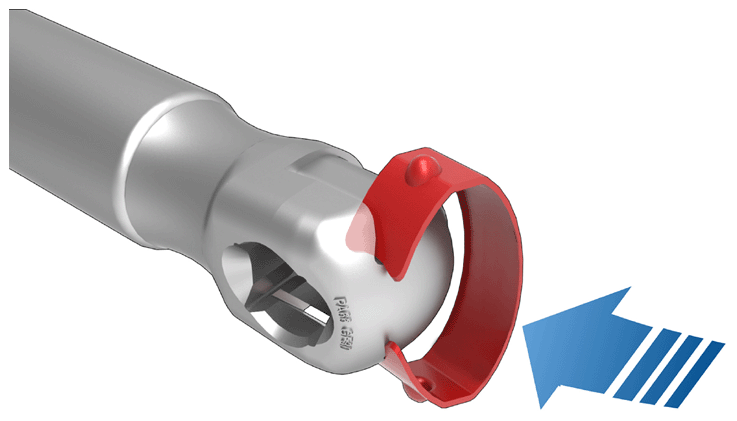

  1. Use snap ring pliers to install new clips (x2) on the gas strut.
    NOTE: Align the ends of the clip with the grooves on the strut, and then push the clip onto the strut until the clip is fully seated in the notch.
    NOTE: Trunk lid side of strut shown, body side similar.
    G14739414Courtesy of TESLA, INC.
  2. Clean the strut ball studs on the hood mount and hood hinge (x2) with a clean rag.

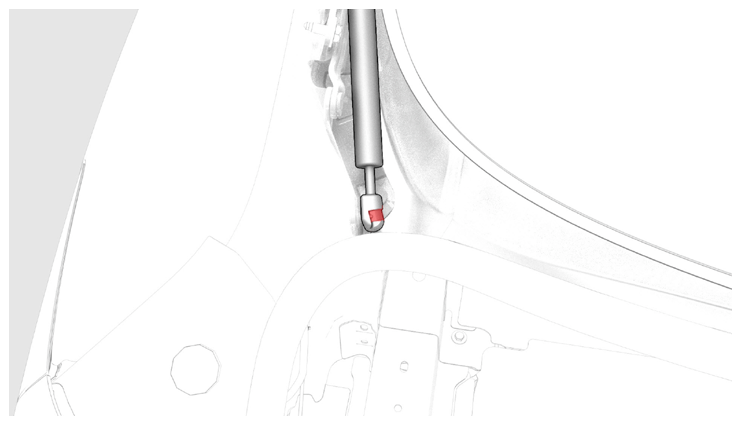

  3. Position the LH trunk gas strut on the body side hinge ball stud, and then install the clip that attaches the strut to the hinge.
    G14739415Courtesy of TESLA, INC.

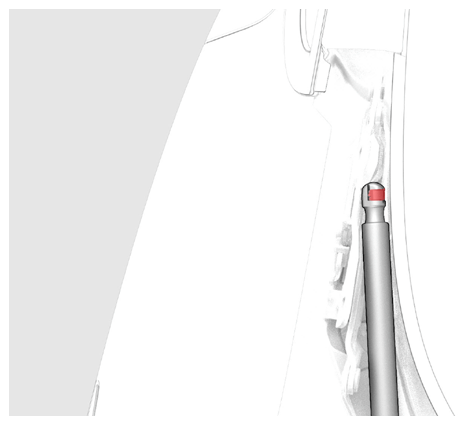

  4. Position the LH trunk gas strut on the trunk lid side hinge ball stud, and then install the clip that attaches the strut to the hinge.
    G14739416Courtesy of TESLA, INC.
  5. Remove the prop from the trunk.
  6. Close and open the trunk 3 times to verify proper gas strut installation.
